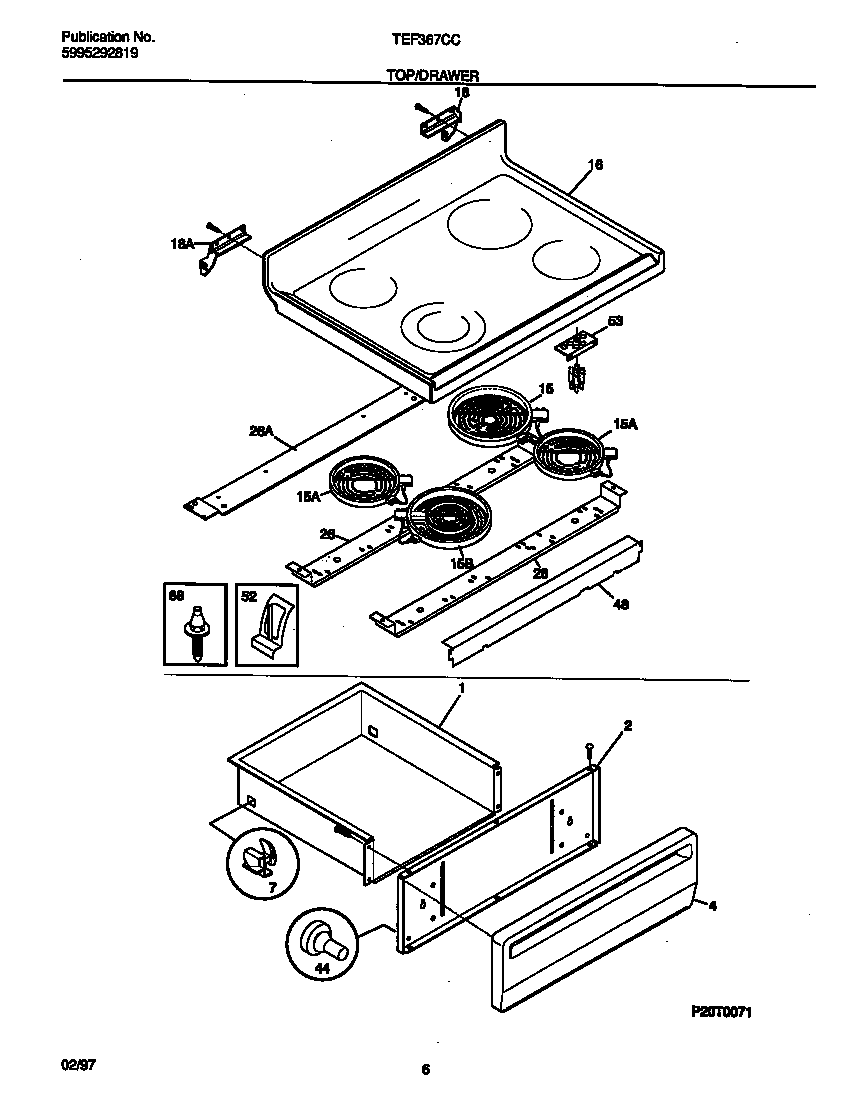

TEF367CCSD 04 – TOP/DRAWER

Products

Position	Product
*33846	RIVET-POP, WARING-PLATE
*33852	WCI 316001736
*33851	WCI 5309951550
*33848	WCI 316089600
*33850	131243700 Frigidaire Screw
*33849	WCI 5303280311
*33847	Screw,cup pt ,8-18 x 0.375 ,chrome
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316084405
4	316021109 Frigidaire Oven Screw
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318198834 Frigidaire Oven Element
15	WCI 316049702
15	318198817 Frigidaire Oven Element
16	WCI 316098107
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
26	WCI 316099101
26	WCI 316099201
44	3131903 Frigidaire Door/Drawer Bumper
48	WCI 316100200
52	Clip,element mtg
53	WCI 316099301
88	316099500 Frigidaire Oven Pin
