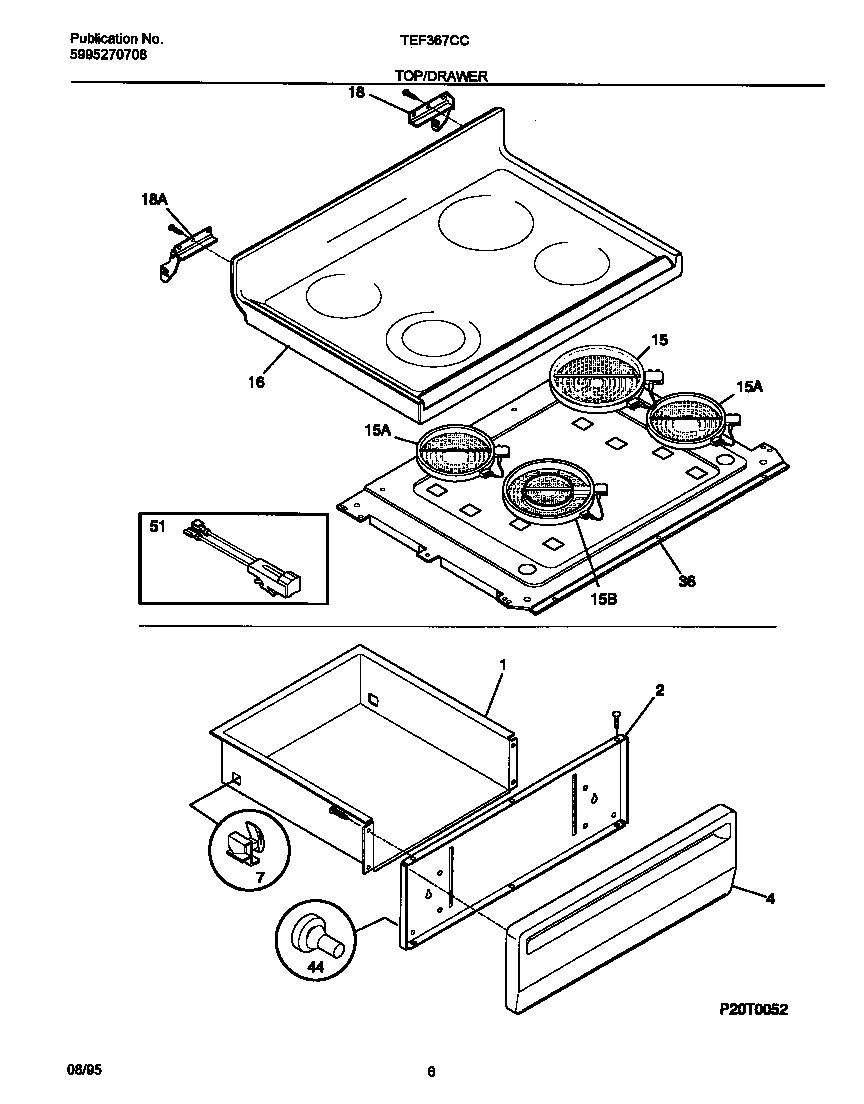

TEF367CCTA 04 – TOP/DRAWER

TEF367CCTA 04 – TOP/DRAWER

Written by

in

TEF367CCTA 04 – TOP/DRAWER

Products

PositionProduct
*28965RIVET-POP, WARING-PLATE
*28968WCI 5309951550
*28966WCI 5303281584
*28967131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
14LENS-LIGHT/LAMP, INDICATOR
15BWCI 316049701
15318198834 Frigidaire Oven Element
15A318198817 Frigidaire Oven Element
16WCI 316035503
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36BWCI 316041001
36AWCI 316023301
36WCI 316033610
443131903 Frigidaire Door/Drawer Bumper
51WCI 316034802
