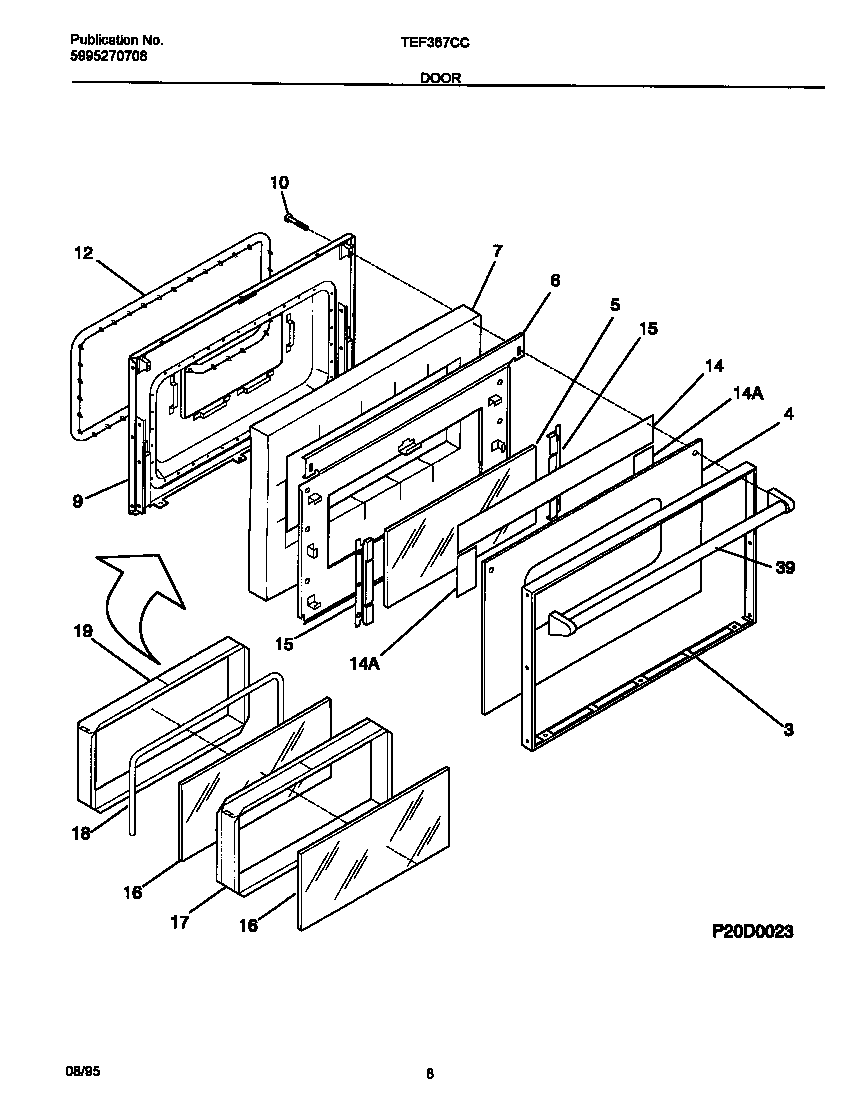

TEF367CCTA 05 – DOOR

Products

Position	Product
*28969	WCI 316065300
*28970	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*28972	WCI 5303269859
*28971	5303300265 Frigidaire Oven Screw
*28975	5303285179 Frigidaire Oven Door Screw
*28976	131243700 Frigidaire Screw
*28973	5303271648 Frigidaire Oven Screw
*28974	WCI 5303280311
3	WCI 316067803
4	WCI 316019712
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION, ALMOND
7	WCI 316076400
9	WCI 316066603
10	SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
12	5303131601 Frigidaire Oven Seal
14	ALUM FOIL-B/G GLASS
14A	5303208655 Frigidaire Reflector Assembly
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
39	WCI 316008309
