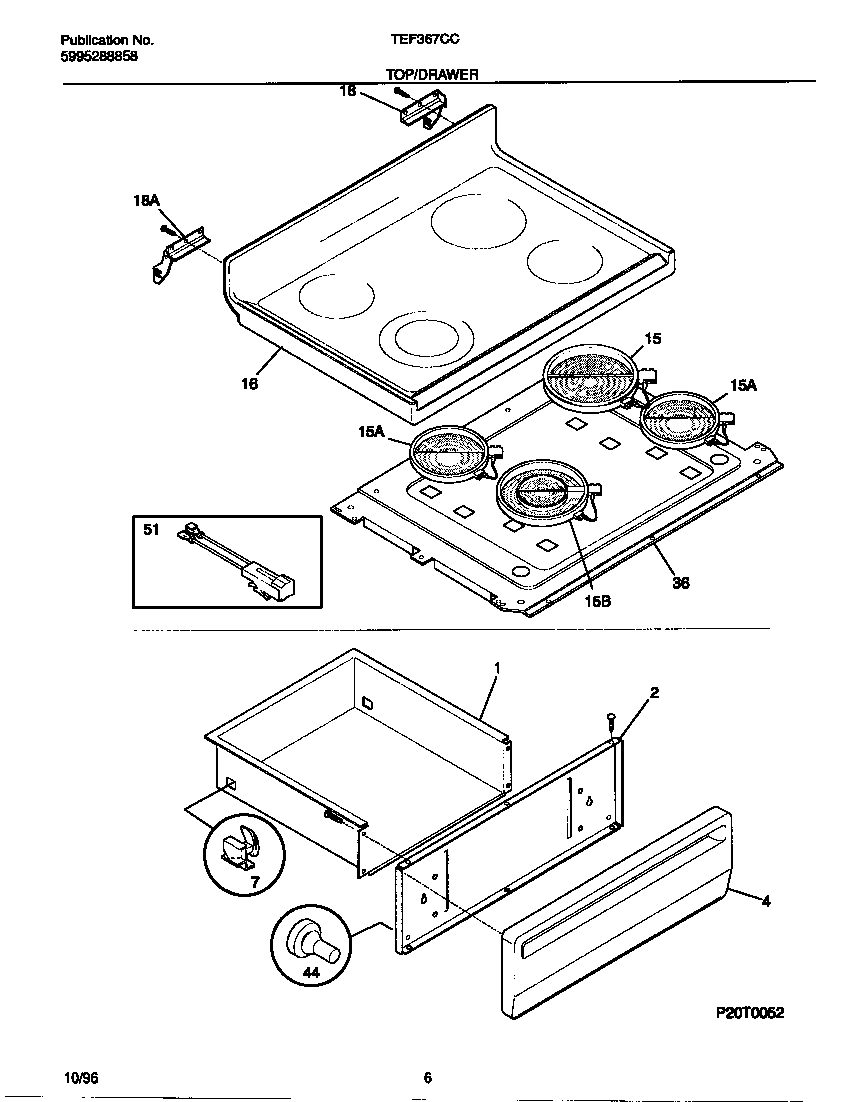

TEF367CCTC 04 – TOP/DRAWER

TEF367CCTC 04 – TOP/DRAWER

Written by

in

TEF367CCTC 04 – TOP/DRAWER

Products

PositionProduct
*78047131243700 Frigidaire Screw
*78048WCI 5309951550
*78045WCI 5303280311
*78046WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
15WCI 316049701
16WCI 316035503
18HINGE-MAIN TOP (LH)
18AHINGE-MAIN TOP (RH)
18BRIVET-POP, WARING-PLATE
36BWCI 316023301
36CWCI 316041001
36AWCI 316033610
443131903 Frigidaire Door/Drawer Bumper
51WCI 316034802
