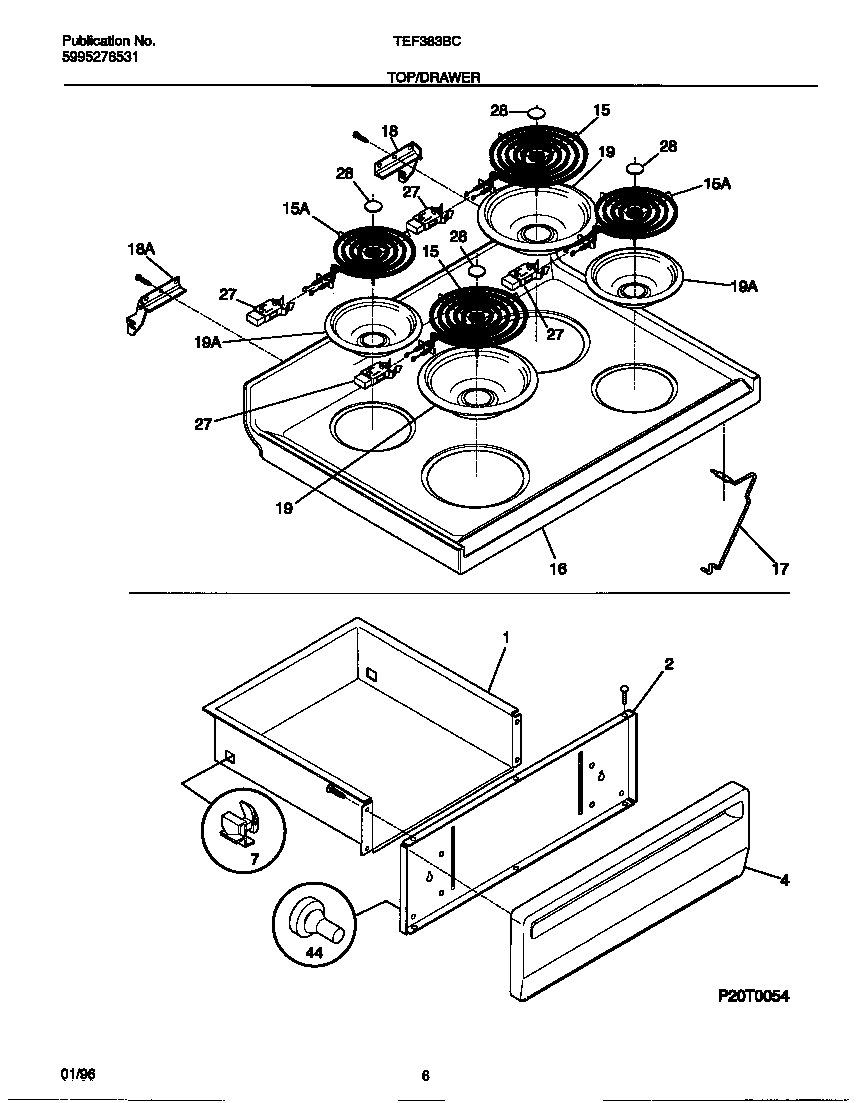

TEF383BCWB 04 – TOP/DRAWER

Products

Position	Product
*30605	RIVET-POP, WARING-PLATE
*30606	WCI 316001725
*30607	WCI 5303281584
*30608	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084405
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
15	316442301 Frigidaire Oven 8 Coil Element 2600W
16	316202388 Frigidaire Oven Maintop
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	A316222201 Frigidaire Oven Drip Bowl Assembly
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28B	5303017715 Frigidaire Medallion
28A	MEDALLION, STAINLESS STEEL, SURF ELEM
44	3131903 Frigidaire Door/Drawer Bumper
