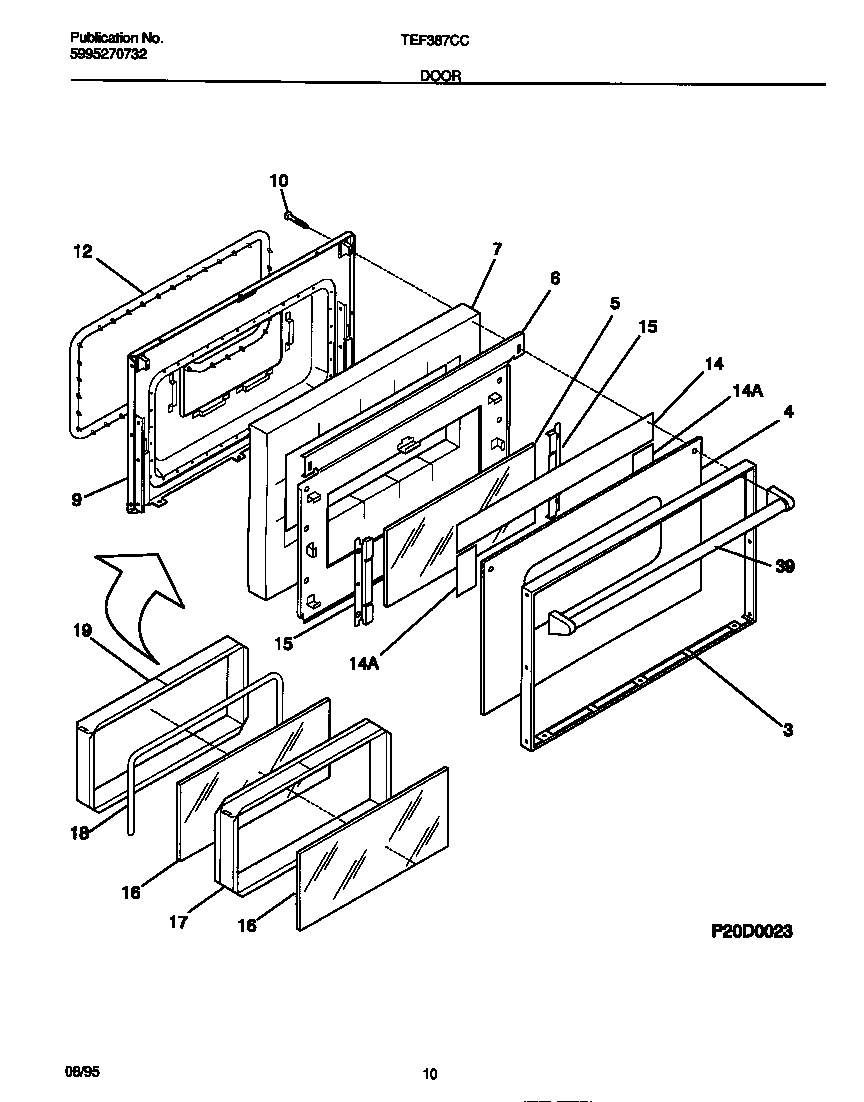

TEF387CCSA 05 – DOOR

TEF387CCSA 05 – DOOR

Written by

in

TEF387CCSA 05 – DOOR

Products

PositionProduct
*66089WCI 316065300
*66090SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*660915303300265 Frigidaire Oven Screw
*660945303285179 Frigidaire Oven Door Screw
*660925303271648 Frigidaire Oven Screw
*66095131243700 Frigidaire Screw
*66093WCI 5303280311
3WCI 316067804
4WCI 316019719
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION, WHITE
7WCI 316076400
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14A5303208655 Frigidaire Reflector Assembly
14ALUM FOIL-B/G GLASS
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
