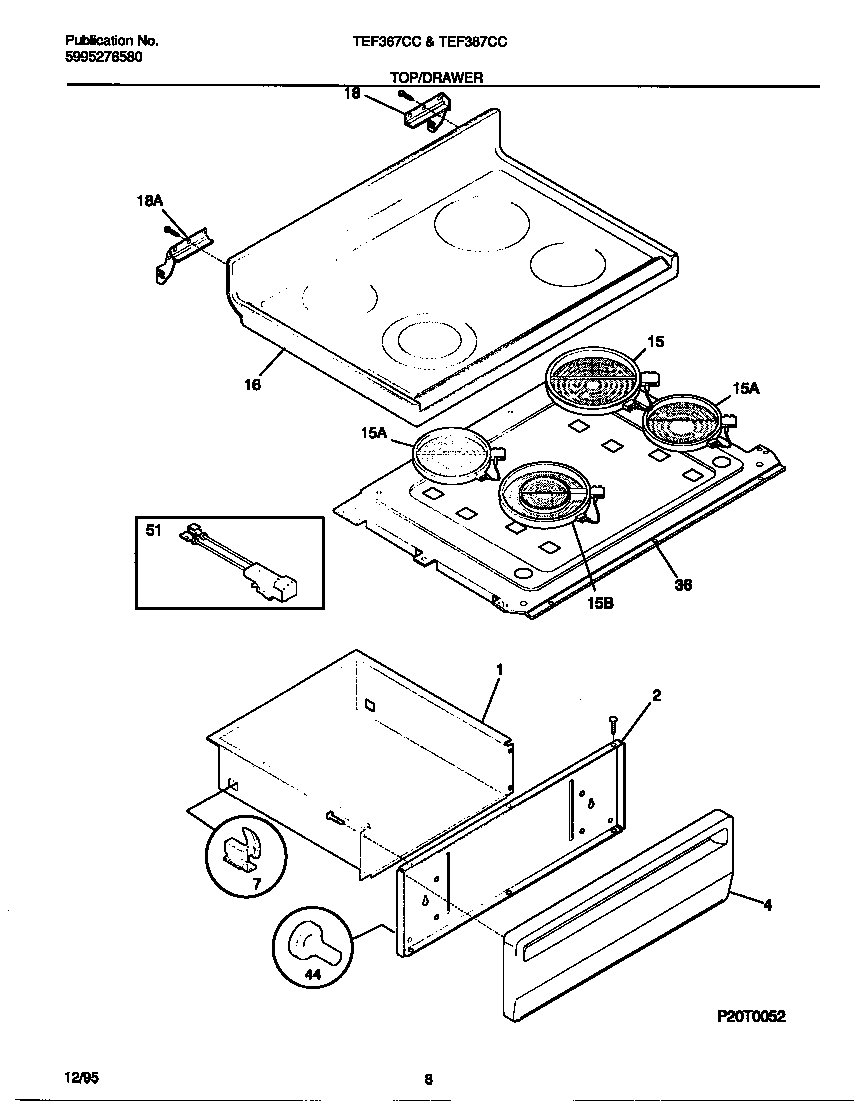

TEF387CCSB 05 – TOP/DRAWER

TEF387CCSB 05 – TOP/DRAWER

Written by

in

TEF387CCSB 05 – TOP/DRAWER

Products

PositionProduct
*85931RIVET-POP, WARING-PLATE
*85934WCI 5309951550
*85932WCI 5303281584
*85930LENS-LIGHT/LAMP, INDICATOR
*85933131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15WCI 316049701
15318198834 Frigidaire Oven Element
15318198817 Frigidaire Oven Element
16WCI 316035502
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
36CWCI 316041001
36BWCI 316023301
36AWCI 316033610
443131903 Frigidaire Door/Drawer Bumper
51WCI 316034802
