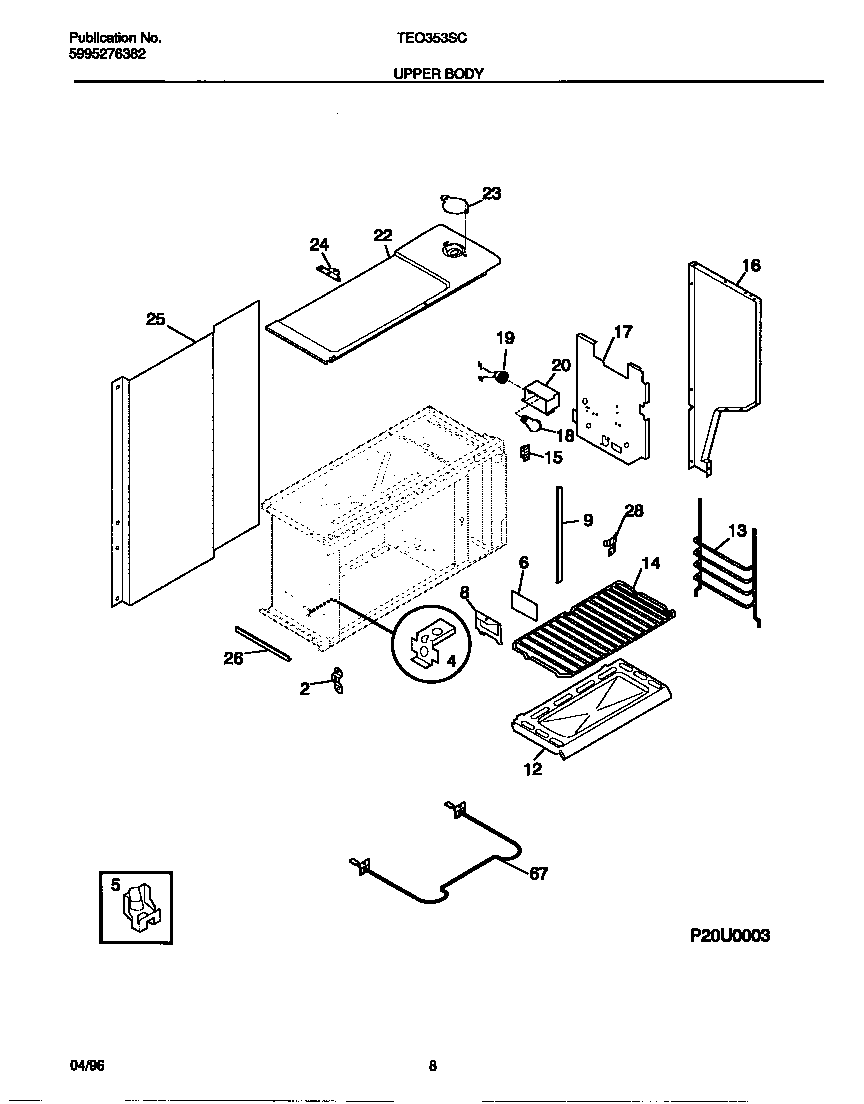

TEO353SCDA 05 – UPPER BODY

Products

Position	Product
*33410	WCI 3015591
*33412	5303300265 Frigidaire Oven Screw
*33411	WCI 3204440
*33413	FUSE-THERMO CUTOUT
*33408	WCI 3015588
*33409	WCI 3015590
2	HINGE-DOOR ASSY
4	WCI 08011665
5	5303284616 Frigidaire Range Bulb Clip Thermostat
6	GLASS-OVN LITE LENS
8	WCI 08011669
9	WCI 5303934092
12	OVEN BOTTOM
13	GLIDE-OVEN RACK
14	RACK-OVEN, FLAT
15	WCI 08011680
16	PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED)
16	PANEL-BODYSIDE, ALMOND, RH
17	SHIELD-WOOL
18	316538904 Frigidaire Oven Lamp Light
19	316116400 Frigidaire Oven Light Socket
20	BOX-LIGHT
22	PNL-TOP U/O
23	WCI 08067732
24A	HINGE-DOOR-TOP
24B	WCI 5308011685
25	WCI 3051236
26	WCI 5303293168
28	STRIKE U/O DOOR ALIGN
67	5303307010 Frigidaire Bake Element
