TEO356BCDA 05 – UPPER BODY

TEO356BCDA 05 – UPPER BODY

Written by

in

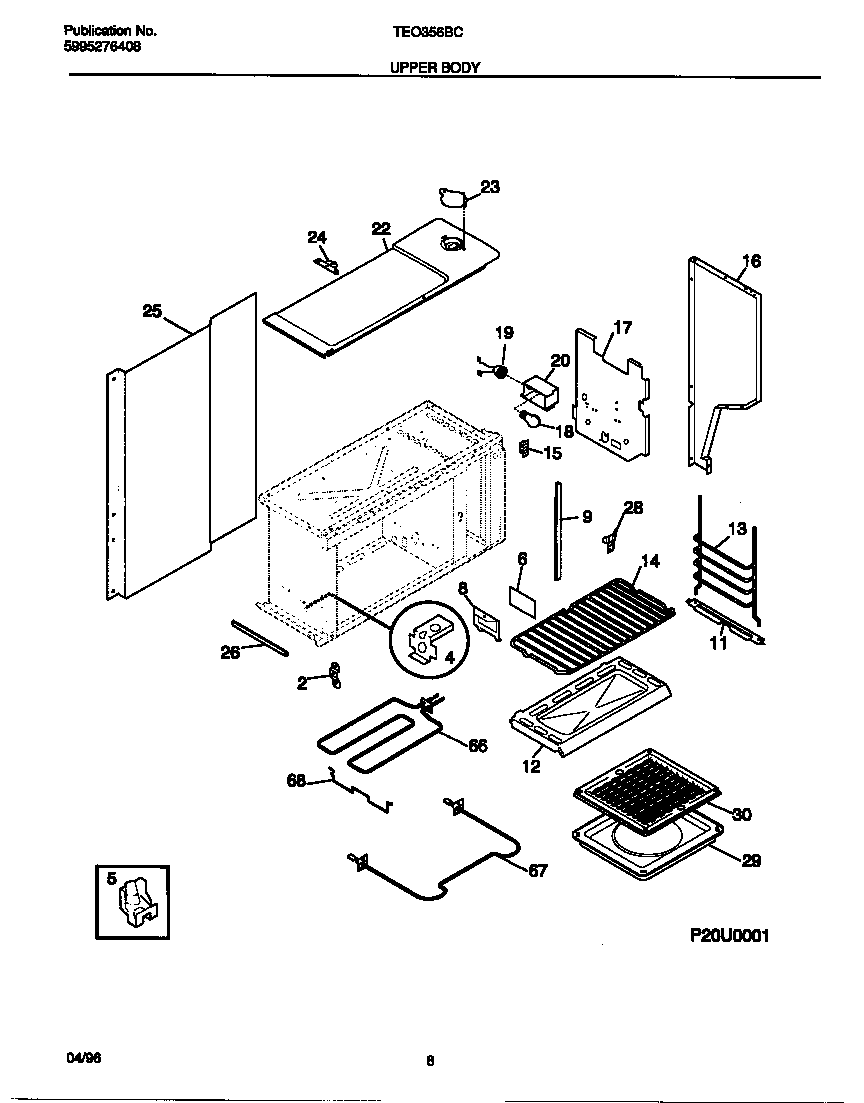

TEO356BCDA 05 – UPPER BODY

Products

PositionProduct
*75811WCI 3204440
*75814FUSE-THERMO CUTOUT
*75810WCI 3015591
*75808WCI 3015588
*75809WCI 3015590
*758125303300265 Frigidaire Oven Screw
*75813WCI 3051467
2HINGE-DOOR ASSY
4WCI 08011665
55303284616 Frigidaire Range Bulb Clip Thermostat
6GLASS-OVN LITE LENS
8WCI 08011669
9WCI 5303934092
12OVEN BOTTOM
13GLIDE-OVEN RACK
14RACK-OVEN, FLAT
15WCI 08011680
16PANEL-BODYSIDE, ALMOND, RH
16PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED)
17SHIELD-WOOL
18316538904 Frigidaire Oven Lamp Light
19316116400 Frigidaire Oven Light Socket
20BOX-LIGHT
22PNL-TOP U/O
23WCI 08067732
24WCI 316007002
25WCI 3051236
26WCI 5303293168
28STRIKE-DOOR
305304442087 Frigidaire Range Wall Oven Broil Pan and Insert
66WCI 3015187
675303307010 Frigidaire Bake Element
68WCI 3015584
