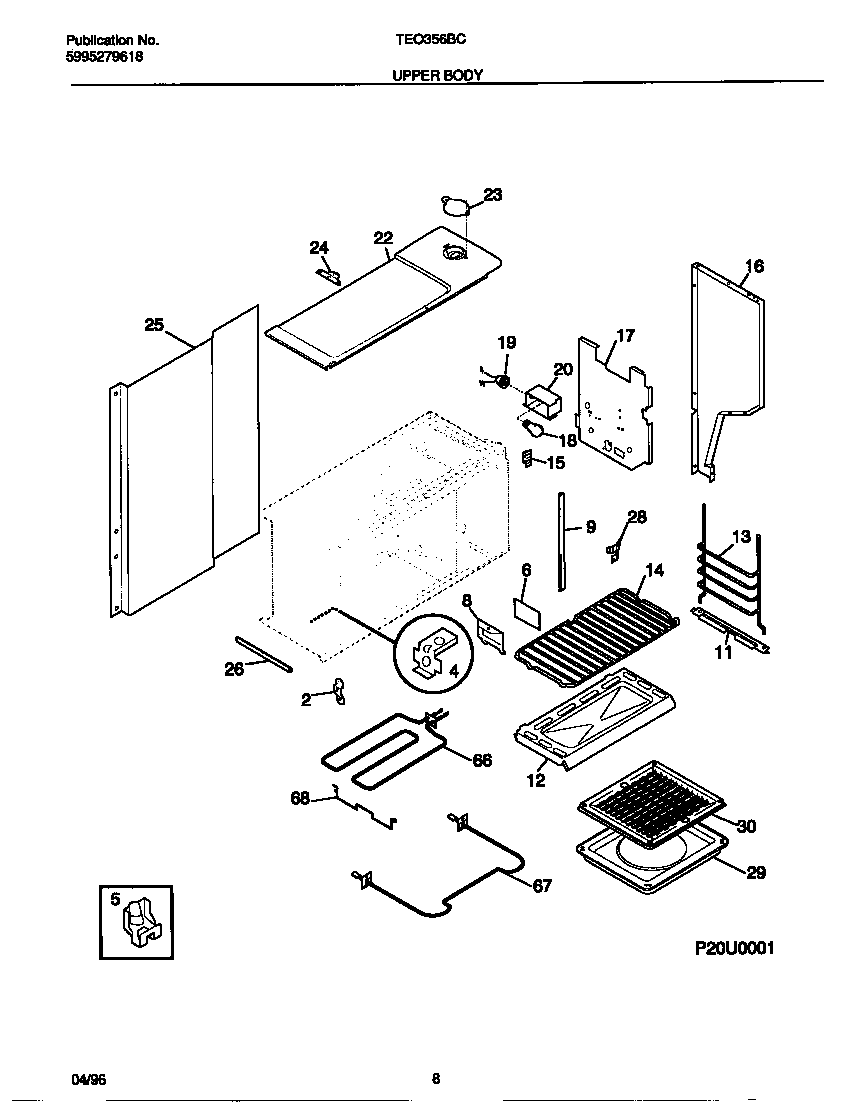

TEO356BCDB 05 – UPPER BODY
Written by
in
TEO356BCDB 05 – UPPER BODY
Products
Position
Product
*77894
5303300265 Frigidaire Oven Screw
*77896
FUSE-THERMO CUTOUT
*77892
WCI 3015591
*77890
WCI 3015588
*77891
WCI 3015590
*77893
WCI 3204440
*77895
WCI 3051467
2
HINGE-DOOR ASSY
4
WCI 08011665
5
5303284616 Frigidaire Range Bulb Clip Thermostat
6
GLASS-OVN LITE LENS
8
WCI 08011669
9
WCI 5303934092
12
OVEN BOTTOM
13
GLIDE-OVEN RACK
14
RACK-OVEN, FLAT
15
WCI 08011680
16
PANEL-BODYSIDE, ALMOND, RH
16
PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED)
17
SHIELD-WOOL
18
316538904 Frigidaire Oven Lamp Light
19
316116400 Frigidaire Oven Light Socket
20
BOX-LIGHT
22
PNL-TOP U/O
23
WCI 08067732
24
WCI 5303290130
25
WCI 5303290095
26
WCI 5303293168
28
STRIKE-DOOR
30
5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
66
WCI 3015187
67
5303307010 Frigidaire Bake Element
68
WCI 3015584
←
