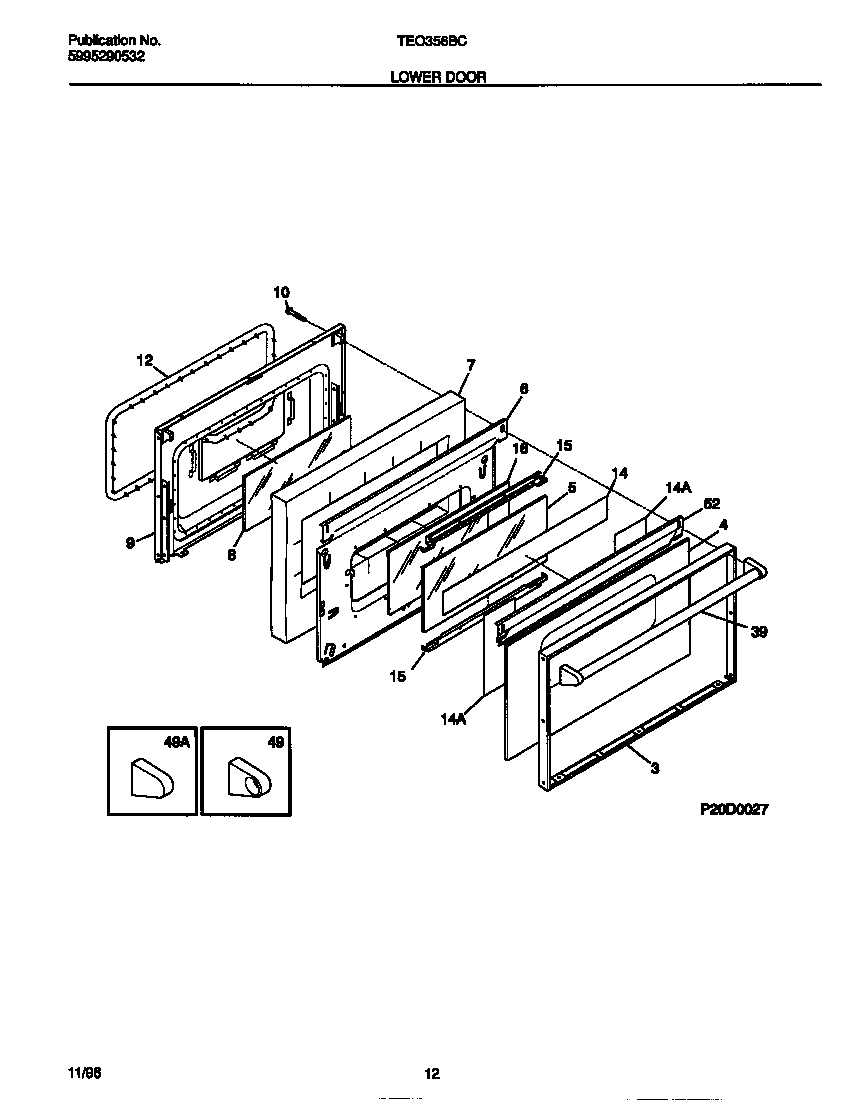

TEO356BCDD 07 – LOWER DOOR

TEO356BCDD 07 – LOWER DOOR

Written by

in

TEO356BCDD 07 – LOWER DOOR

Products

PositionProduct
*76141RIVET-POP, WARING-PLATE
*76142WCI 316065300
*76143SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*761445303285179 Frigidaire Oven Door Screw
3WCI 316067802
4WCI 316089000
5GLASS-OVEN DOOR, AIRWASH
6WCI 316088401
7WCI 316076400
8WCI 316088700
9WCI 316066610
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15WCI 316081401
16WCI 316085700
39BWCI 316089600
39AHANDLE-DOOR, OVEN
49WCI 5303307192
49WCI 5303307193
52WCI 316081303
