TEO356BCWA 04 – LOWER BODY

TEO356BCWA 04 – LOWER BODY

Written by

in

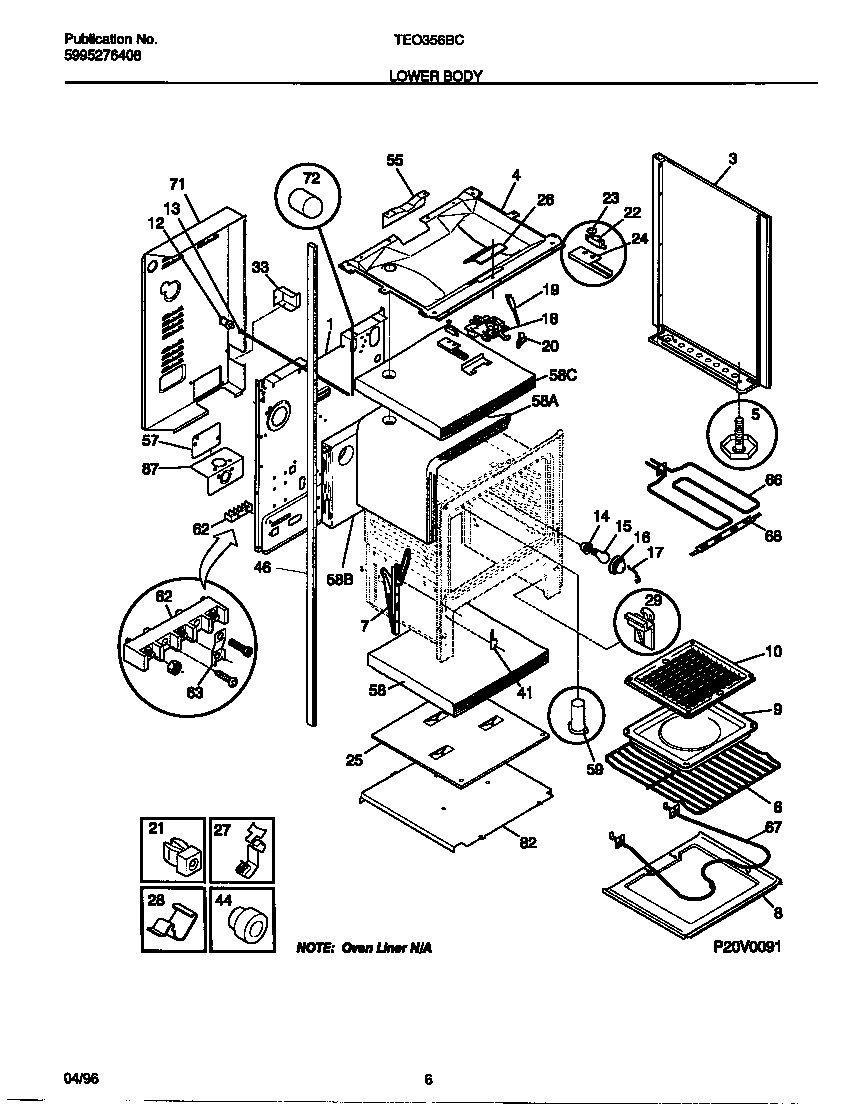

TEO356BCWA 04 – LOWER BODY

Products

PositionProduct
*75804316205500 Frigidaire Oven Nut
*75806WCI 5303051385
*758023203550 Frigidaire Oven Plug
*75805WCI 3201772
*75807WCI 5303314107
*75803316021105 Frigidaire Oven Screw
1WCI 316029410
3WCI 316081005
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081004
4WCI 5303271658
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7HINGE-DOOR ASSY
8SHIELD, OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18BSHIELD-LATCH (NON-ILLUSTRATED)
18AWCI 5303015361
19WCI 5303131357
20BWCI 08013188
20AWCI 3203218
21SPACER-BODYSIDE, (8)
22AWCI 08067781
22BSTUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3200848
26WCI 08067757
27WCI 08067754
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
46BTUBE-POST LH
46AWCI 5303208642
55COVER-FLUE
57COVER-ACCESS
58316403803 Frigidaire Insulation
58INSULATION, OVEN WRAPPER
58INSULATION, OVEN TOP
58WCI 316054200
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD-REAR WALL, LOWER
72COVER-LIGHT/SWITCH ROD
82PANEL-OVEN BOTTOM
87WCI 5303206618
