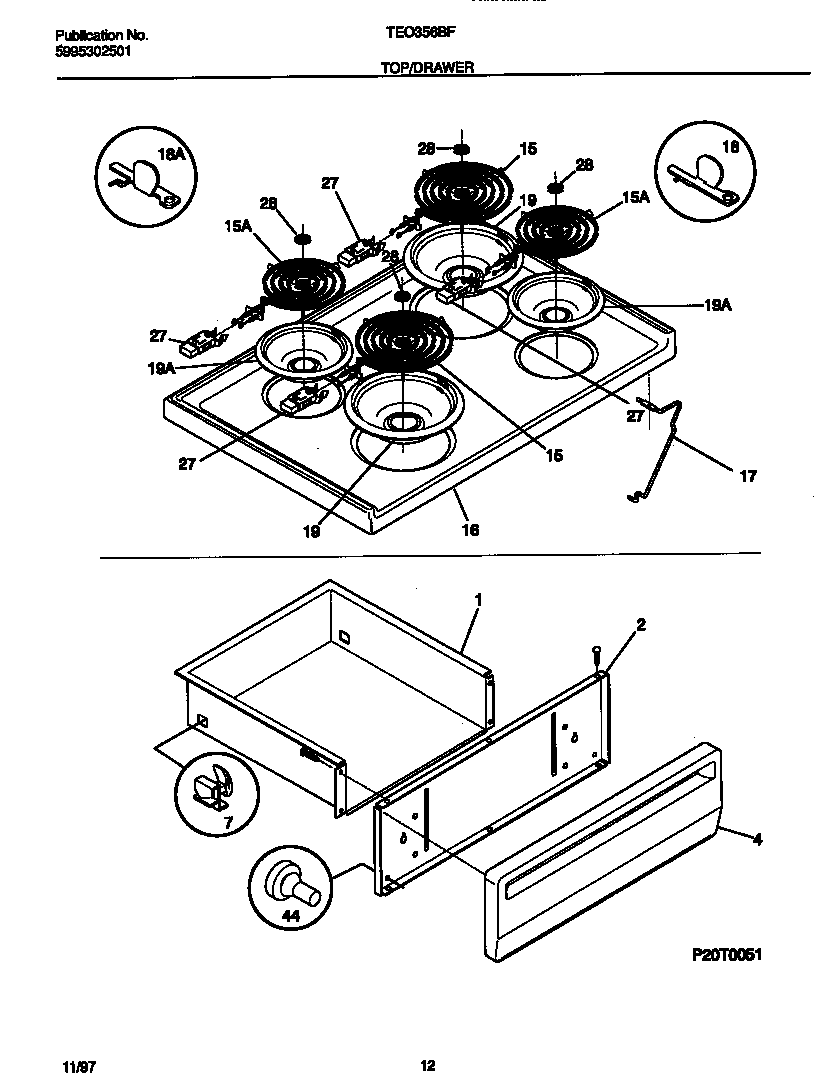

TEO356BFD1 06 – TOP/DRAWER

TEO356BFD1 06 – TOP/DRAWER

Written by

in

TEO356BFD1 06 – TOP/DRAWER

Products

PositionProduct
*28662WCI 3012765
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
4316021109 Frigidaire Oven Screw
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 3013512
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28WCI 5308067828
443131903 Frigidaire Door/Drawer Bumper
