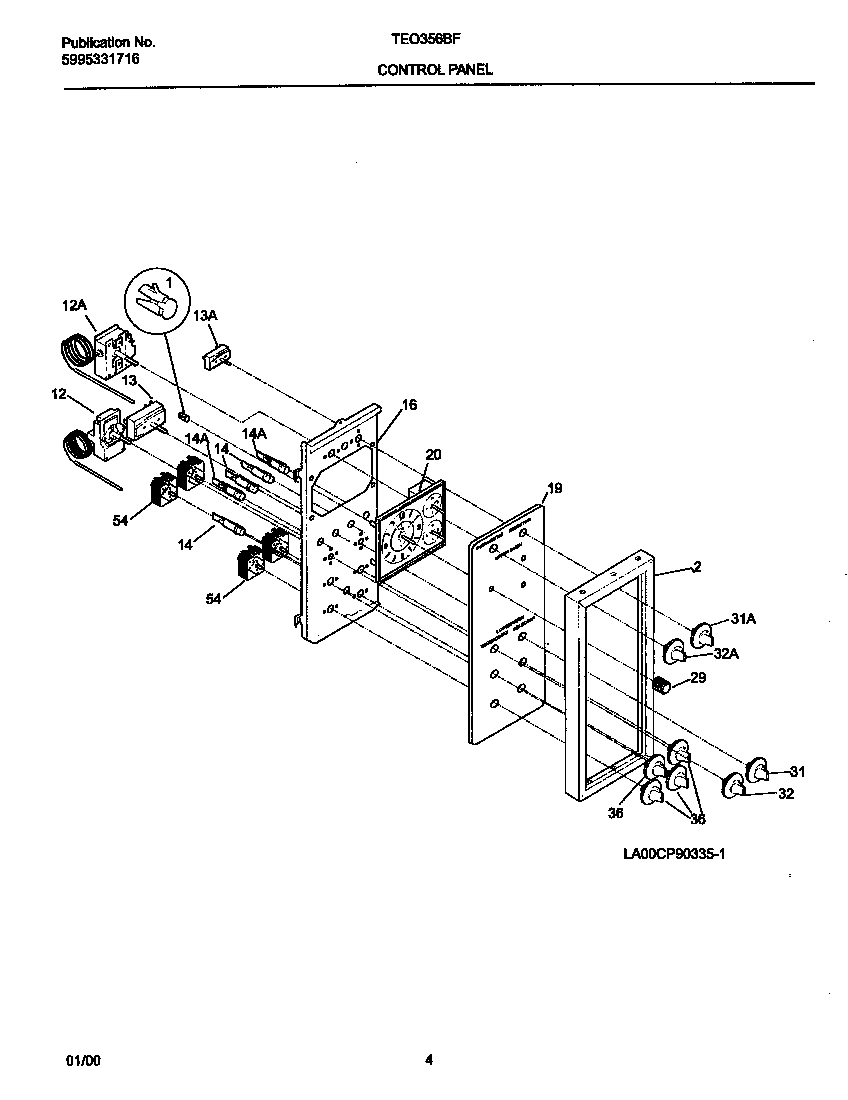

TEO356BFD3 03 – CONTROL PANEL

TEO356BFD3 03 – CONTROL PANEL

Written by

in

TEO356BFD3 03 – CONTROL PANEL

Products

PositionProduct
*09721316116000 Frigidaire Screw
*097235303285179 Frigidaire Oven Door Screw
*09720316021105 Frigidaire Oven Screw
*09724WASHER-BLACK
*09722Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3WCI 316081037
3WCI 316081036
4WCI 5303271658
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 318138800
10WCI 318126400
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 5303015361
19WCI 5303131357
20WCI 3203218
21SPACER-BODYSIDE, (8)
22WCI 08067781
22STUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH (NON-ILLUSTRATED)
25WCI 5303289914
26WCI 08067757
27WCI 08067754
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 5303289854
46TUBE-POST LH
46WCI 5303208642
57WCI 316081100
58316403803 Frigidaire Insulation
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
58WCI 316054200
59WCI 316073600
61WCI 316088001
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015804
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
83WCI 316054310
87316081200 Frigidaire Oven Bracket
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
184WCI 5303289902
2323203550 Frigidaire Oven Plug
235SHIELD-LATCH
256WCI 316085600
