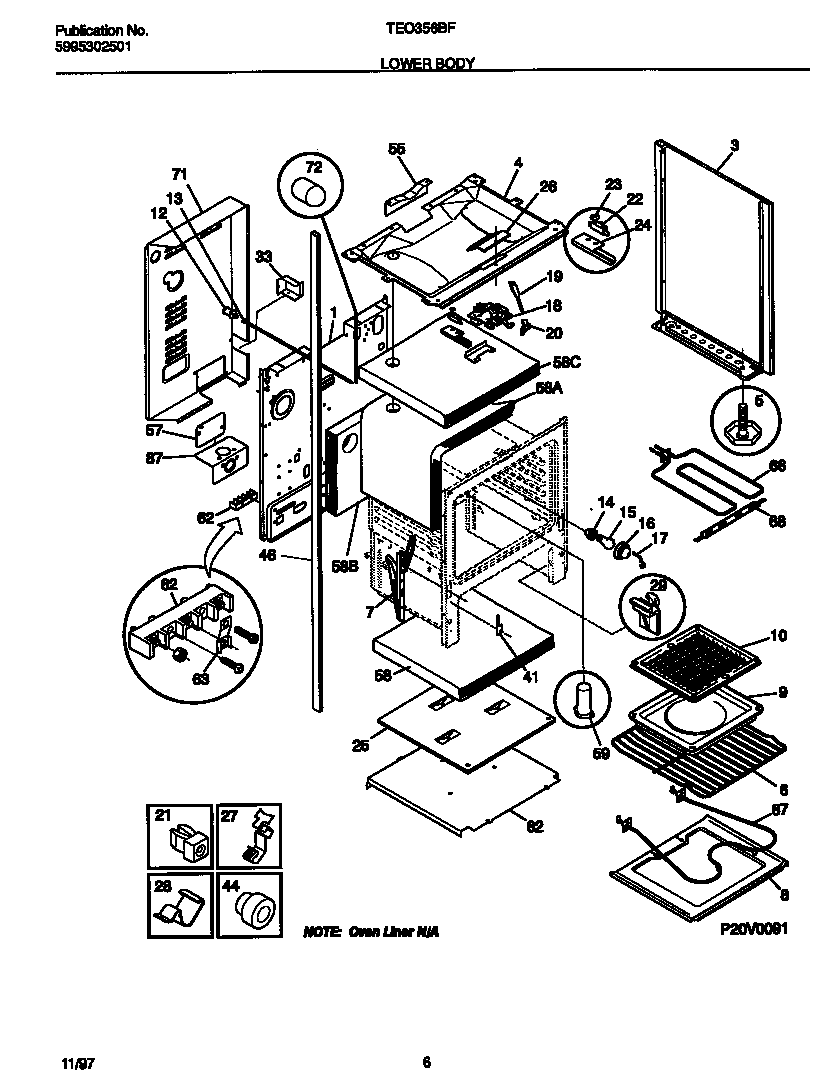

TEO356BFW1 04 – LOWER BODY

TEO356BFW1 04 – LOWER BODY

Written by

in

TEO356BFW1 04 – LOWER BODY

Products

PositionProduct
*286483203550 Frigidaire Oven Plug
*28650Screw,cup pt ,8-18 x 0.375 ,chrome
*28653WCI 316088001
*28647WCI 08067961
*286515303211311 Frigidaire Refrigerator Screw
*28646WCI 08067754
*28649316021105 Frigidaire Oven Screw
*28645SHIELD-HEAT
*28652WCI 5303314107
1WCI 316029412
3WCI 316081028
3WCI 316081029
4WCI 5303271658
5B316116000 Frigidaire Screw
5ASCREW-LEVELING
5DWCI 5303322477
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5EWCI 5303322478
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9Insert,broiler panOPTIONAL ACCESS0RY
10WCI 316081900
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
17316087500 Frigidaire Oven Retainer
18AWCI 5303015361
18BSHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20AWCI 3203218
20BWCI 08013188
21SPACER-BODYSIDE, (8)
22BSTUD SPACER (2) (NON-ILLUSTRATED)
22AWCI 08067781
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 5304403169
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
46BTUBE-POST LH
46AWCI 5303208642
55COVER-FLUE
57WCI 316081100
58WCI 316054200
58INSULATION, OVEN WRAPPER
58INSULATION, OVEN TOP
58316403803 Frigidaire Insulation
59WCI 316073600
62A5304409888 Frigidaire Oven Terminal Block with Hardware
62B316205500 Frigidaire Oven Nut
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82WCI 5303314229
87316081200 Frigidaire Oven Bracket
