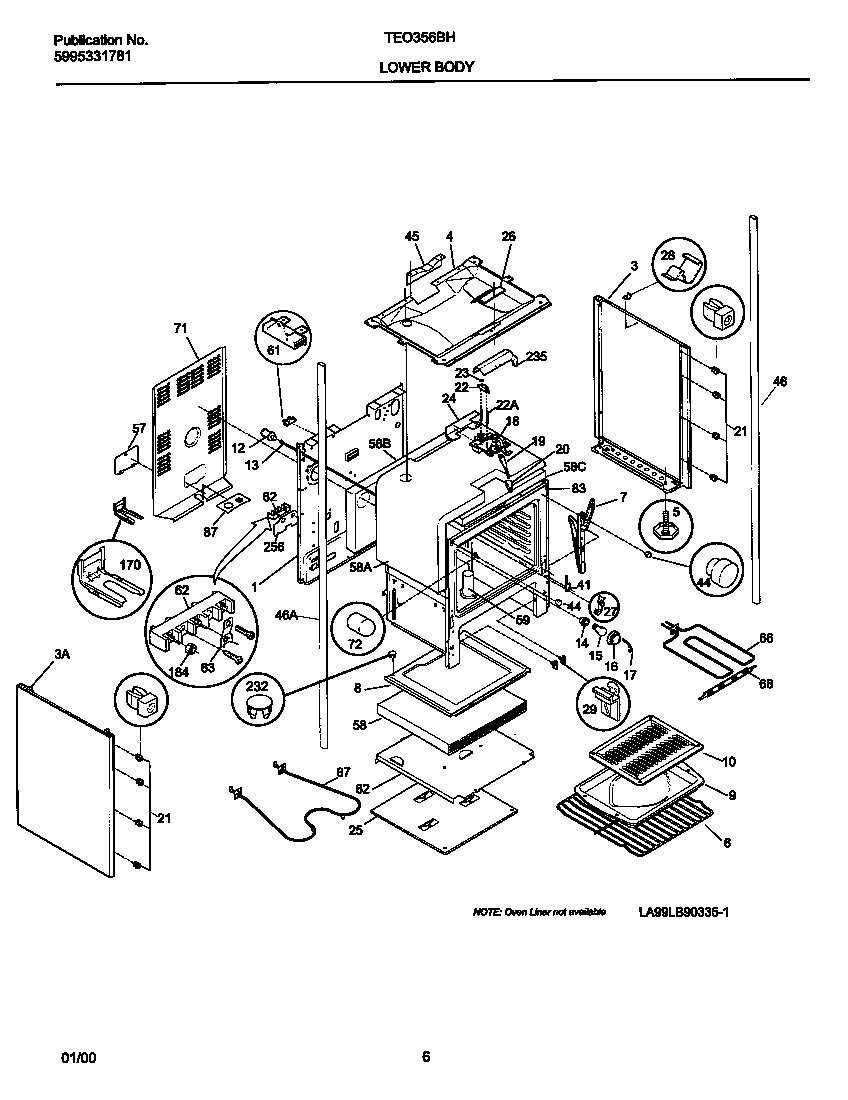

TEO356BHW2 04 – LOWER BODY

TEO356BHW2 04 – LOWER BODY

Written by

in

TEO356BHW2 04 – LOWER BODY

Products

PositionProduct
*30361316021105 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
4WCI 5303271658
5WCI 316107300
6316067902 Frigidaire Oven Rack
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 318138800
10WCI 318126400
14316116400 Frigidaire Oven Light Socket
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
15316538904 Frigidaire Oven Lamp Light
16WCI 5303013511
165304524341 Frigidaire Lens
17WCI 316066900
17316087500 Frigidaire Oven Retainer
18WCI 5303015361
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19WCI 5303131357
20WCI 3203218
21SPACER-BODYSIDE, (8)
22STUD SPACER (2) (NON-ILLUSTRATED)
22WCI 08067781
23FSTNR-PUSH ON
26WCI 08067757
275303935058 Frigidaire Oven Burner Receptacle Kit
27WCI 08067754
28WCI 5308067828
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
46TUBE-POST LH
46WCI 5303208642
57WCI 316081100
58WCI 316054200
58316403803 Frigidaire Insulation
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
59WCI 316073600
60316021109 Frigidaire Oven Screw
63PLATE=GROUND STRAP
66WCI 318050900
67318050800 Frigidaire Bake Element Assembly
68316203400 Frigidaire Oven Support
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
184WCI 5303289902
2323203550 Frigidaire Oven Plug
235BSHIELD-LATCH (NON-ILLUSTRATED)
235ASHIELD-LATCH
256WCI 316085600
