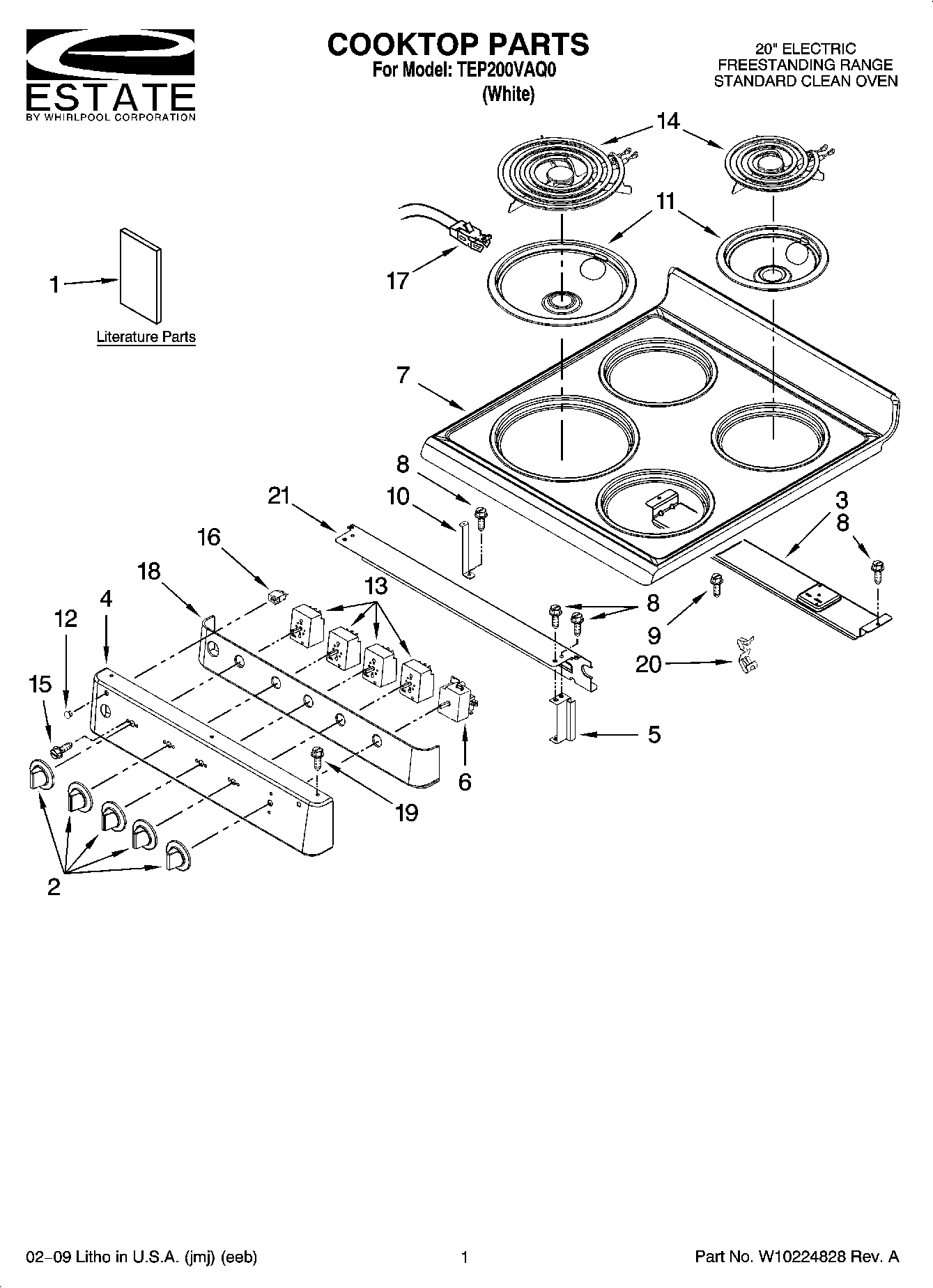

TEP200VAQ0 01 – COOKTOP PARTS
Written by
in
TEP200VAQ0 01 – COOKTOP PARTS
Products
Position
Product
1
Insallation Instructions
1
Safer Cooking Tips
1
Tech Sheet
1
Installation Instr (Template)
1
Use & Care Guide
2
WPW10183393 Whirlpool Knob
3
Support, Burner
4
Panel, Manifold
5
Bracket, Support
6
WP74009277 Whirlpool Thermostat Assembly
7
W10175582 Whirlpool Cooktop
8
W10837731 Whirlpool Screw Assembly
9
SCREW
10
Bracket, Cooktop
11
DRIP BOWL 8" W/HOLE CHROME
11
WPW10196406 Whirlpool 6" Chrome Drip Bowl
12
W11690131 Whirlpool Light Lens
13
SWITCH-IND
13
WPW10179654 Whirlpool Refrigerator Infinite Switch
14
WP9761346 Whirlpool Stove Surface Burner Element
14
WPW10345407 Whirlpool Surface Element
15
WP3400882 Whirlpool Screw
16
W10852510 Whirlpool Indicator Light
17
814399 Whirlpool Receptacle Kit
18
Foil, Panel
19
SCREW
20
98005642 Whirlpool Clip
21
Shield, Control
←
