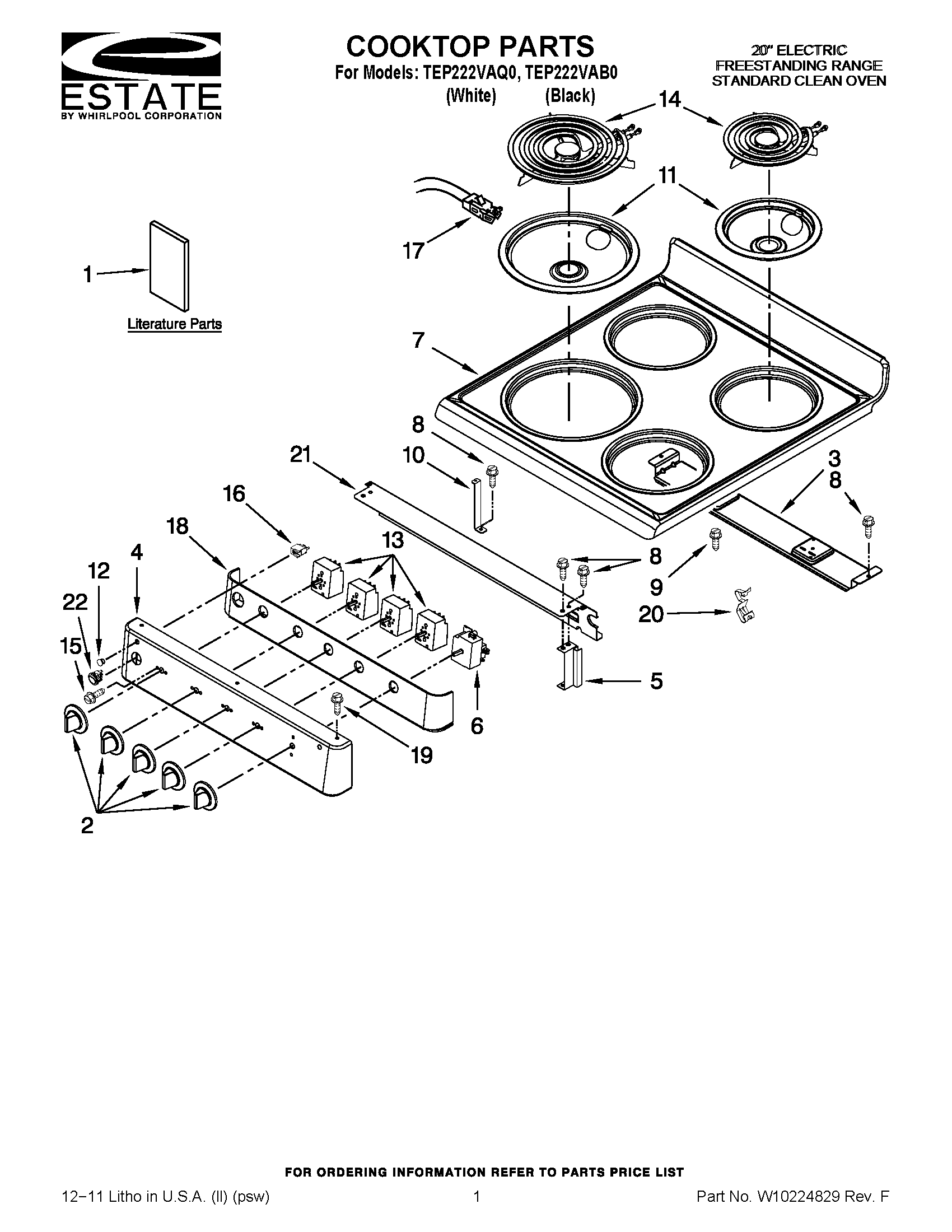

TEP222VAB0 01 – COOKTOP PARTS

TEP222VAB0 01 – COOKTOP PARTS

Written by

in

TEP222VAB0 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instr (Template)
1Safer Cooking Tips
1Insallation Instructions
1Use & Care Guide
1Tech Sheet
2KNOB, CONTROL (BLACK)
2WPW10183393 Whirlpool Knob
3Support, Burner
4PANEL, MANIFOLD (WHITE)
4PANEL, MANIFOLD (BLACK)
5Bracket, Support
6WP74009277 Whirlpool Thermostat Assembly
6W10175582 Whirlpool Cooktop
7COOKTOP (BLACK)
8W10837731 Whirlpool Screw Assembly
9SCREW
10Bracket, Cooktop
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12W11690131 Whirlpool Light Lens
13WPW10179654 Whirlpool Refrigerator Infinite Switch
13SWITCH-IND
14WPW10345407 Whirlpool Surface Element
14WP9761346 Whirlpool Stove Surface Burner Element
15WP3400882 Whirlpool Screw
16W10852510 Whirlpool Indicator Light
17814399 Whirlpool Receptacle Kit
18W11688742 Whirlpool Insulation
19SCREW
2098005642 Whirlpool Clip
21Shield, Control
2298011571 Whirlpool Light Switch
2298011569 Whirlpool Oven Light Switch
