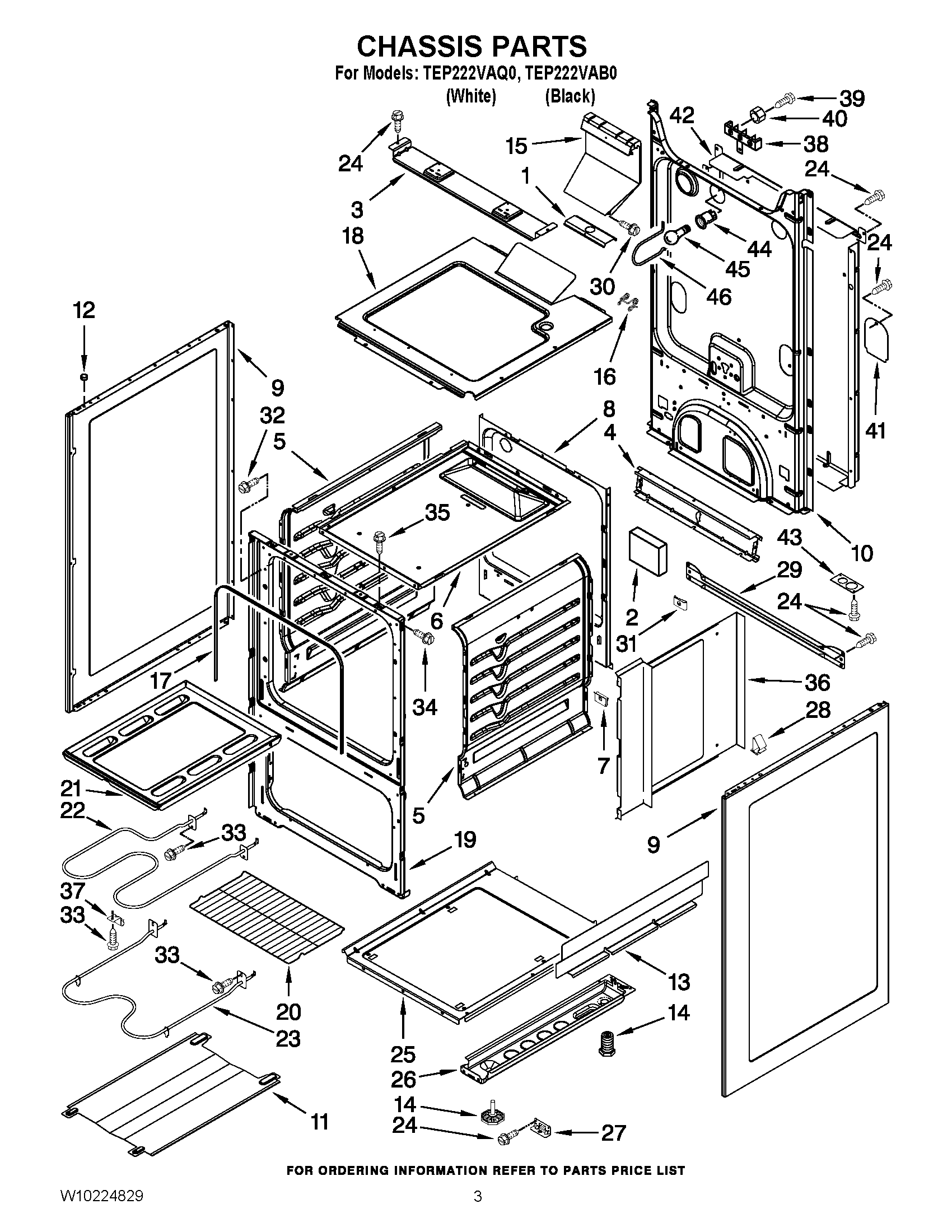

TEP222VAB0 03 – CHASSIS PARTS

TEP222VAB0 03 – CHASSIS PARTS

Written by

in

TEP222VAB0 03 – CHASSIS PARTS

Products

PositionProduct
NIW11684778 Whirlpool Insulation
NIW11684896 Whirlpool Insulation
NIW11684895 Whirlpool Insulation
NIW11684784 Whirlpool Insulation
NI98004294 Whirlpool Insulation Wire
1Cover, Flue Box
2COUNTER WEIGHT
3Support, Burner
498012912 Whirlpool Support
598004451 Whirlpool Oven Side Panel
598004452 Whirlpool Oven Side
698004448 Whirlpool Burner Box
7CLIP, OVEN BOTTON
8W10175662 Whirlpool Rear Cover
998010059 Whirlpool Oven Side Panel
9W11501467 Whirlpool Side Panel
10W10166296 Whirlpool Rear Cover
1198015099 Whirlpool Oven Burner Baffle
12W10207167 Whirlpool Bumper
1398007191 Whirlpool Oven Heat Shield
14WP3196037 Whirlpool Leveling Foot
14WPW10058460 Whirlpool Appliance Levelling Leg
15WPW10116396 Whirlpool Flue Box
1698013690 Whirlpool Clip
17W10170595 Whirlpool Gasket Door
18W10208539 Whirlpool Burner Box
1998006752 Whirlpool Front Frame
20W11223841 Whirlpool Oven Rack
21W10192836 Whirlpool Oven Bottom Pan
22W10170571 Whirlpool Broil Element
23WPW10163272 Whirlpool Bake Element
24W10837731 Whirlpool Screw Assembly
2598003945 Whirlpool Burner Baffle
2698003830 Whirlpool Rail Base
2798007126 Whirlpool Oven Stand Bracket
28CLIP, COOKTOP
2998010054 Whirlpool Oven Support
30Screw
3198009179 Whirlpool Oven Nut
32WP98008545 Whirlpool Screw
33SCREW
34WP3400805 Whirlpool Screw Assembly
36Baffle, Side (2)
3798004973 Whirlpool Oven Support Element
38W10181453 Whirlpool Terminal Block
39W11684512 Whirlpool Screw
40WP112432 Whirlpool Nut Assembly
41W10209692 Whirlpool Black Cover
42W10208152 Whirlpool Rear Cover
43Plate, Conduit
44W10856866 Whirlpool Light Socket
45RANGE ONLY 40W 120V APPL BULB
46Protector, Light
