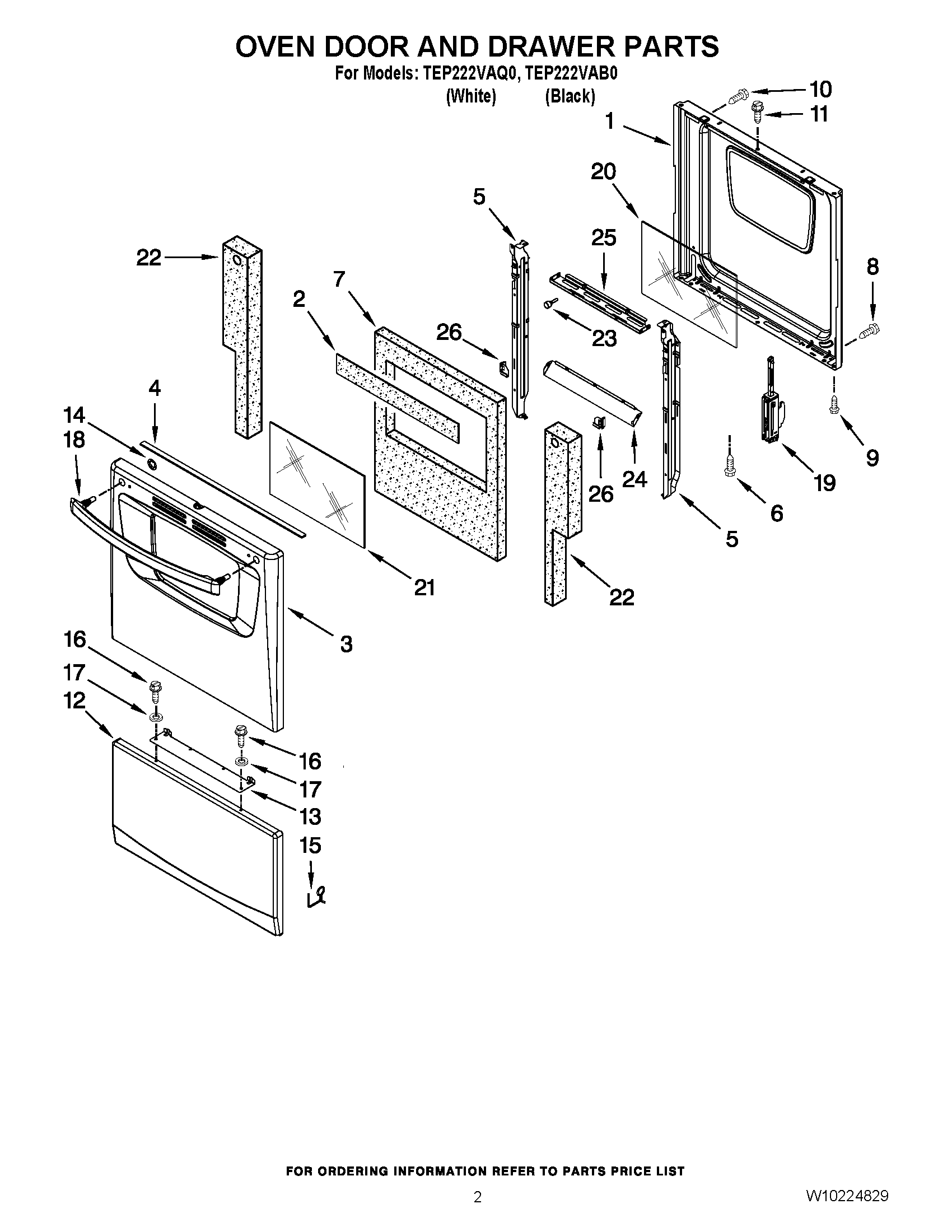

TEP222VAQ0 02 – OVEN DOOR AND DRAWER PARTS

TEP222VAQ0 02 – OVEN DOOR AND DRAWER PARTS

Written by

in

TEP222VAQ0 02 – OVEN DOOR AND DRAWER PARTS

Products

PositionProduct
198010413 Whirlpool Oven Door Liner
3PANEL, OVEN DOOR (BLACK)
3W10223098 Whirlpool Door Panel
4Seal, Oven Door
598004564 Whirlpool Oven Retainer
598004629 Whirlpool Oven Retainer
6WP59002061 Whirlpool Microwave Screw
7W11688807 Whirlpool Insulation
8W11206744 Whirlpool Screw
9WP3400805 Whirlpool Screw Assembly
10SCREW
113196166 Whirlpool Screw
1298009307 Whirlpool Oven Drawer Panel
12DOOR, BROIL (BLACK)
13W10208117 Whirlpool Mounting Bracket
14WP98004650 Whirlpool Nut
156610364 Whirlpool Oven Clip
16W10837731 Whirlpool Screw Assembly
17W10216805 Whirlpool Washer
18HANDLE, OVEN DOOR (BLACK)
18WP98004947 Whirlpool Door Handle
1998017873 Whirlpool Oven Door Hinge
20WPW10201296 Whirlpool Door Glass
21WPW10168624 Whirlpool Door Glass
22Insulation (Right)
22W11688784 Whirlpool Insulation
2398004723 Whirlpool Oven Bumper
2498012903 Whirlpool Oven Retainer
2598004981 Whirlpool Oven Retainer
2698004952 Whirlpool Oven Clip
2698004953 Whirlpool Clip
