TEP315KW1 02 – CONTROL PANEL PARTS

TEP315KW1 02 – CONTROL PANEL PARTS

Written by

in

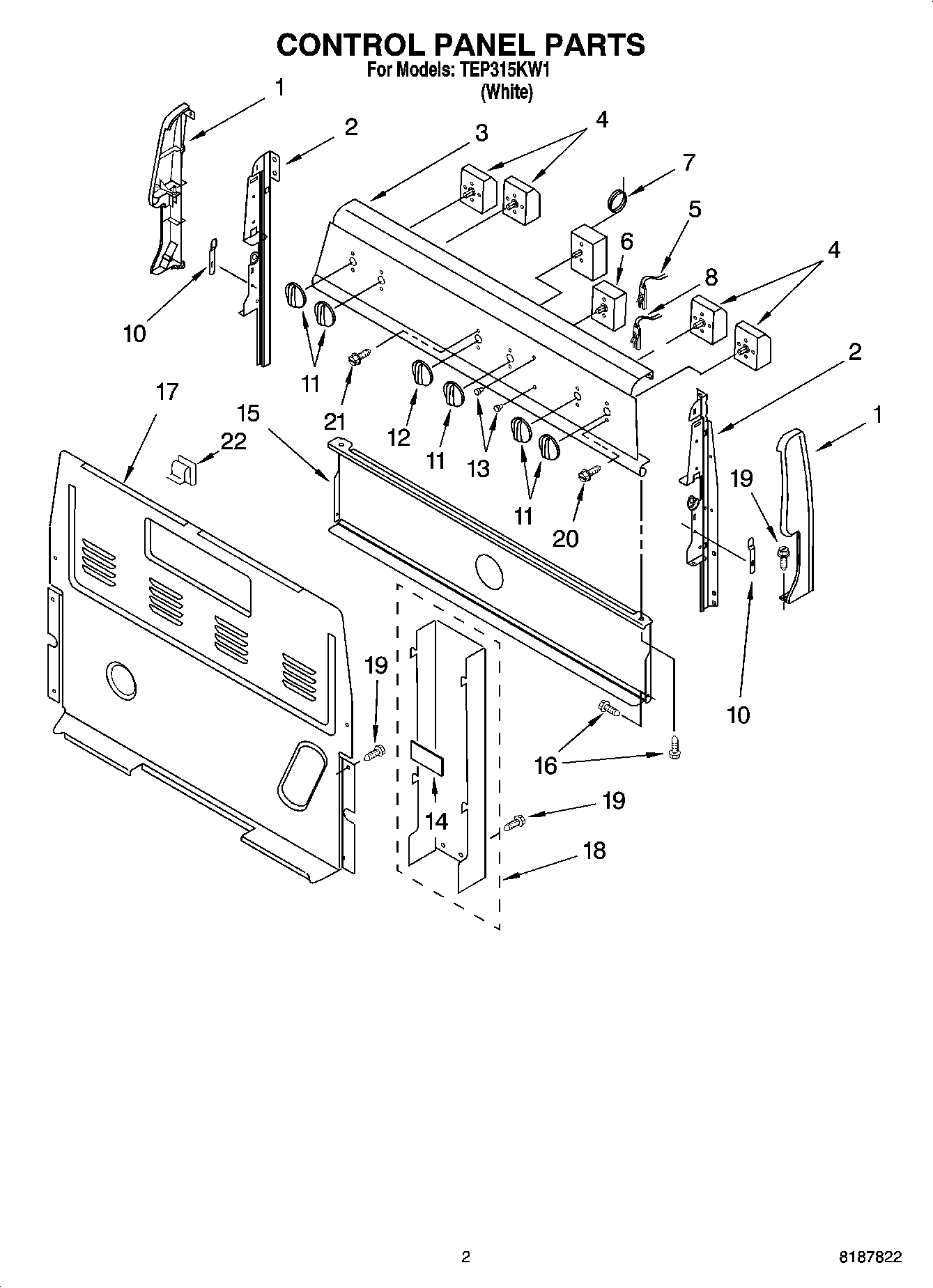

TEP315KW1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5Indicator, Surface
6WP3188987 Whirlpool Oven Switch
7WP9762852 Whirlpool Thermostat
8Light, Indicator (250V)
103196200 Whirlpool Clip
11WP3196231 Whirlpool Knob
12Knob, Thermostat
13WP3196068 Whirlpool Light Lens
14Card, Insulation
15Shield, Heat
16Screw
17WP8272473 Whirlpool Rear Cover
18WP9761958 Whirlpool Range Terminal Block
19SCREW
20WP3400882 Whirlpool Screw
21WP3196170 Whirlpool Screw
22WP8273564 Whirlpool Clip
