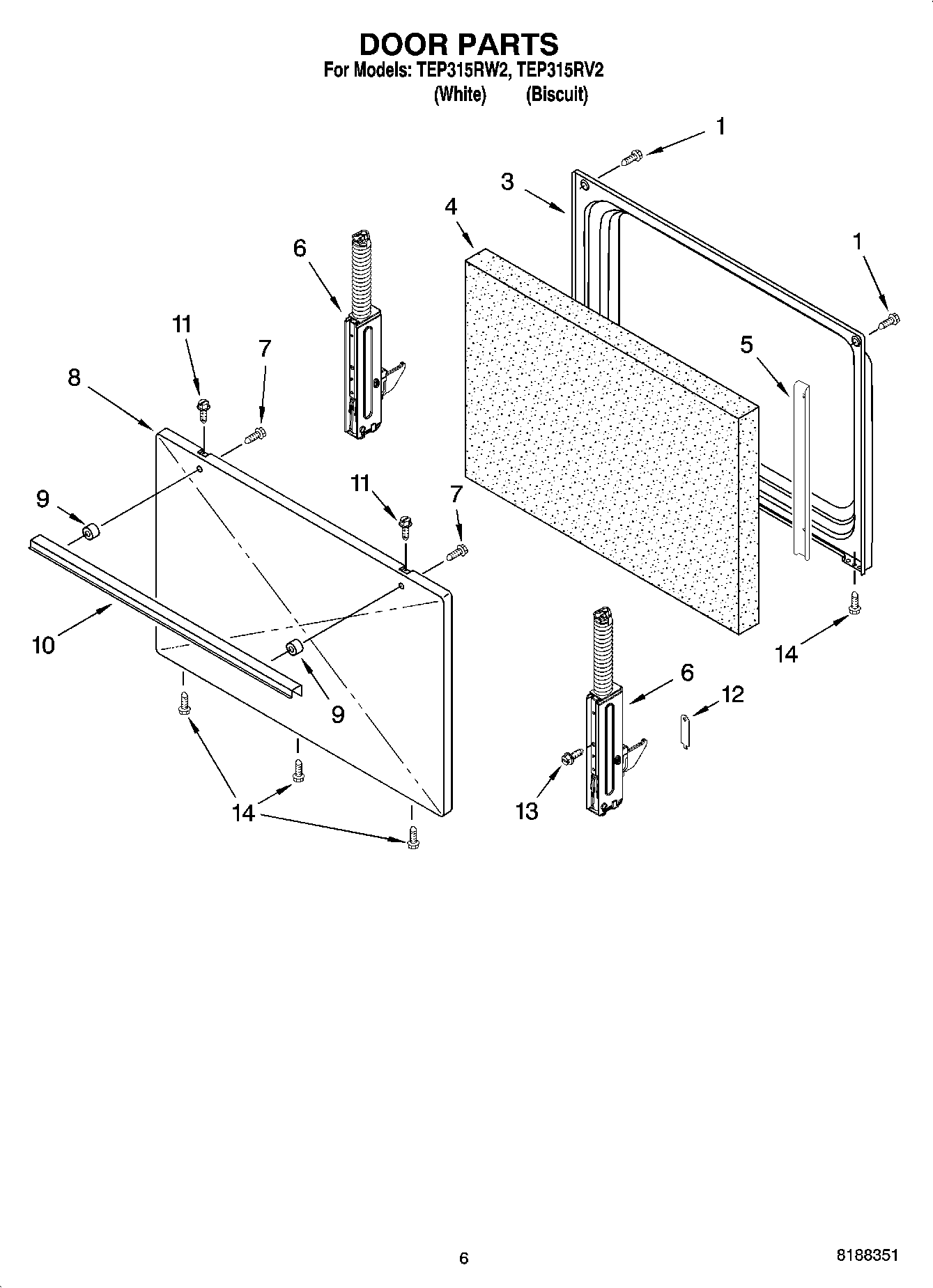

TEP315RV2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

TEP315RV2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

TEP315RV2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI131011A
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
Grease
WPL ARI131010A
WPL ARI131009A
WPL ARI131007A
WPL ARI131006A
WPL 9757473
WPL ARI131008A
W11396691 Whirlpool Element Receptacle and Wire Kit
WP3196154 Whirlpool Screw Assembly
242831 Whirlpool Oven Wire
Clip, Ground Wire
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
WP72107 Whirlpool Touchup
4396923 Whirlpool Broil Pan Set Gray Porcelain
799344 Whirlpool Refrigerator Paint
3400964 Whirlpool Oven Clip
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
1W10777162 Whirlpool Screw
39761342 Whirlpool Oven Door Liner
4WPW10278991 Whirlpool Insulation
5Bracket, Mntg (2)
6W10368723 Whirlpool Door Hinge
7WP3196163 Whirlpool Screw
8Panel, Steel (Biscuit)
8W10903447 Whirlpool Door Panel Assembly
9WP3196143 Whirlpool Spacer Assembly
9Spacer, Handle (Biscuit)
10WP3195704 Whirlpool Door Handle Assembly
11Screw, Panel (2) (Almond)
113196558 Whirlpool Oven Screw
129761517 Whirlpool Oven Clip Assembly
13WPW10031790 Whirlpool Screw
14WP3196175 Whirlpool Screw
