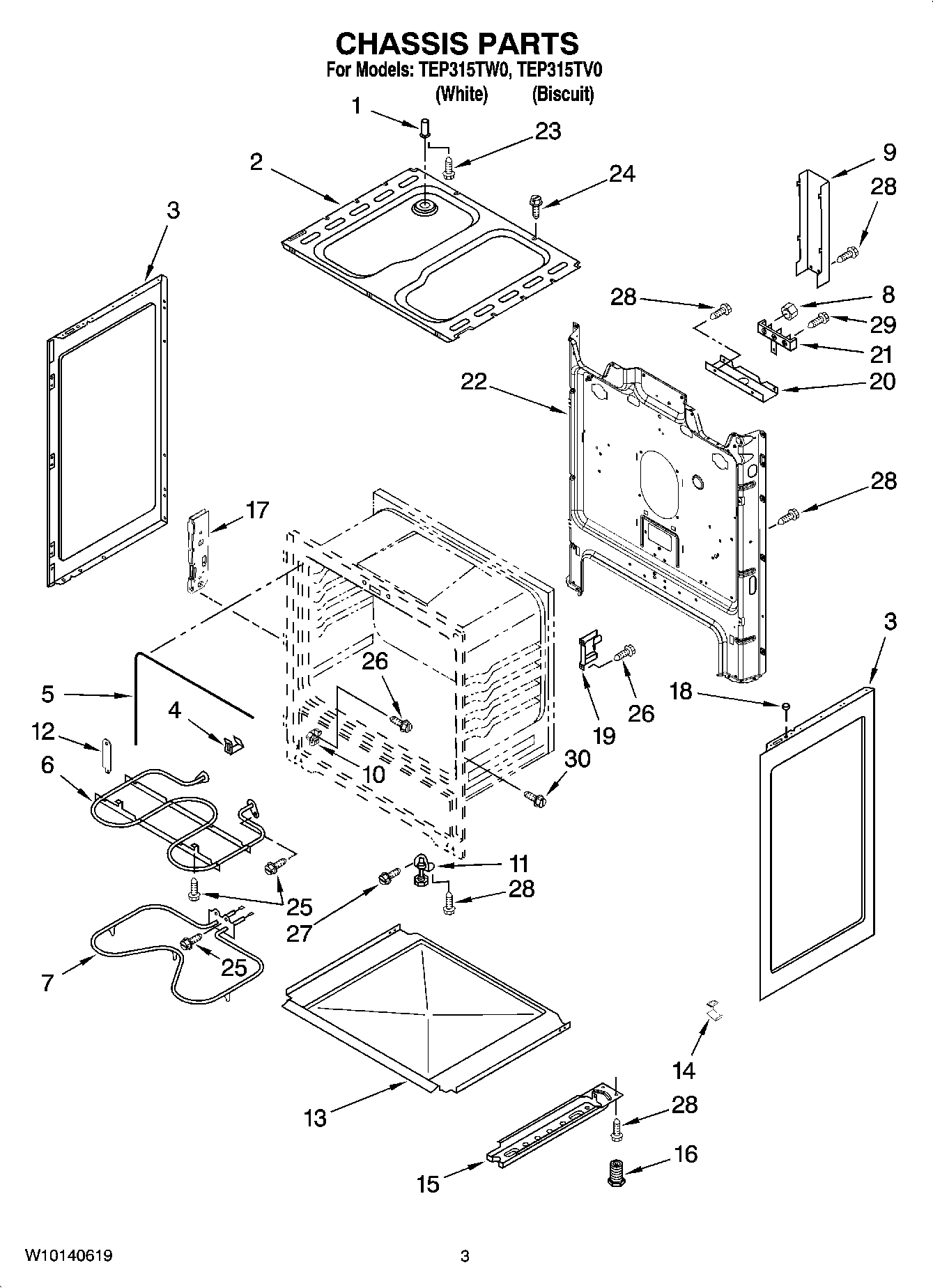

TEP315TW0 03 – CHASSIS PARTS

Products

Position	Product
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
3	W10162246 Whirlpool Side Panel
4	98005642 Whirlpool Clip
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	WP112432 Whirlpool Nut Assembly
9	WPW10326122 Whirlpool Black Cover
10	WPW10114344 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
12	9761517 Whirlpool Oven Clip Assembly
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	W10647259 Whirlpool Hinge Receiver
18	238614 Whirlpool Bumper Hinge
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP9761958 Whirlpool Range Terminal Block
22	Back, Main
23	WP3196567 Whirlpool Screw
24	WP3400832 Whirlpool Screw
25	WP3196174 Whirlpool Screw
26	WP3196557 Whirlpool Screw
27	Screw
28	SCREW
29	WP3400016 Whirlpool Screw Assembly
30	WPW10067840 Whirlpool Screw
30	W11311894 Whirlpool Insulation
30	WPW10208653 Whirlpool Insulation
30	Insulation
