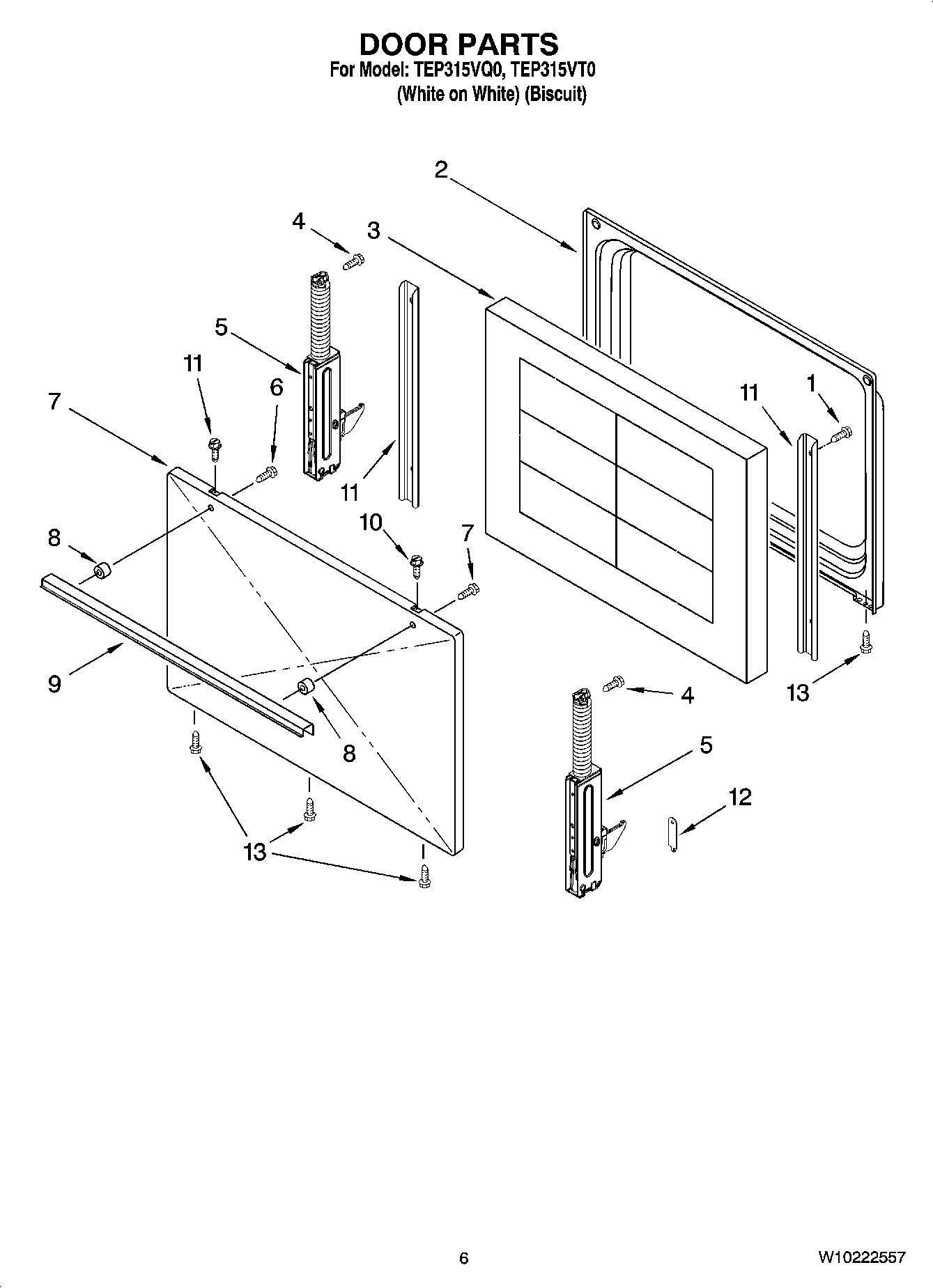

TEP315VQ0 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Clip, Ground Wire
	8212471 Whirlpool Oven Paint
	3184020 Whirlpool Oven Wire
	Grease
	W11396691 Whirlpool Element Receptacle and Wire Kit
	REFINISHING MATERIAL
	Insulation
	W11616883 Whirlpool Wire Harness
	ACCESSORY PARTS
	ANTI-TIP KIT
	W11447673 Whirlpool Range Tip Anchor
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WIRING HARNESS PARTS
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	WPL 799832
	WPW10208653 Whirlpool Insulation
	72017 Whirlpool Appliance Touch-Up Paint White
	FOIL, ALUMINUM OVEN (18“ X 25 )
1	WPW10031790 Whirlpool Screw
2	9761342 Whirlpool Oven Door Liner
3	WPW10278991 Whirlpool Insulation
4	W10777162 Whirlpool Screw
5	W10368723 Whirlpool Door Hinge
6	WP3196163 Whirlpool Screw
7	W10903447 Whirlpool Door Panel Assembly
7	Panel, Steel (Biscuit)
8	Spacer, Handle (Biscuit)
8	WP3196143 Whirlpool Spacer Assembly
9	Handle, Oven Door (Biscuit)
9	WP3195263 Whirlpool Door Handle
10	Screw, Panel (2) (Almond)
10	3196558 Whirlpool Oven Screw
11	W11699790 Whirlpool Retainer
12	9761517 Whirlpool Oven Clip Assembly
13	WP3196175 Whirlpool Screw
