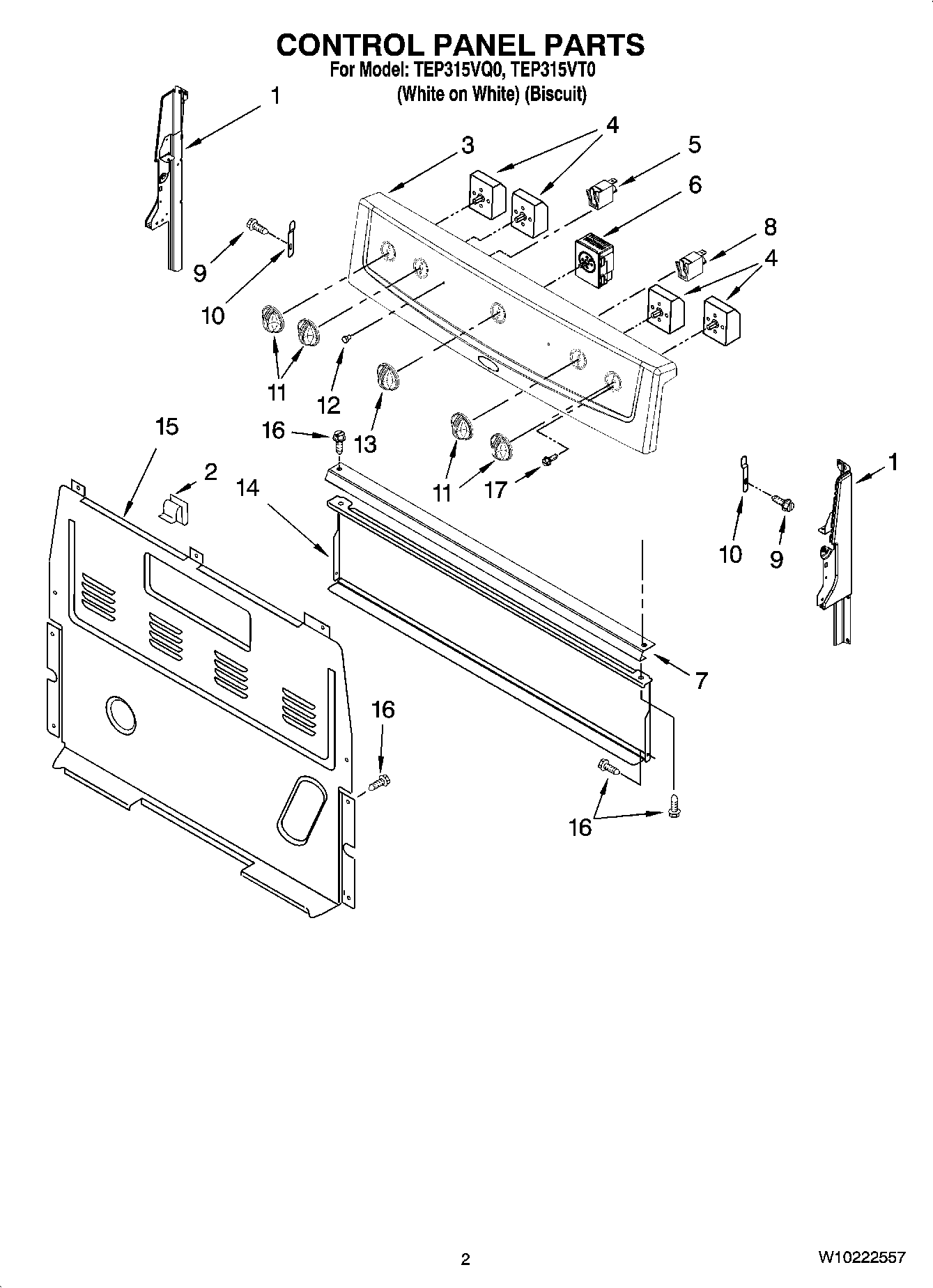

TEP315VT0 02 – CONTROL PANEL PARTS

TEP315VT0 02 – CONTROL PANEL PARTS

Written by

in

TEP315VT0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11230612 Whirlpool Panel End Cap
1W11230611 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
2WP8273564 Whirlpool Clip
3Panel, Backguard (Biscuit)
3W11263359 Whirlpool Control Panel
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP9762215 Whirlpool Oven Switch
7W10525121 Whirlpool Control Bracket
8WP8523266 Whirlpool Indicator Light
93196166 Whirlpool Screw
103196200 Whirlpool Clip
11Knob, Infinite (4) (Biscuit)
11WPW10203524 Whirlpool Knob
12WP3196068 Whirlpool Light Lens
13Knob, Thermostat (White)
13W10203523 Whirlpool Knob
14Shield, Heat
15WP8272473 Whirlpool Rear Cover
16SCREW
17WP3400882 Whirlpool Screw
