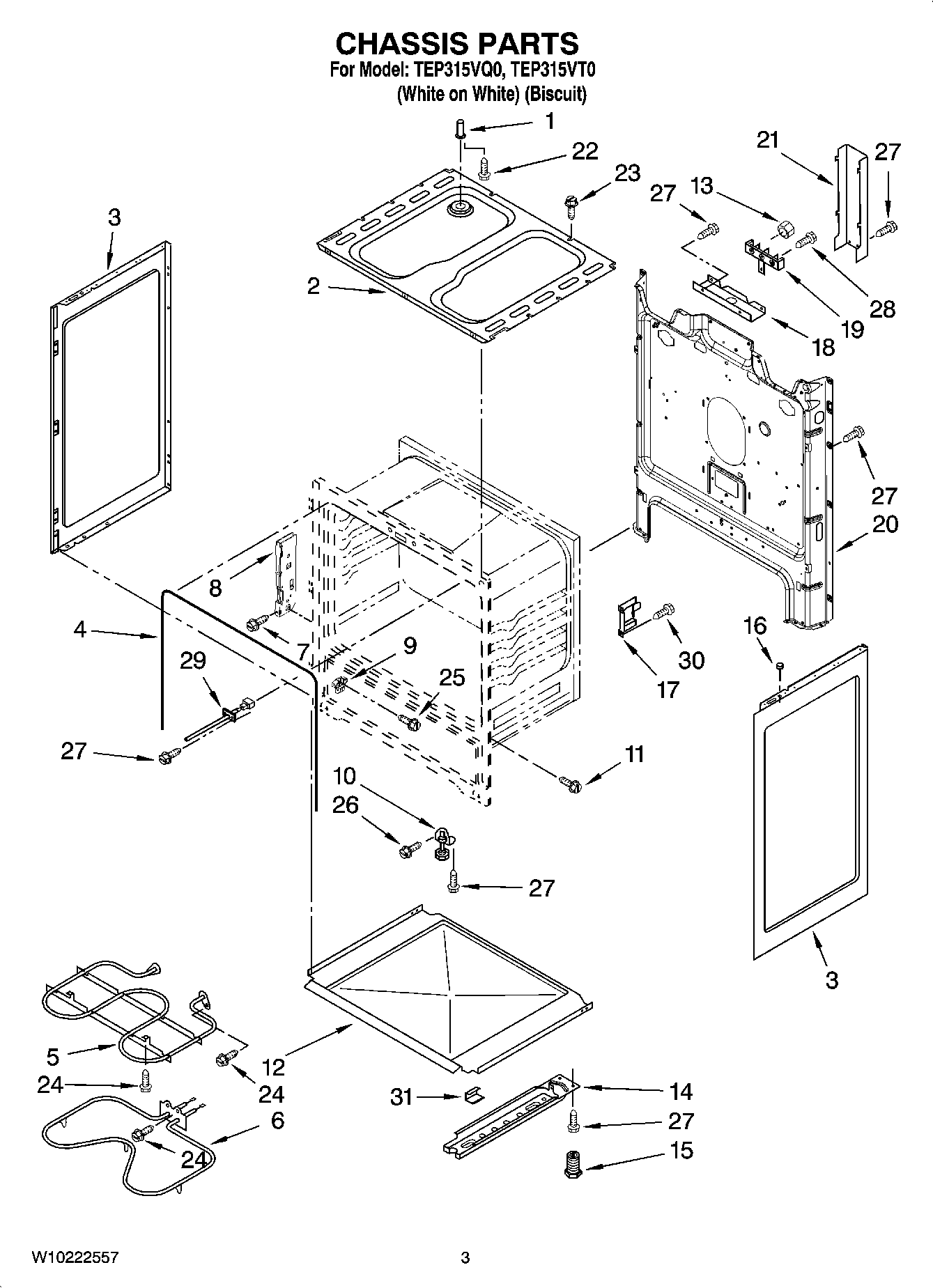

TEP315VT0 03 – CHASSIS PARTS

Products

Position	Product
	Insulation
	W11311894 Whirlpool Insulation
	WPW10208653 Whirlpool Insulation
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	W10162246 Whirlpool Side Panel
3	WPW10575396 Whirlpool Side Panel
4	W11542153 Whirlpool Door Gasket
5	W10856603 Whirlpool Broil Element
6	WPW10308477 Whirlpool Bake Element
7	W10777162 Whirlpool Screw
8	W10647259 Whirlpool Hinge Receiver
9	WPW10114344 Whirlpool Drawer Glide
10	WP3196037 Whirlpool Leveling Foot
11	WPW10067840 Whirlpool Screw
12	WP8054068 Whirlpool Retainer
13	Nut
14	WPW10306546 Whirlpool Base Rail
15	WPW10058460 Whirlpool Appliance Levelling Leg
16	238614 Whirlpool Bumper Hinge
17	W10404688 Whirlpool Bracket Support
18	W11728255 Whirlpool Service Bracket
19	WP9761958 Whirlpool Range Terminal Block
20	Back, Main
21	WPW10326122 Whirlpool Black Cover
22	WP3196567 Whirlpool Screw
23	WP3400832 Whirlpool Screw
24	WP3196154 Whirlpool Screw Assembly
25	WP3196175 Whirlpool Screw
26	Screw
27	SCREW
28	WP3400016 Whirlpool Screw Assembly
29	WPW10181986 Whirlpool Oven Sensor
30	WP3196557 Whirlpool Screw
31	W10137382 Whirlpool Clip
