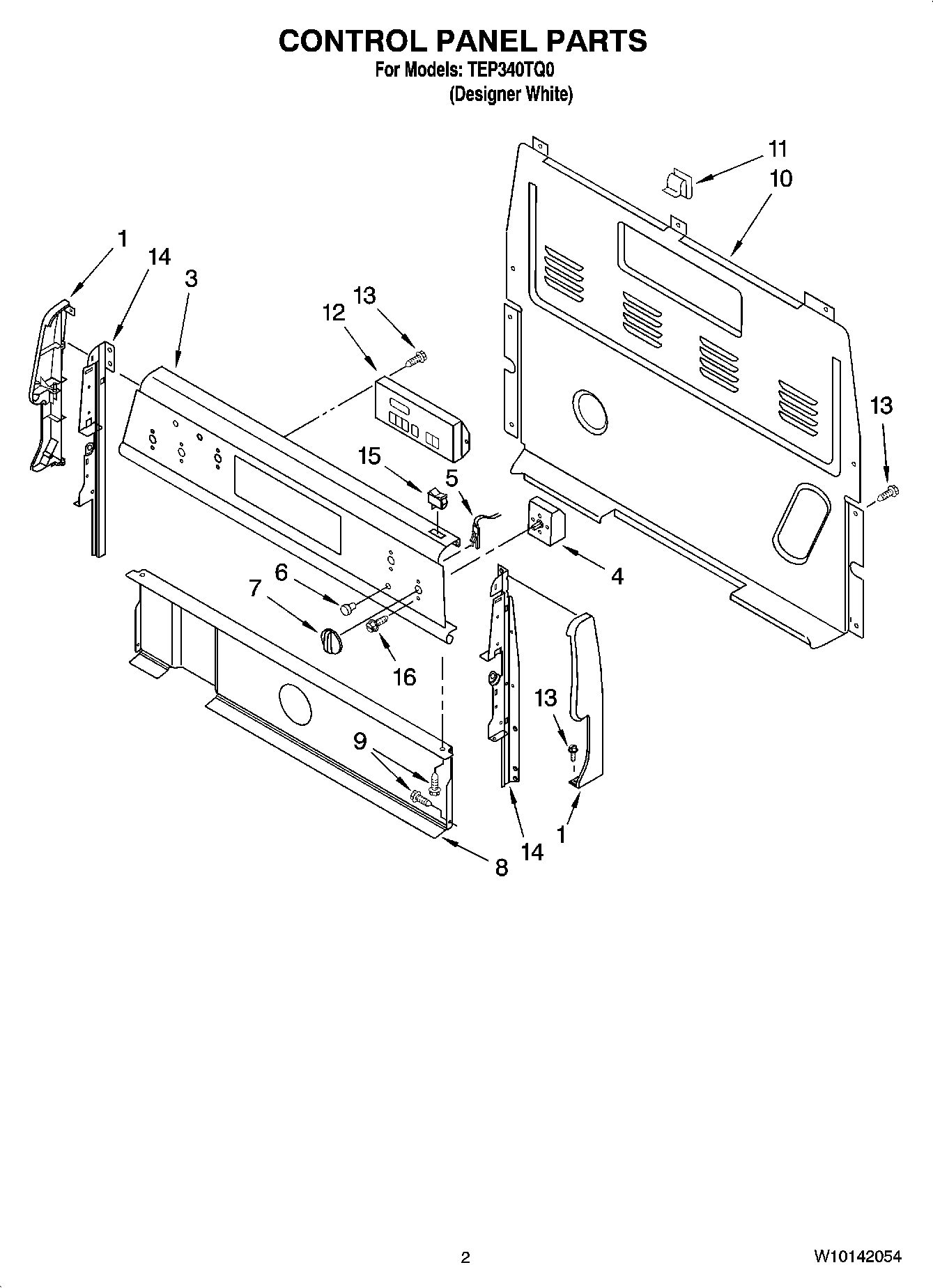

TEP340TQ0 02 – CONTROL PANEL PARTS

TEP340TQ0 02 – CONTROL PANEL PARTS

Written by

in

TEP340TQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
3Panel, Console (White)
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11WP8273564 Whirlpool Clip
12Control, Range (White)
13SCREW
14Support, Endcap (Right Hand)
14Support, Endcap (Left Hand)
153149360 Whirlpool Light Switch
16WP3400882 Whirlpool Screw
