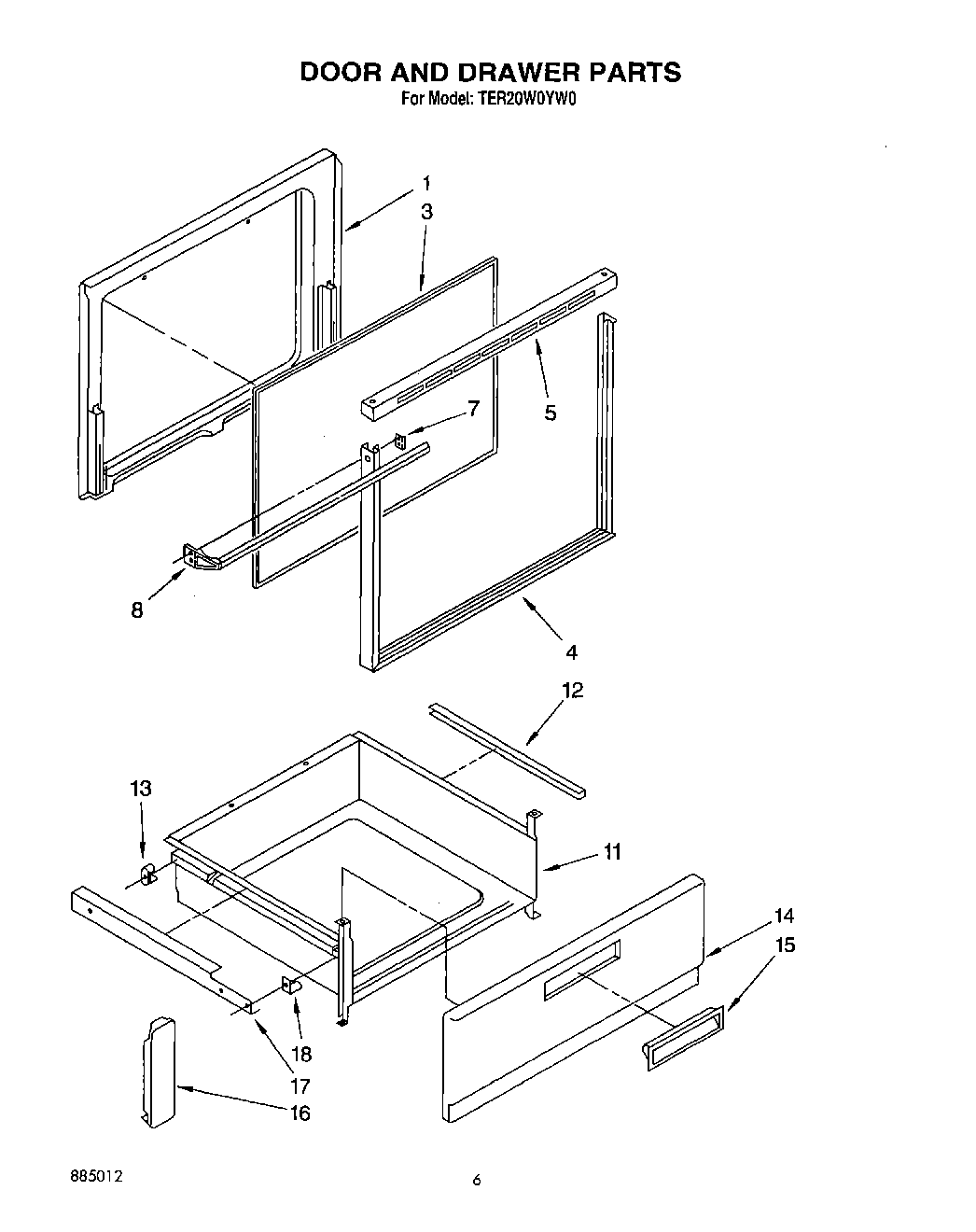

TER20W0YW0 05 – DOOR AND DRAWER, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3150261
Wiring Diagram
WPL LIT3147395
WPL LIT885012
1Back Splash (Screw (4) 10AB x 1/2“)
1Liner, Door
3Panel, Door (Black Glass)
4WP355515 Whirlpool Screw
4Frame, Door
5Top, Door (Black Model)
7Clip, Mtg (2)
8Handle, Oven Door
11Drawer, Utility
12Protector, Drawer (2)
13Glide, Rear (2)
14Panel, Drawer (White)
14WP488627 Whirlpool Refrigerator Screw
14Panel, Drawer (Almond)
15Handle, Snap-In (White)
15Handle, Snap-In (Almond)
16Bracket, Mounting (2)
17Rail L.H. (Includes Illus. 3)
17Rail R.H. (Includes Illus. 3)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 200 c Brown)
181
18285006 Whirlpool Spray
18Screw, 10A x 1/2 (2) (Black)
18Leveler (Thinner) (2oz.)
188212471 Whirlpool Oven Paint
18Golden Harvest
18Grease
18Glide, Front (2)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18WPL 72112
18Platinum (Uncut)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
1872113 Whirlpool Touch-Up Paint
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18350942 Whirlpool Spray Paint
18511873 Whirlpool Refrigerator Paint
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18WPL 799832
18350930 Whirlpool White Spray Paint
