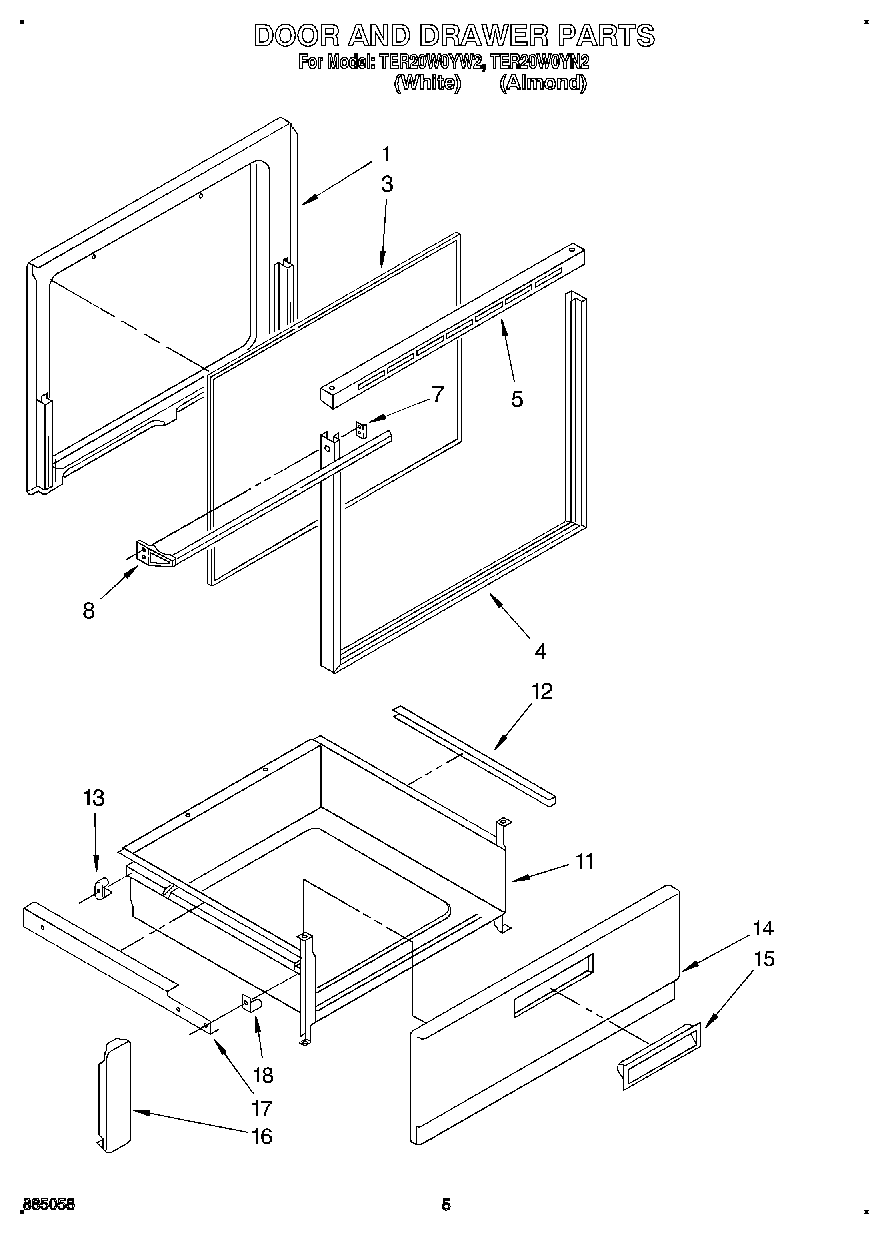

TER20W0YW2 04 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
1Back Splash (Screw (4) 10AB x 1/2“)
3Panel, Door (Black Glass)
4Frame, Door
4WP355515 Whirlpool Screw
5Top, Door (Black Model)
7Clip, Mtg (2)
8Handle, Oven Door
11Drawer, Utility
12Protector, Drawer (2)
13Glide, Rear (2)
14Panel, Drawer (Almond)
14Panel, Drawer (White)
14WP488627 Whirlpool Refrigerator Screw
15Handle, Snap-In (White)
15Handle, Snap-In (Almond)
16Bracket, Mounting (2)
17Rail L.H. (Includes Illus. 3)
17Rail R.H. (Includes Illus. 3)
18Glide, Front (2)
18Screw, 10A x 1/2 (2) (Black)
