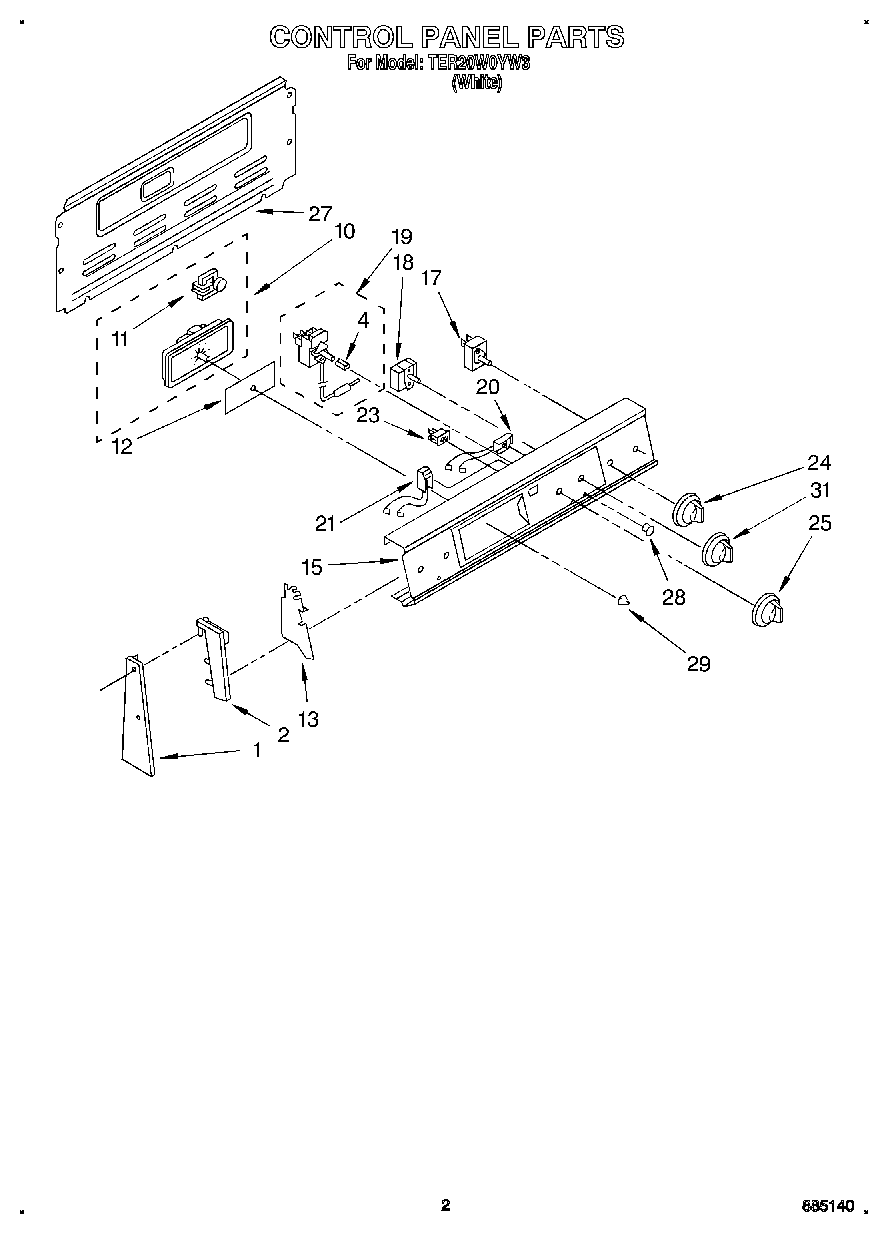

TER20W0YW3 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (LH, Black)
1	End Trim R.H. (Black)
2	Screw,
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
4	WPL 3169525
10	Timer, Clock
11	Motor, Timer
12	Glass, Timer
13	Shield (2)
13	WP965173 Whirlpool Dishwasher Screw
15	Panel, Control
17	WP3149404 Whirlpool Oven Surface Element Switch
17	SWITCH-INF
18	Screw, 8-32 x 3/16 (2)
18	Switch, Selector
19	Thermostat, 0ven
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator (Includes No. 12) (Surface Unit On)
23	WP4314961 Whirlpool Lite Switch
24	WP3149983 Whirlpool Knob
25	Knob, Temperature
27	Rear Cover Contr
27	SCREW
28	Lens, Amber
29	WP3169181 Whirlpool Knob
31	Knob, Selector
