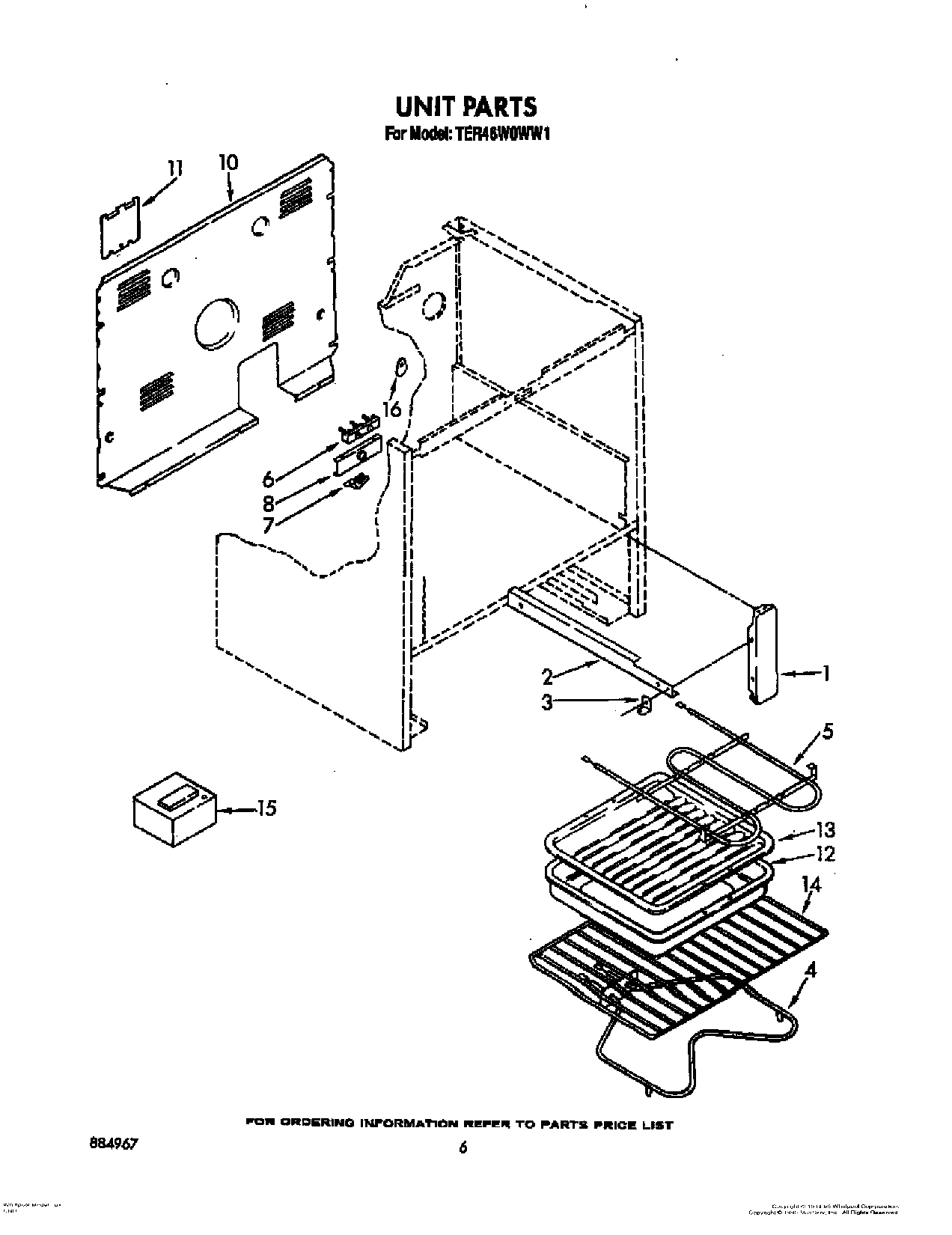

TER46W0WN1 06 – UNIT, OPTIONAL

TER46W0WN1 06 – UNIT, OPTIONAL

Written by

in

TER46W0WN1 06 – UNIT, OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
3	Screw, 10A x 1/2 (2) (Black)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	Block, Balance
15	340184 Whirlpool Screw
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 200 c Brown)
16	18 Ga. 80~c Rating (Red)
16	WPL 311982
16	1
16	WPL 3169094
16	WPL 3169093
16	350930 Whirlpool White Spray Paint
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
16	Grease
16	8212471 Whirlpool Oven Paint
16	Leveler (Thinner) (2oz.)
16	Enamel, Coffee (1 Qt. Uncut)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	Golden Harvest
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	WPL 72112
16	350942 Whirlpool Spray Paint
16	WPL 799832
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	WPL 310433
16	Screw (2)
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	350956 Whirlpool Spray Assembly
