TER46W0WW0 02 – COOKTOP

TER46W0WW0 02 – COOKTOP

Written by

in

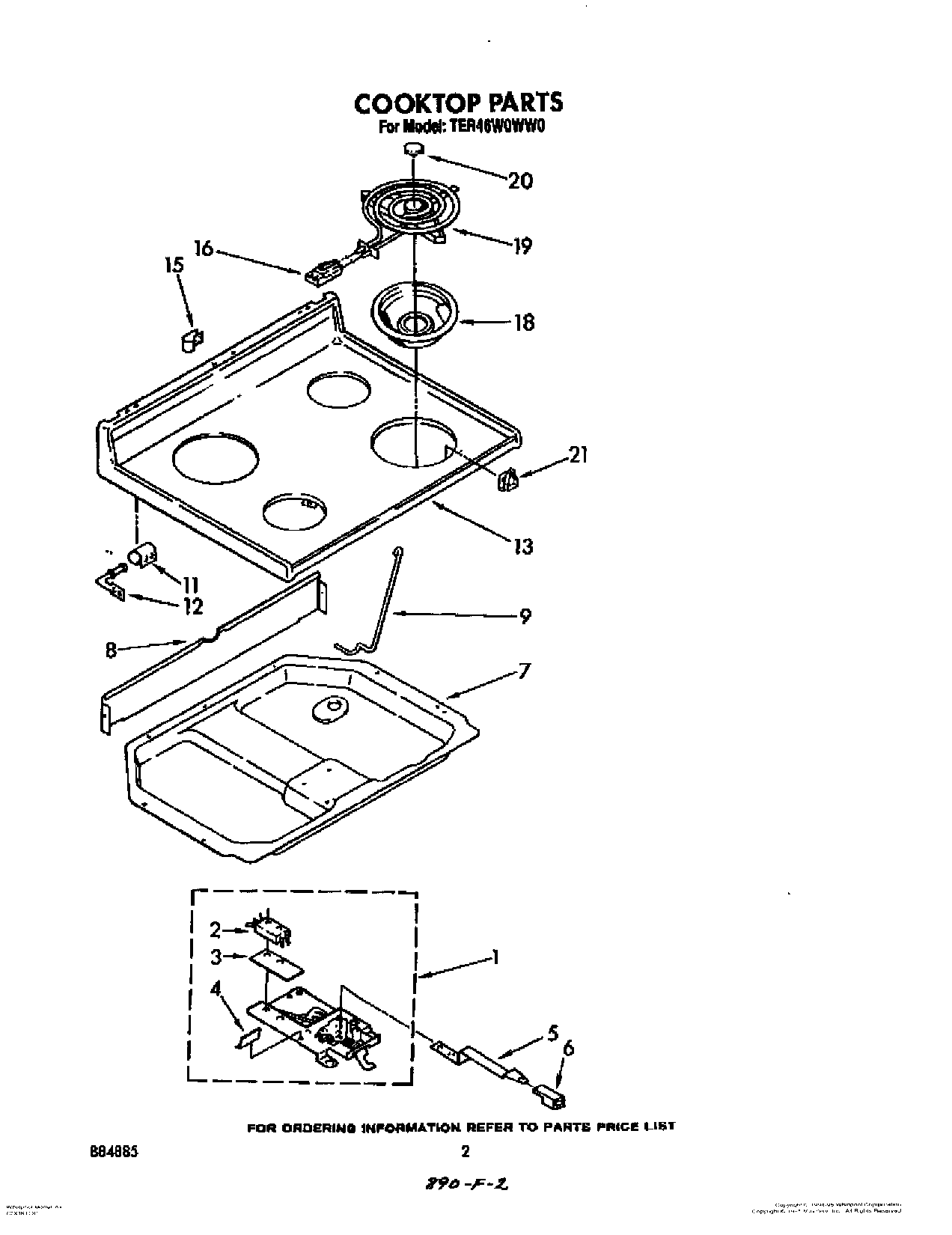

TER46W0WW0 02 – COOKTOP

Products

PositionProduct
1Latch & Switch Assembly
2Safety Switch
2Screw
3Insulator, Switch
4Shield, Latch
4Screw
5Handle, Latch
5Screw
6WP486579 Whirlpool Air Conditioner Screw
6Knob, Latch
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (White)
13Cooktop (Almond)
15SCREW
15WP308605 Whirlpool Refrigerator Clamp
16WP313808 Whirlpool Screw
16WP4332752 Whirlpool Clip
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
18DRIP BOWL 8" W/HOLE CHROME
19WP660532 Whirlpool Oven Surface Element
19WP660533 Whirlpool Oven 8" Surface Element
20Medallion (4)
21814103 Whirlpool Clip
21Nut (4)
21WP487887 Whirlpool Refrigerator Screw
