TER46W0WW0 05 – UNIT, LIT/OPTIONAL

TER46W0WW0 05 – UNIT, LIT/OPTIONAL

Written by

in

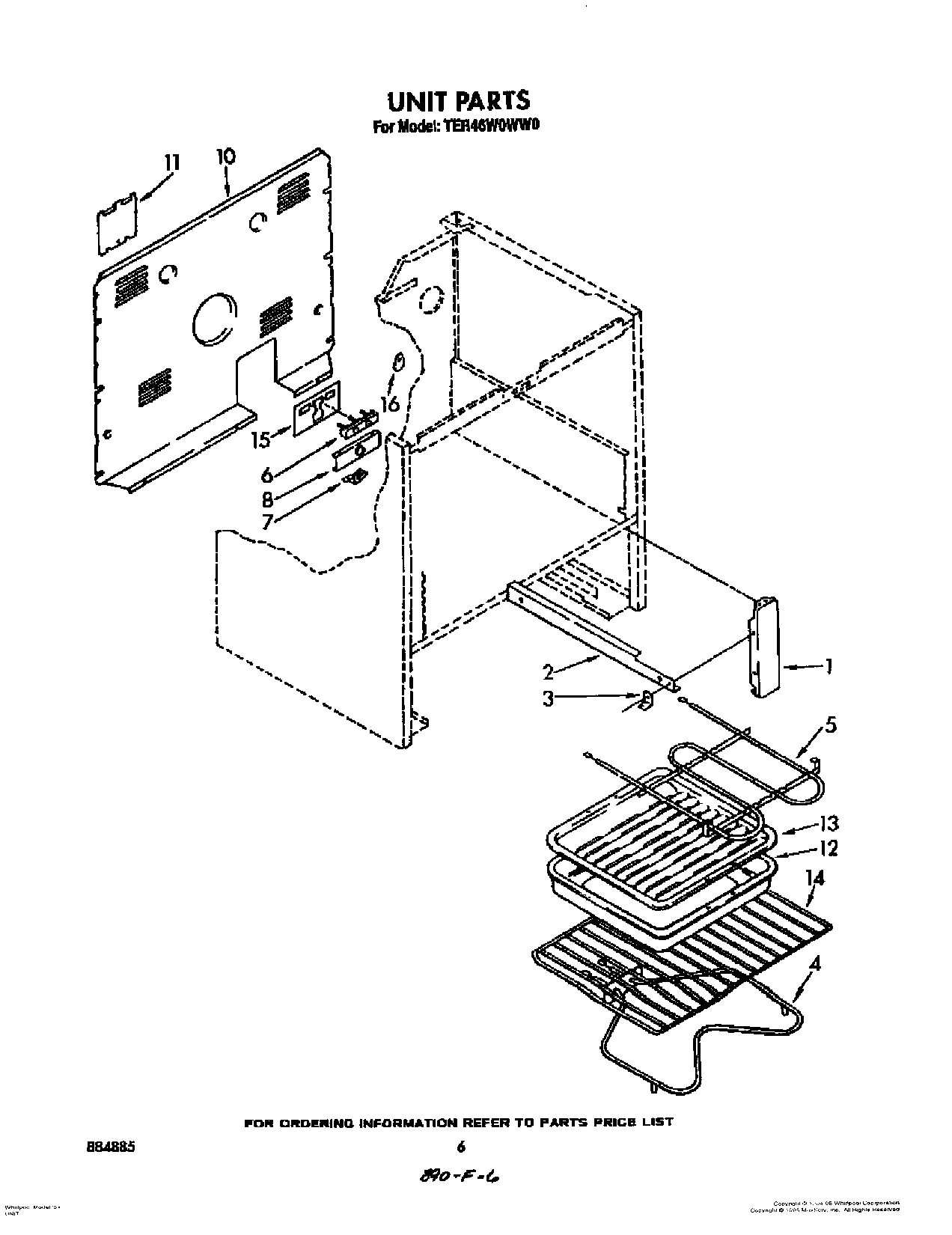

TER46W0WW0 05 – UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3150250
	WPL LIT884885
	WPL LIT3169007
	WPL LIT3150255
	511873 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw (2)
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	Barrier, Shield
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	WPL 311982
16	1
16	Enamel, Coffee (1 Qt. Uncut)
16	Screw, 10A x 1/2 (2) (Black)
16	Leveler (Thinner) (2oz.)
16	8212471 Whirlpool Oven Paint
16	Grease
16	350930 Whirlpool White Spray Paint
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	Golden Harvest
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	WPL 72112
16	350942 Whirlpool Spray Paint
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	WPL 310433
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	WPL 799832
16	350956 Whirlpool Spray Assembly
