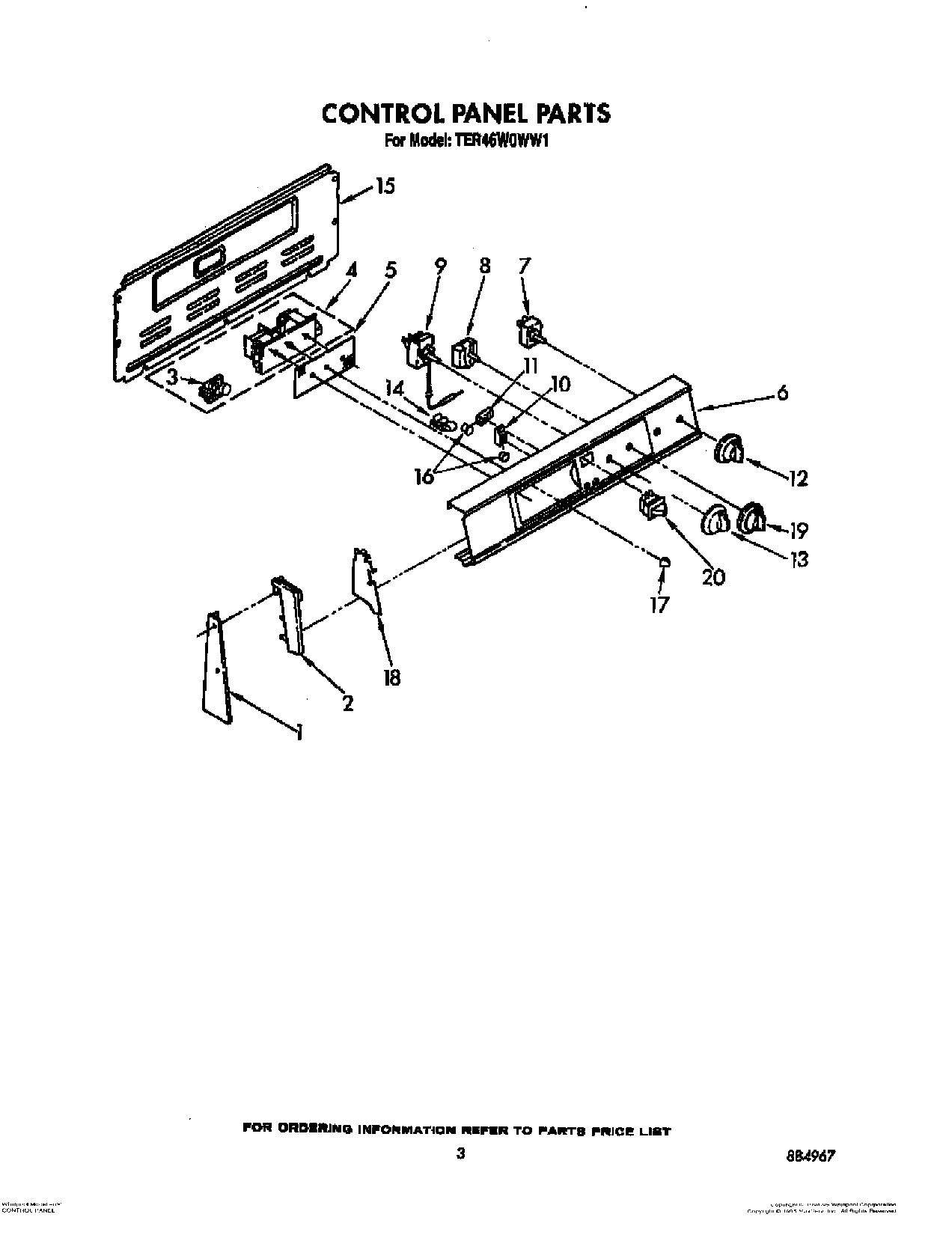

TER46W0WW1 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
3	Motor, Timer
4	Timer, Auto
5	Glass, Timer
6	Panel, Control
6	Washer
7	WP3148952 Whirlpool Oven Infinite Switch
7	WP3149400 Whirlpool Oven Infinite Switch
7	WP486579 Whirlpool Air Conditioner Screw
8	Switch, Selector
9	WP313808 Whirlpool Screw
9	Thermostat, Oven
10	Light, Indicator (Surface Unit On)
11	Light, Indicator (250V)
12	WP3149983 Whirlpool Knob
13	Knob, Thermostat
14	Clip, Tube
15	Harness-Conduit Asm.
15	SCREW
16	Lens, Amber
17	Spring (3)
17	WP3169181 Whirlpool Knob
18	Shield (2)
18	WP965173 Whirlpool Dishwasher Screw
19	Knob, Selector
20	WP4314961 Whirlpool Lite Switch
