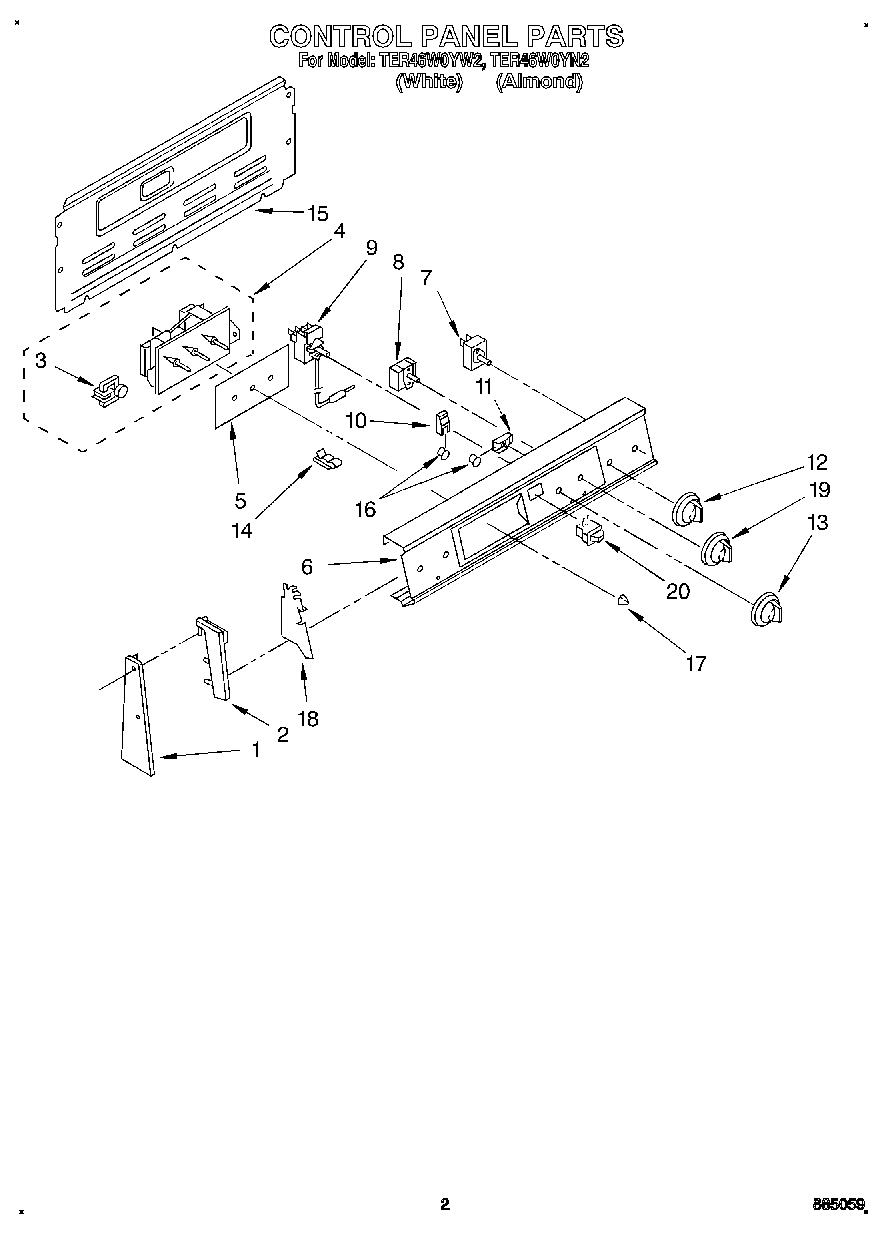

TER46W0YN2 02 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×1“
1Screw 10-32×7/16“
2Screw,
2End Cap, R.H. (White/Almond/Gold)
2End Cap, R.H. (White/Almond/Gold)
3Motor, Timer
4Timer, Control
5Glass, Timer
6Panel, Control
6Washer
7WP3149400 Whirlpool Oven Infinite Switch
7WP3149404 Whirlpool Oven Surface Element Switch
7Screw, 8-32 x 3/16 (2)
8Switch, Selector
9WP313808 Whirlpool Screw
9Thermostat, Oven
10Light, Indicator (Includes No. 12) (Surface Unit On)
11Light, Indicator (250V)
12WP3149983 Whirlpool Knob
13Knob, Thermostat
14Clip, Tube
15Rear Cover Contr
15SCREW
16Lens, Amber
17WP3169181 Whirlpool Knob
18WP965173 Whirlpool Dishwasher Screw
18Shield (2)
19Knob, Selector
20WP4314961 Whirlpool Lite Switch
