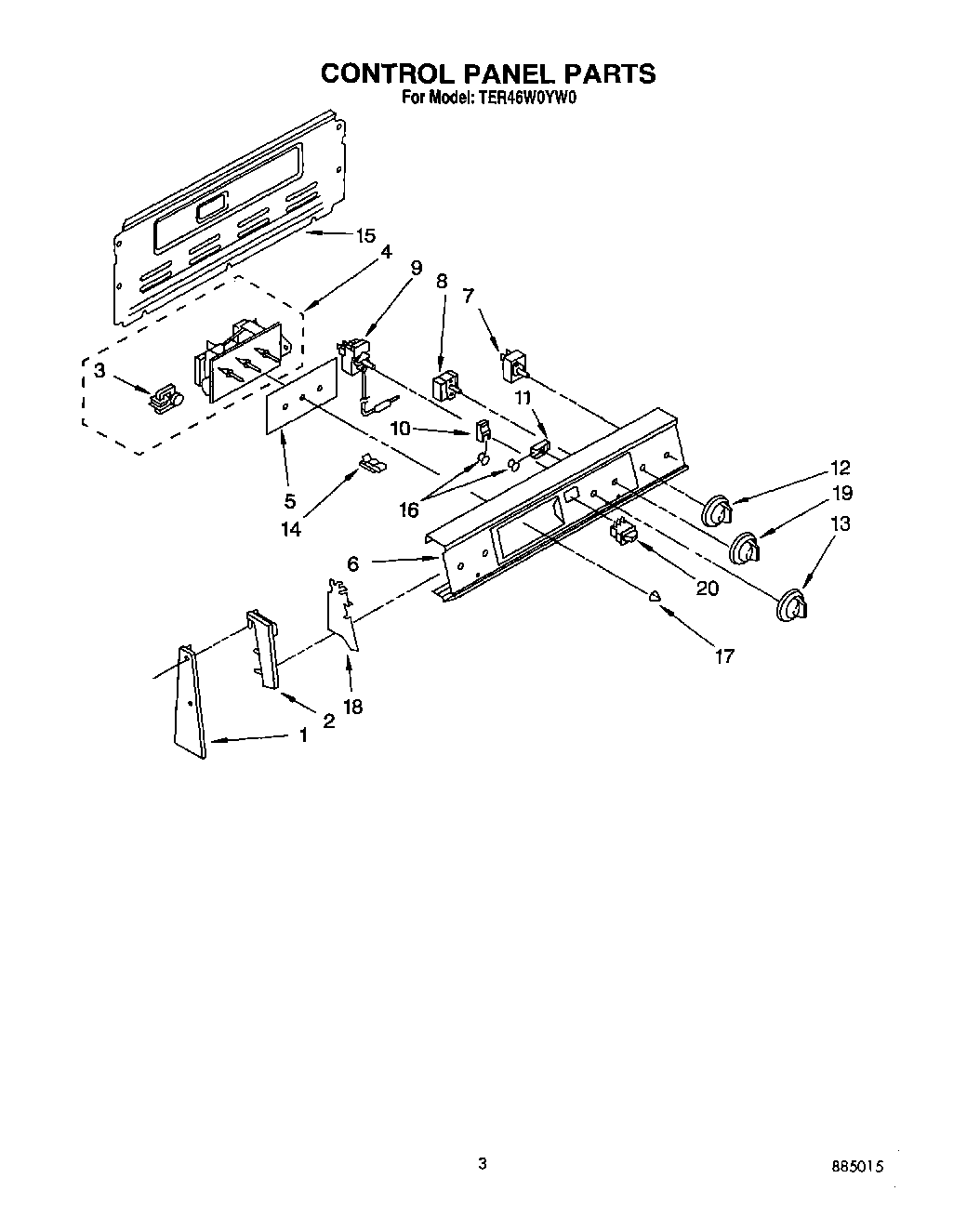

TER46W0YW0 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap, R.H. (White/Almond/Gold)
2End Cap, R.H. (White/Almond/Gold)
2Screw,
3Motor, Timer
4Timer, Control
5Glass, Timer
6Panel, Control
6Washer
7WP486579 Whirlpool Air Conditioner Screw
7WP3149404 Whirlpool Oven Surface Element Switch
7WP3149400 Whirlpool Oven Infinite Switch
8Switch, Selector
9Thermostat, Oven
9WP313808 Whirlpool Screw
10Light, Indicator (Includes No. 12) (Surface Unit On)
11Light, Indicator (250V)
12WP3149983 Whirlpool Knob
13Knob, Thermostat
14Clip, Tube
15SCREW
15Harness-Conduit Asm.
16Lens, Amber
17WP3169181 Whirlpool Knob
18Shield (2)
18WP965173 Whirlpool Dishwasher Screw
19Knob, Selector
20WP4314961 Whirlpool Lite Switch
