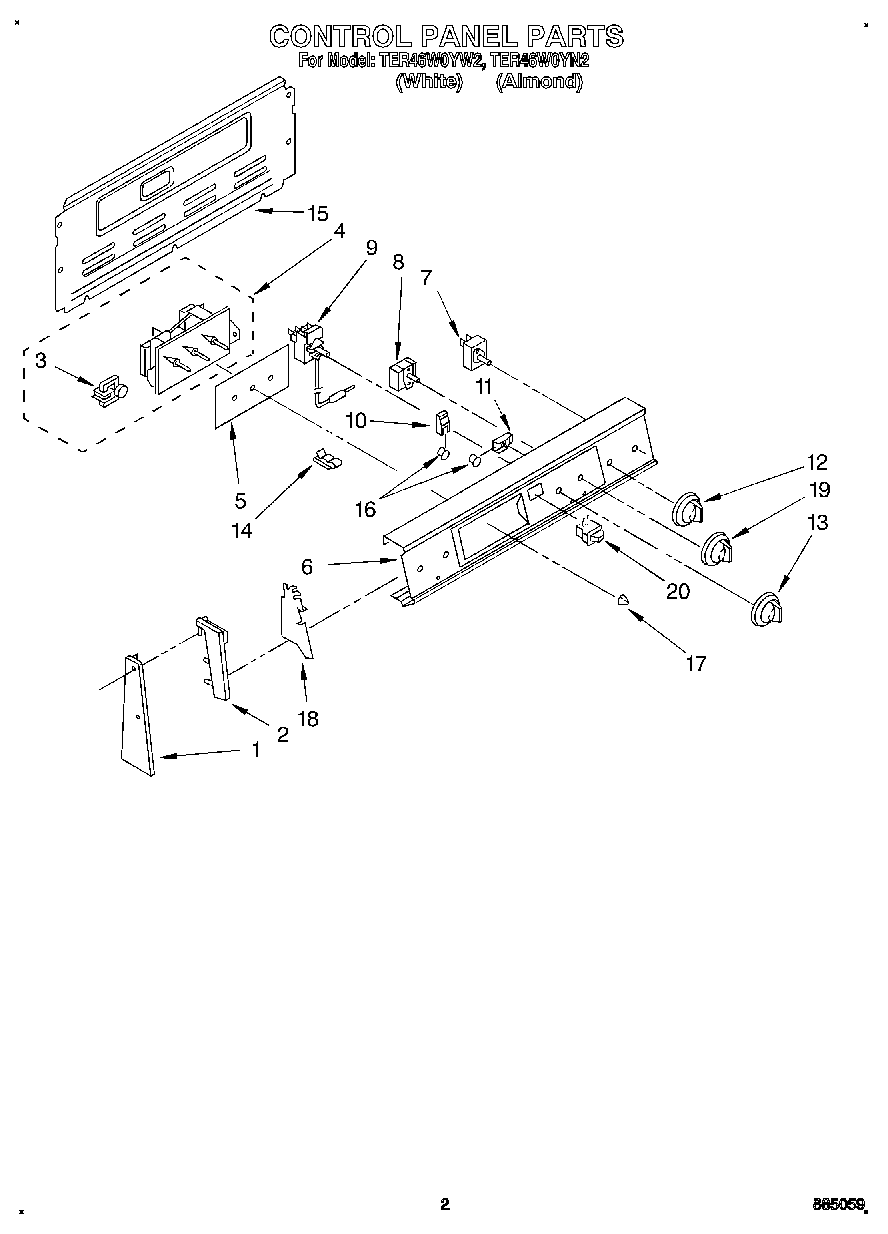

TER46W0YW2 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	Screw,
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
3	Motor, Timer
4	Timer, Control
5	Glass, Timer
6	Panel, Control
6	Washer
7	WP3149400 Whirlpool Oven Infinite Switch
7	WP3149404 Whirlpool Oven Surface Element Switch
7	Screw, 8-32 x 3/16 (2)
8	Switch, Selector
9	WP313808 Whirlpool Screw
9	Thermostat, Oven
10	Light, Indicator (Includes No. 12) (Surface Unit On)
11	Light, Indicator (250V)
12	WP3149983 Whirlpool Knob
13	Knob, Thermostat
14	Clip, Tube
15	Rear Cover Contr
15	SCREW
16	Lens, Amber
17	WP3169181 Whirlpool Knob
18	WP965173 Whirlpool Dishwasher Screw
18	Shield (2)
19	Knob, Selector
20	WP4314961 Whirlpool Lite Switch
