TER46W0YW2 04 – UNIT

TER46W0YW2 04 – UNIT

Written by

in

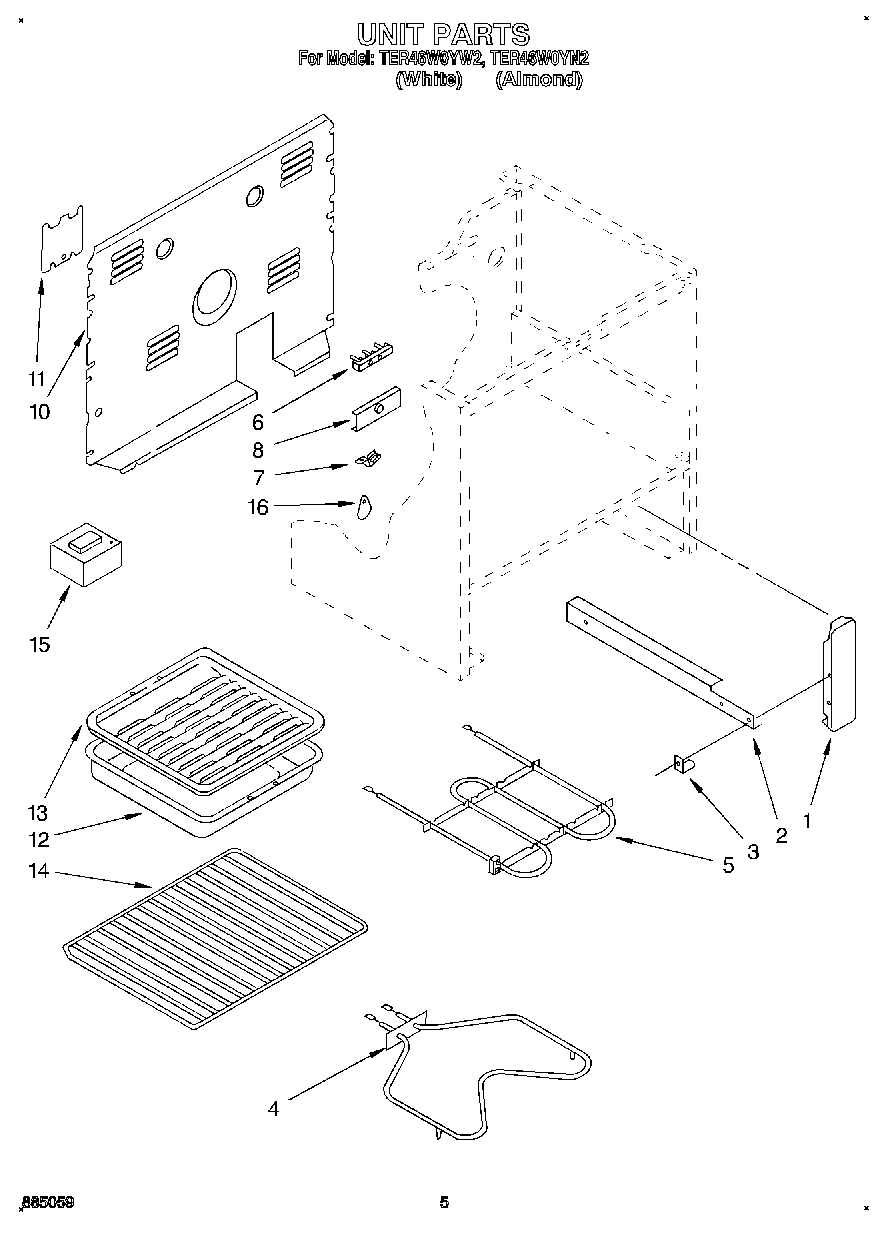

TER46W0YW2 04 – UNIT

Products

PositionProduct
1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
3Screw, 10A x 1/2 (2) (Black)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11Cover, Service
11SCREW
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15340184 Whirlpool Screw
15Block, Balance
16WPL 311982
16WPL 3169093
16WPL 3169094
168273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
16Screw (2)
