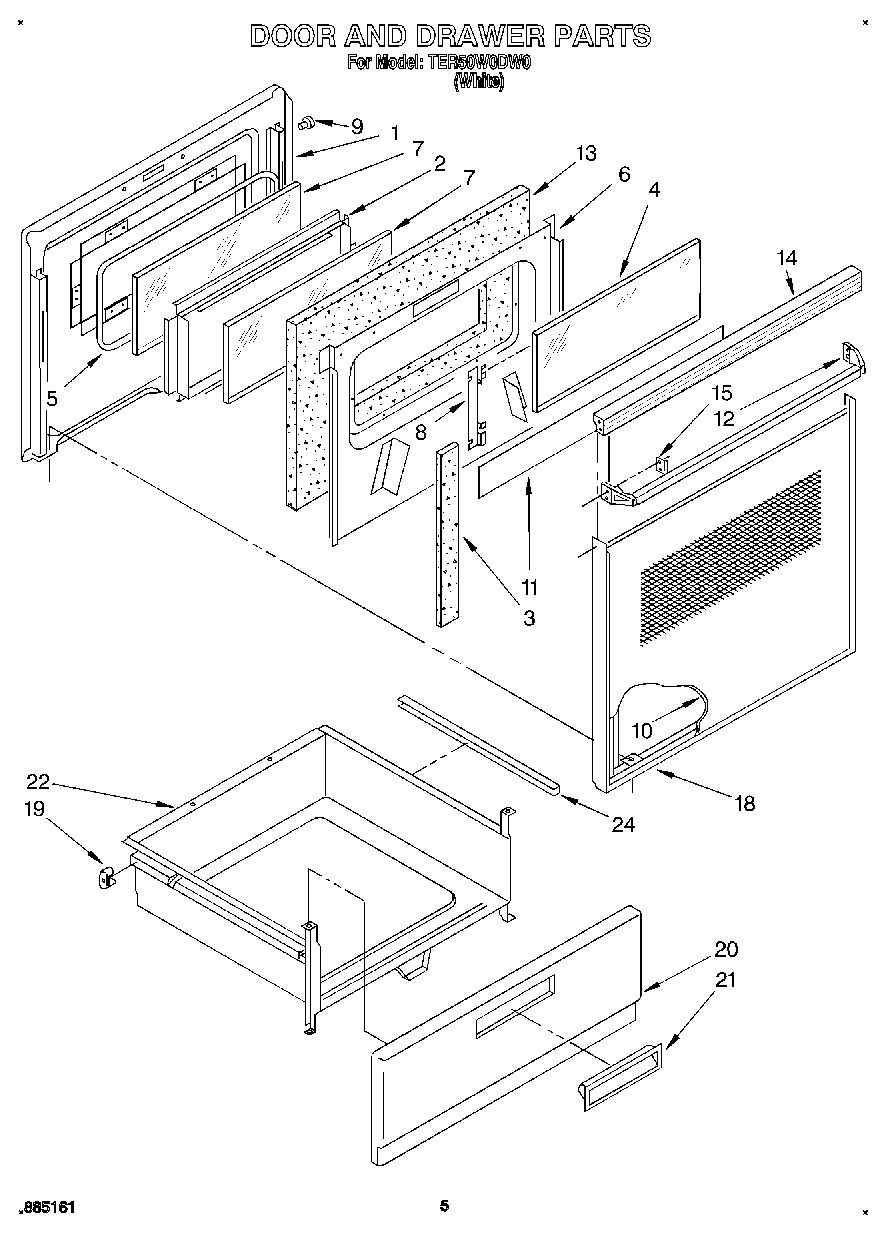

TER50W0DW0 04 – DOOR AND DRAWERadmin2025-04-26T11:22:07+00:00TER50W0DW0 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | Frame, Inner |
| 3 | Seal, Flange (2) |
| 4 | Glass, Clear |
| 5 | Seal, Door |
| 6 | Screw |
| 6 | Retainer, |
| 7 | WP3169203 Whirlpool Door Glass |
| 8 | Retainer, Glass (2) |
| 8 | Screw |
| 9 | Bumper (4) |
| 10 | Glass Panel, Outer (Black) |
| 11 | Foil, Door |
| 12 | Handle, Door (Black) |
| 12 | WP999367 Whirlpool Refrigerator Screw |
| 13 | Insulation, Door |
| 14 | Top, Door Frame (Black) |
| 15 | Clip, Mtg (2) |
| 18 | Back Splash (Screw (4) 10AB x 1/2``) |
| 18 | Frame, Door (Black) |
| 18 | Handle, Door (Screw (4)) |
| 19 | Glide, Rear (2) |
| 20 | Panel, Drawer (White) |
| 20 | WP488627 Whirlpool Refrigerator Screw |
| 21 | Handle, Snap-In (White) |
| 22 | Drawer, Utility |
| 24 | Protector, Drawer (2) |
