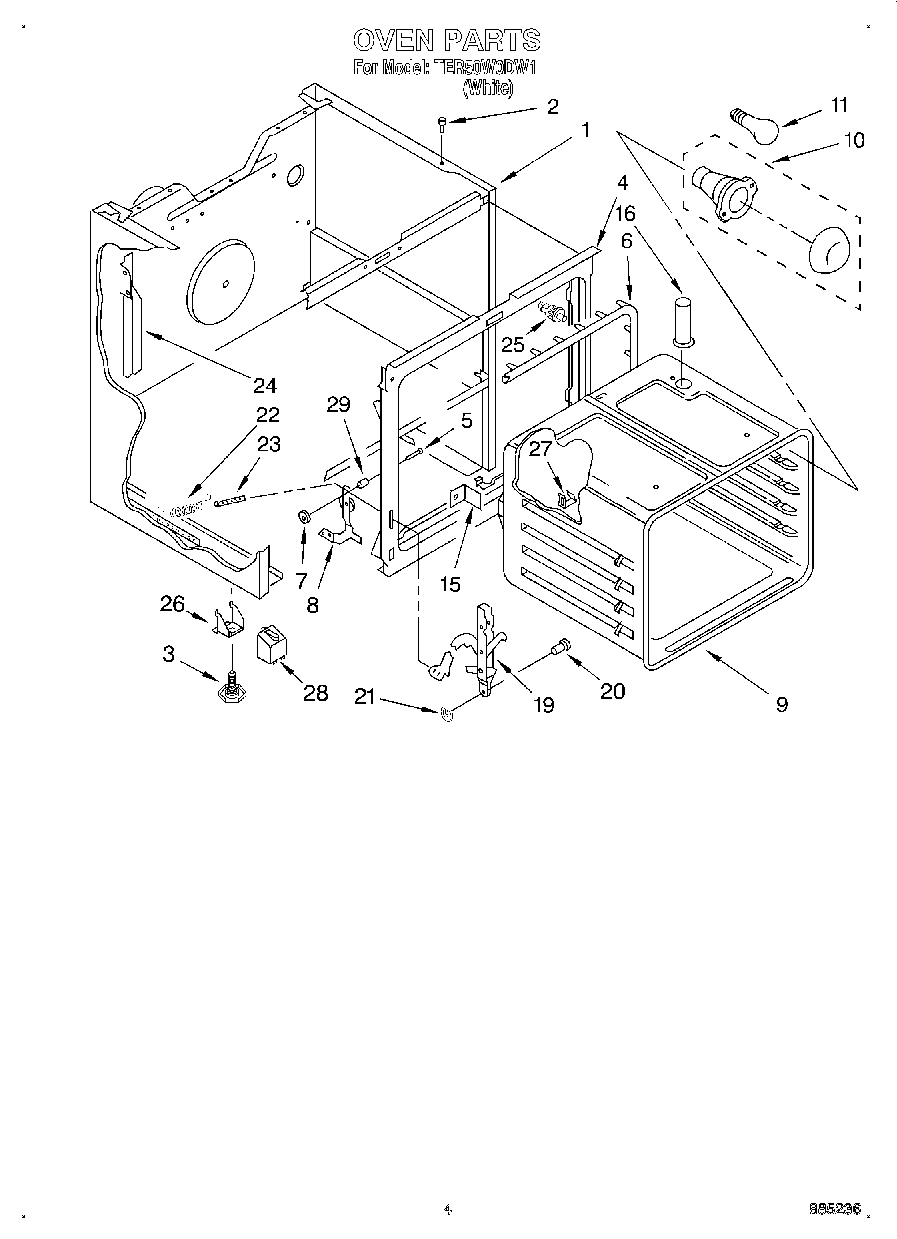

TER50W0DW1 03 – OVEN

Products

Position	Product
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	Leg Leveling (4)
4	Front Frame
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Oven (30“ Pyro)
9	Screw (3)
9	Screw (Top)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	9755804 Whirlpool Oven Vent Tube
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
25	Switch, Door
26	Support, Foot (2)
26	SCREW
27	98005642 Whirlpool Clip
28	Cover, Foot (2)
29	WPL 3169094
29	WPL 3169093
29	Snubber, Door (2)
29	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
