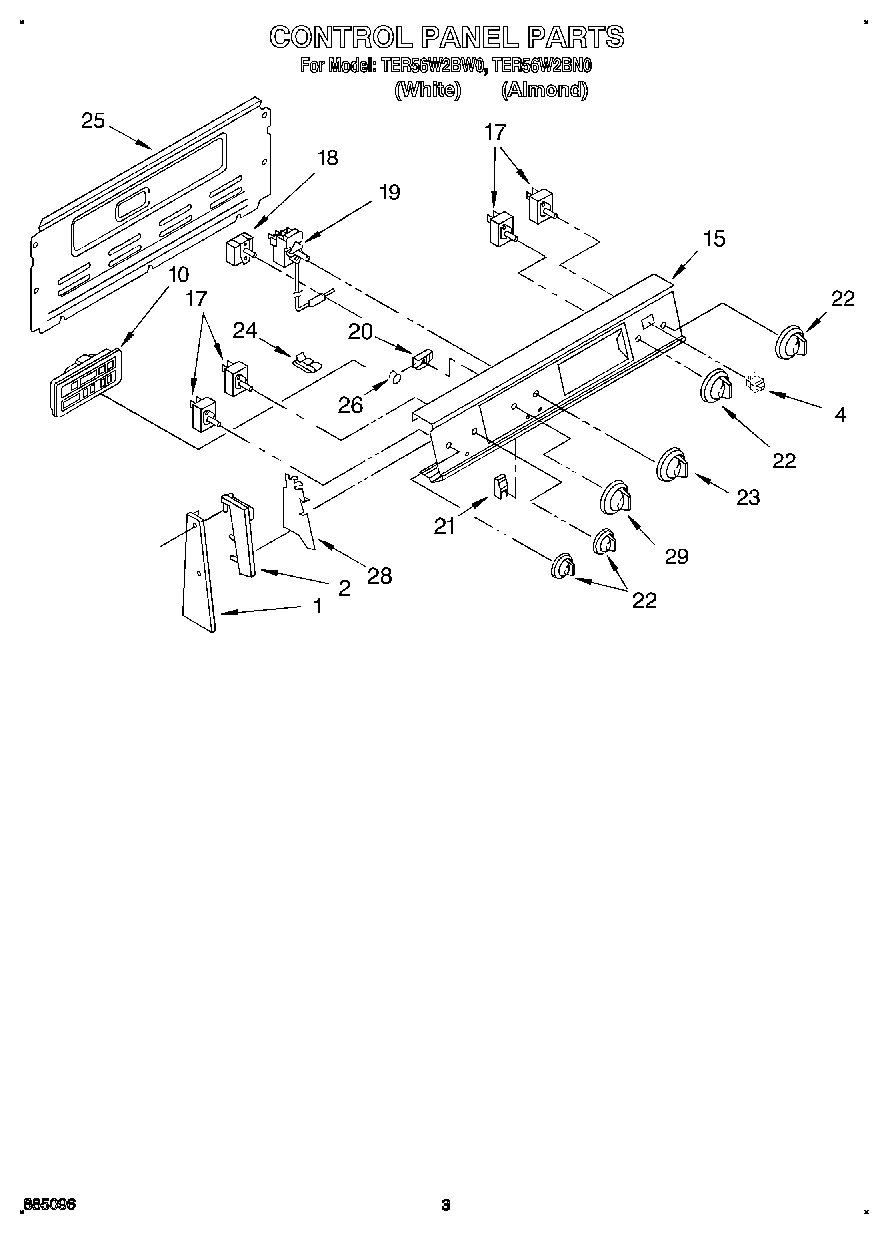

TER56W2BW0 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
4	3149360 Whirlpool Light Switch
4	Switch, Rocker
10	Timer, Digital
15	Washer
15	Panel, Control
17	WP3149404 Whirlpool Oven Surface Element Switch
17	Screw, 8-32 x 3/16 (2)
17	WP3149400 Whirlpool Oven Infinite Switch
18	Switch, Selector
19	Thermostat, 0ven Pyro
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator
22	Knob, (4) Infinite Switch (White/Almond/Gold)
23	Knob, Temp
23	Designer White Mdl
24	Clip, Tube
25	Rear Cover Contr
25	SCREW
26	Lens, Amber
28	WP965173 Whirlpool Dishwasher Screw
28	Shield (2)
29	Knob (Selector)
