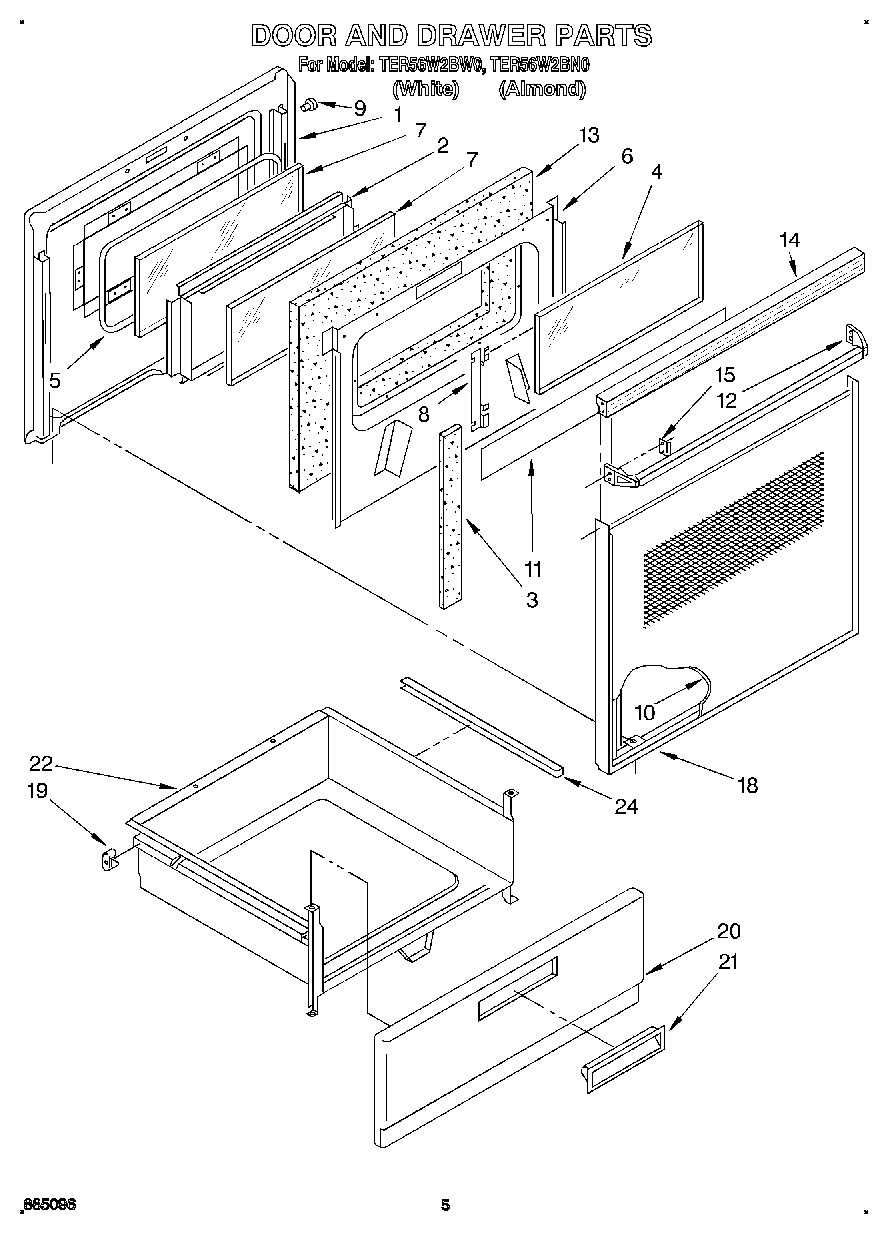

TER56W2BW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Screw
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
13	Insulation, Door
14	Top, Door (Black Model)
14	WP308685 Whirlpool Microwave Screw
15	Clip, Mtg (2)
18	Frame, Door
18	Screw, 10A x 1/2 (2) (Black)
18	WP355515 Whirlpool Screw
19	Glide, Rear (2)
20	Panel, Drawer (Almond)
20	Panel, Drawer (White)
20	WP488627 Whirlpool Refrigerator Screw
21	Handle, Snap-In (White)
21	Handle, Snap-In (Almond)
22	Drawer, Utility
24	Protector, Drawer (2)
