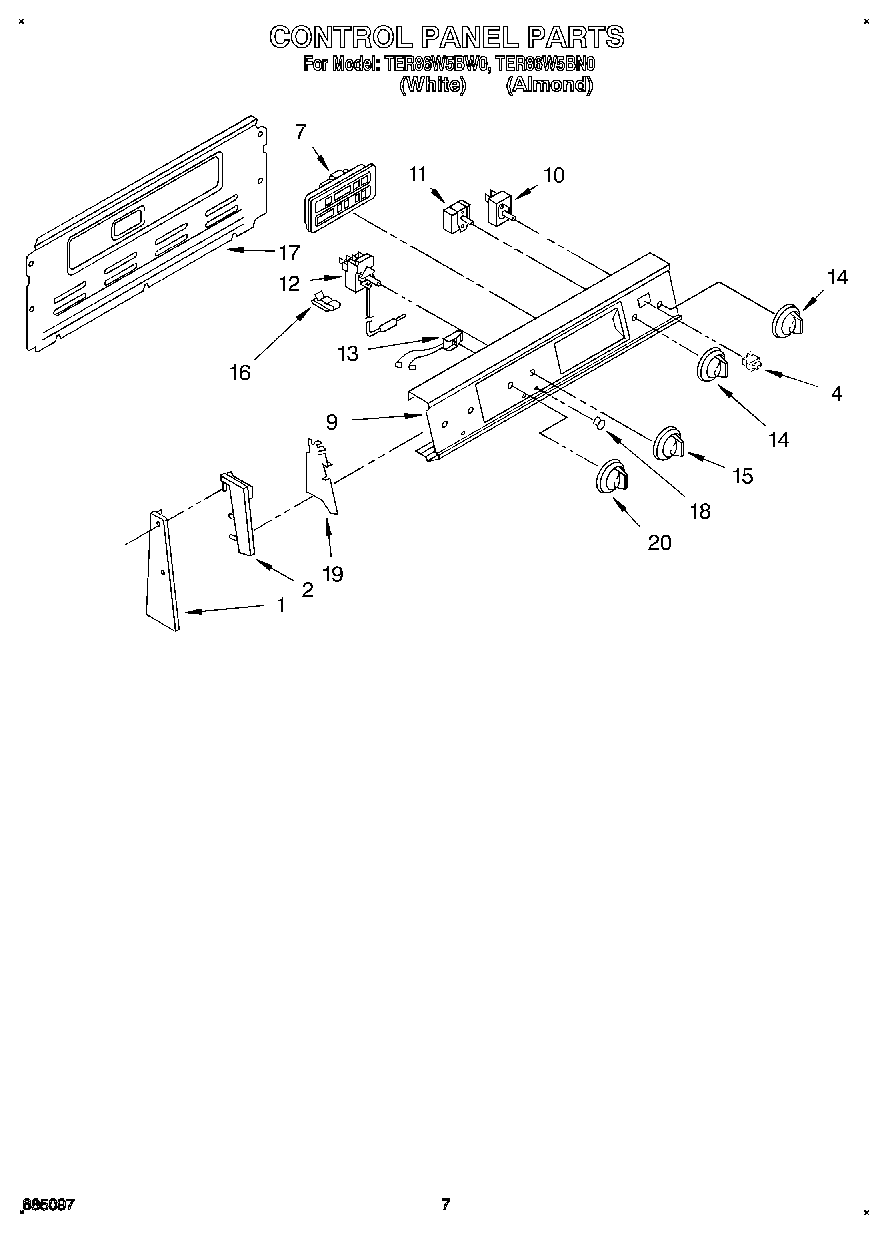

TER86W5BN0 04 – CONTROL PANEL

Products

PositionProduct
1End Trim R.H.
1End Trim L.H.
2End Cap, R.H. (White/Almond/Gold)
2End Cap, R.H. (White/Almond/Gold)
2Screw,
4Switch, Rocker
7Timer, Digital
8Panel, Control
8Washer
10Screw, 8-32 x 3/16 (2)
10WP3149400 Whirlpool Oven Infinite Switch
10WP3149404 Whirlpool Oven Surface Element Switch
11Switch, Selector
12Thermostat, 0ven Pyro
12WP313808 Whirlpool Screw
13Indicator Light (1)
13Light, Indicator
13Light, Indicator (Hot Surface (1))
13Light, Indicator (250V)
14Knob, (4) Infinite Switch (White/Almond/Gold)
15Knob, Temp
16Clip, Tube
17SCREW
17Rear Cover Contr
18Lens, Amber
19Shield (2)
19WP965173 Whirlpool Dishwasher Screw
20Knob (Selector)
