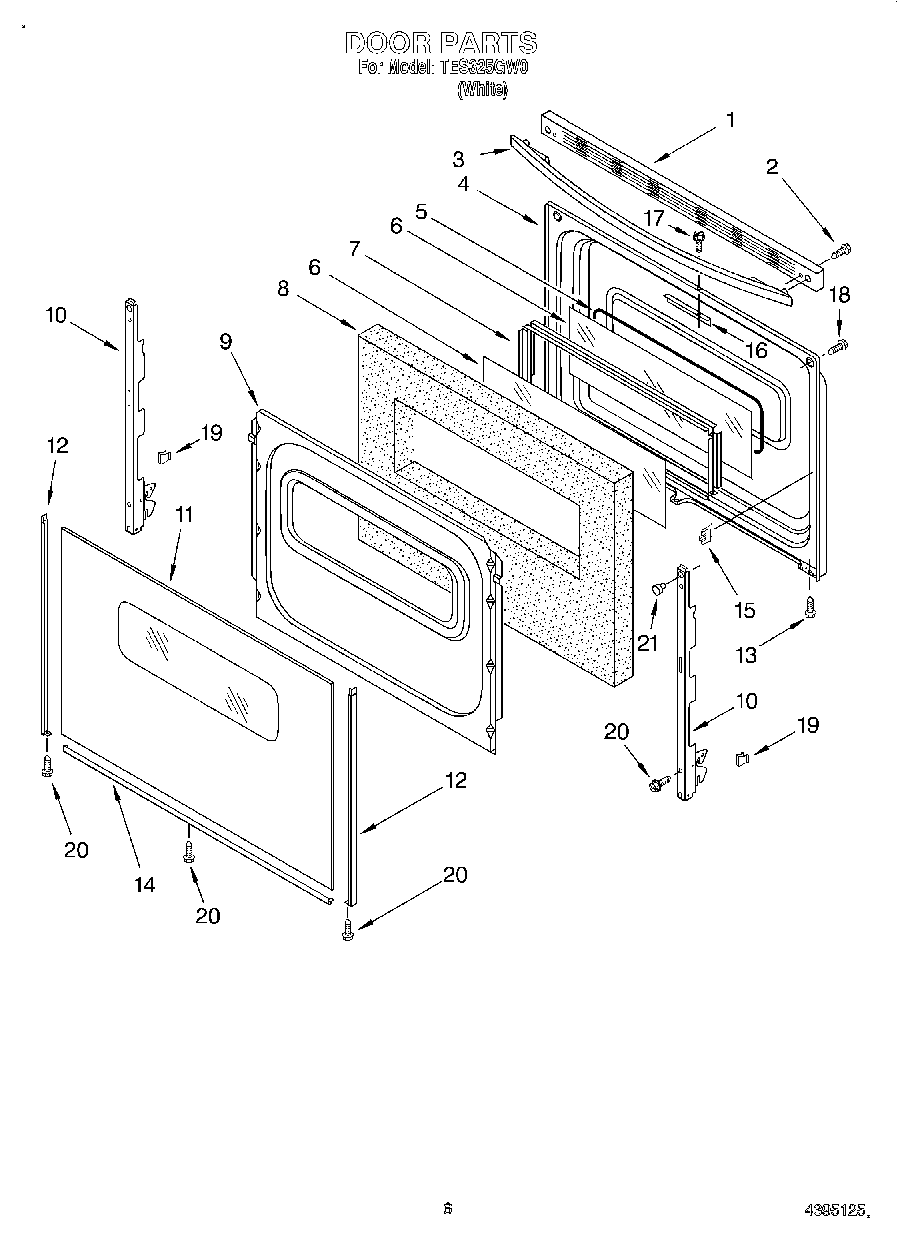

TES325GW0 05 – DOOR, LIT/OPTIONAL

TES325GW0 05 – DOOR, LIT/OPTIONAL

Written by

in

TES325GW0 05 – DOOR, LIT/OPTIONAL

Products

PositionProduct
W11396691 Whirlpool Element Receptacle and Wire Kit
Harness, Wire (Door Switch)
Literature (Installation, Instructions (Template))
WP3196154 Whirlpool Screw Assembly
Literature Parts (Tech Sheet)
3196696 Whirlpool Clip
Literature (Instruction, Installation)
WPL 3196697
WPL 8053623
3184020 Whirlpool Oven Wire
Clip, Ground Wire
W11244557 Whirlpool Screw
814381 Whirlpool Pin
3400964 Whirlpool Oven Clip
Safer Cooking Tips
WPL LIT8053405
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4Liner, Door
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8Insulation, Door
99761499 Whirlpool Oven Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP9762477 Whirlpool Glass Door
13W10491985 Whirlpool Screw
148184858 Whirlpool Door Trim
15Clip, Glass (4)
16Bracket, Latch
17WP3400832 Whirlpool Screw
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
21Wire (12 Ga. 150 c Black)
211
21Wire (14 Ga. 200 c Brown)
2118 Ga. 80~c Rating (Red)
218212471 Whirlpool Oven Paint
21Grease
218273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
2172113 Whirlpool Touch-Up Paint
21Wire (14 Ga. 150 c Yellow)
21Wire (14 Ga. 150 c Orange)
21511873 Whirlpool Refrigerator Paint
21350942 Whirlpool Spray Paint
21WPL 72112
21Platinum (Uncut)
21Enamal, Toast (1 Qt. Uncut)
21Paint, Spray (13 Oz.) (Platinum)
21Toast
21Golden Harvest (Uncut)
21Golden Harvest
2172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
21Almond (Uncut)
21WP72107 Whirlpool Touchup
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21350956 Whirlpool Spray Assembly
21WPL 799832
21238614 Whirlpool Bumper Hinge
21Wire (14 Ga. 150 c Green)
21Wire (14 Ga. 150 c Brown)
21Wire (14 Ga. 150 c Blue)
21242831 Whirlpool Oven Wire
21W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21Paint, Spray 13 Oz. (Avocado)
21paint, spray 13 oz. (coffee)
21Paint, Touch-Up 1/2 Oz. (Coffee)
2172109 Whirlpool Dacor Avocado Touch-Up Paint
21285006 Whirlpool Spray
21Wire, 25“ Roll (White 14 GA.)
21Wire, 25` Roll (Red 14 Ga.)
21Wire, 25` Roll (Black 14 Ga.)
21FOIL, ALUMINUM OVEN (18“ X 25 )
21WPW10208653 Whirlpool Insulation
21350930 Whirlpool White Spray Paint
