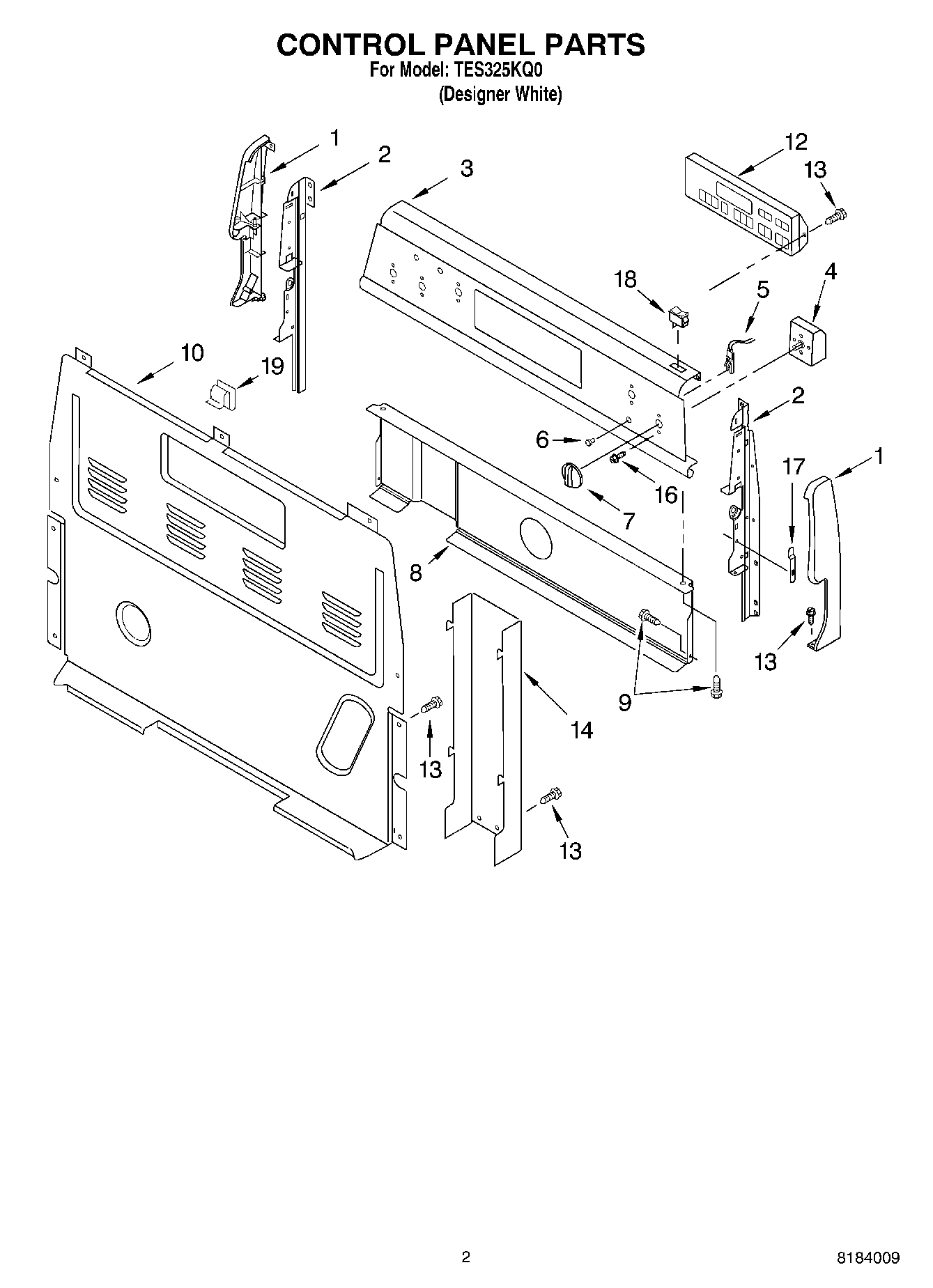

TES325KQ0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (White)
4	SWITCH-INF
4	WP3149404 Whirlpool Oven Surface Element Switch
5	Light, Indicator (Surface Unit (2))
6	WP3196068 Whirlpool Light Lens
7	WP3196232 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
12	Control, Range
13	SCREW
14	WPW10326122 Whirlpool Black Cover
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
18	3149360 Whirlpool Light Switch
19	WP8273564 Whirlpool Clip
