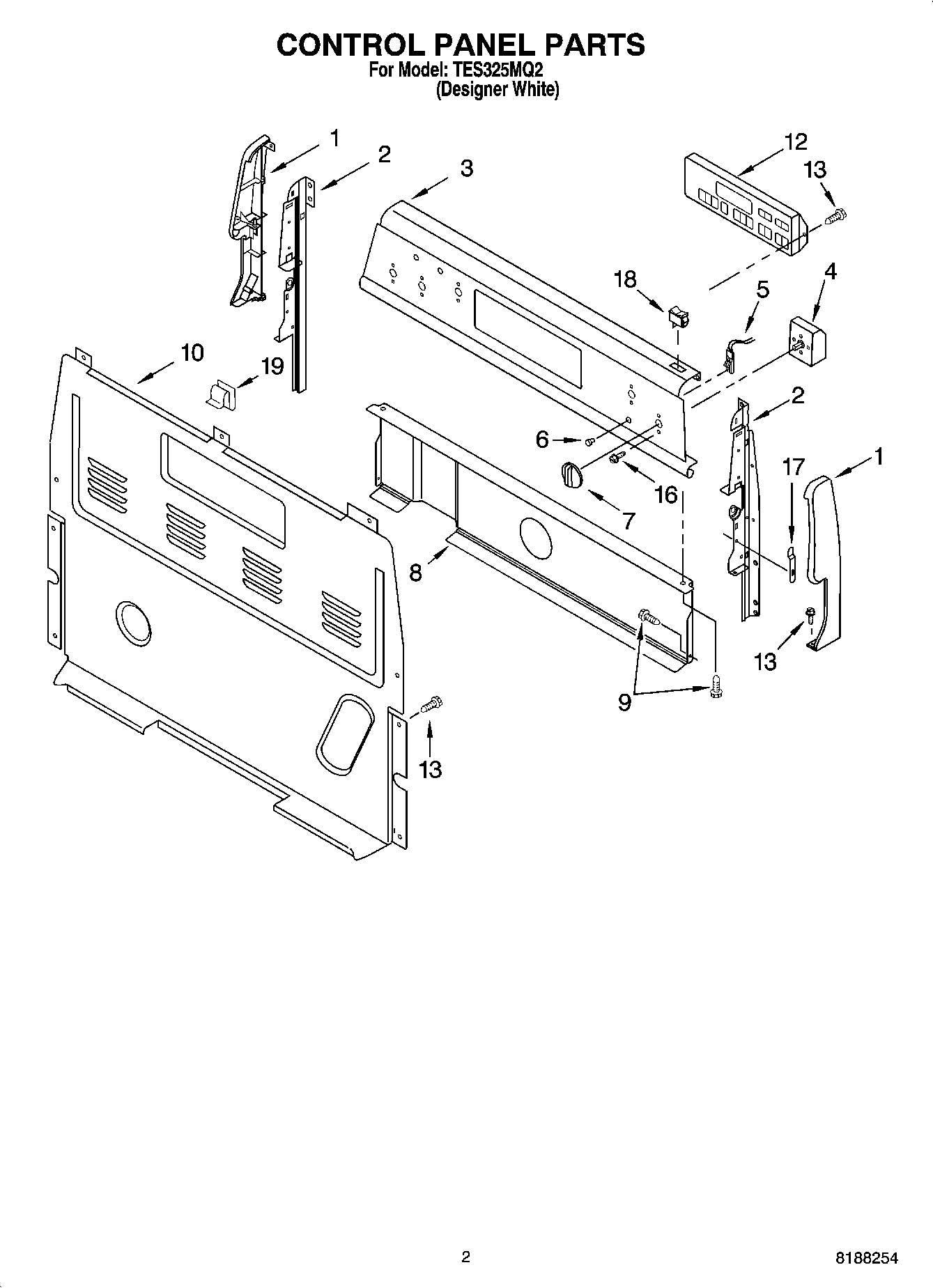

TES325MQ2 02 – CONTROL PANEL PARTS

TES325MQ2 02 – CONTROL PANEL PARTS

Written by

in

TES325MQ2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range (White)
13SCREW
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
183149360 Whirlpool Light Switch
19WP8273564 Whirlpool Clip
