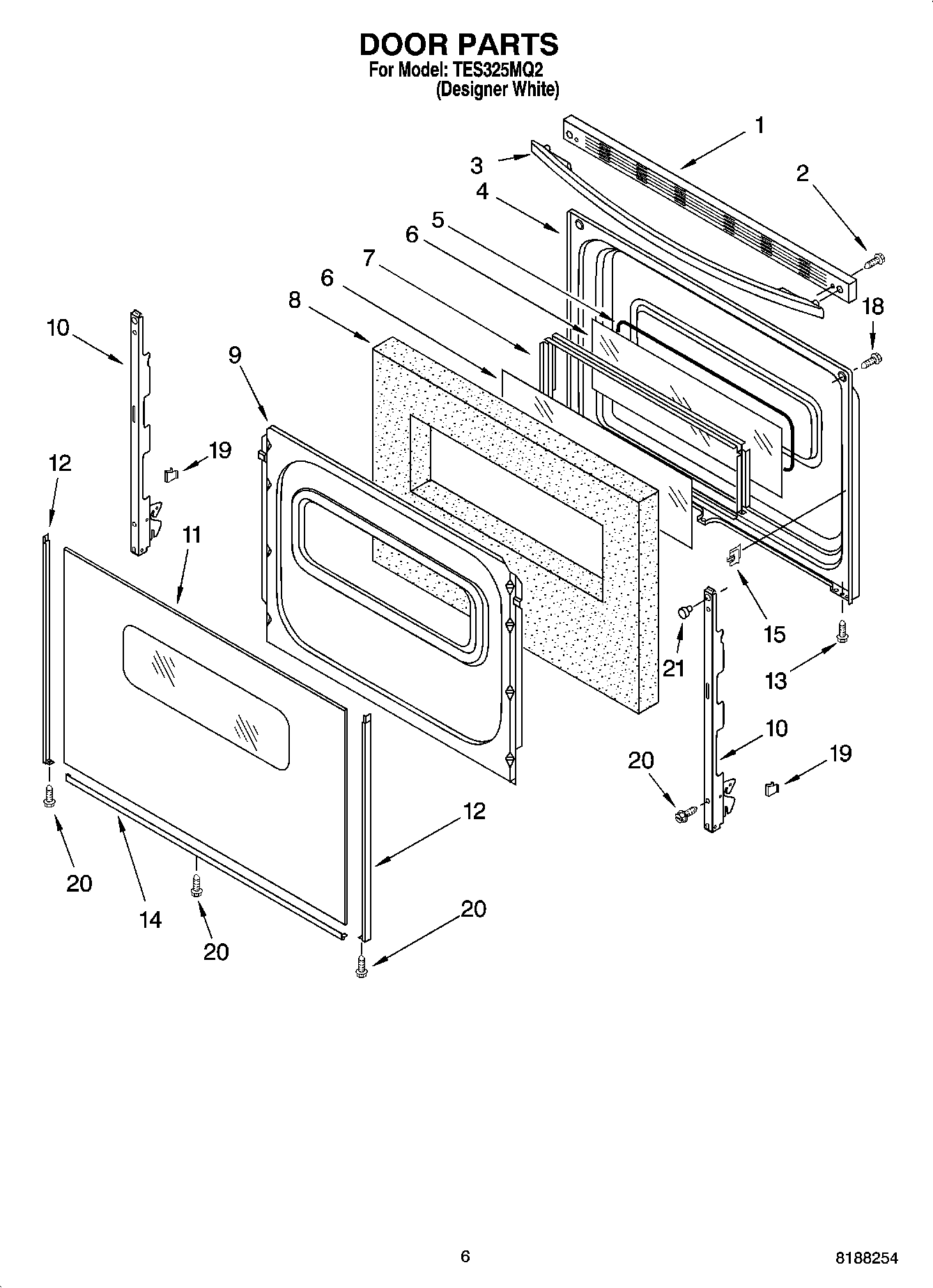

TES325MQ2 05 – DOOR PARTS, OPTIONAL PARTS

TES325MQ2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

TES325MQ2 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI131132A
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	3184020 Whirlpool Oven Wire
	WP3196154 Whirlpool Screw Assembly
	WPL ARI131131A
	WPL ARI131130A
	WPL ARI131129A
	WPL ARI131128A
	WPL ARI131127A
	WPL ARI131126A
	WPL 9758173
	Harness, Wire (Pyro Rocker)
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL ARI131133A
	Clip, Ground Wire
	Grease
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	350942 Whirlpool Spray Paint
	WPW10208653 Whirlpool Insulation
	Almond (Uncut)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPL 799832
	WP72107 Whirlpool Touchup
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	799344 Whirlpool Refrigerator Paint
	W11447673 Whirlpool Range Tip Anchor
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	511873 Whirlpool Refrigerator Paint
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP9762476 Whirlpool Door Glass
12	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	238614 Whirlpool Bumper Hinge
