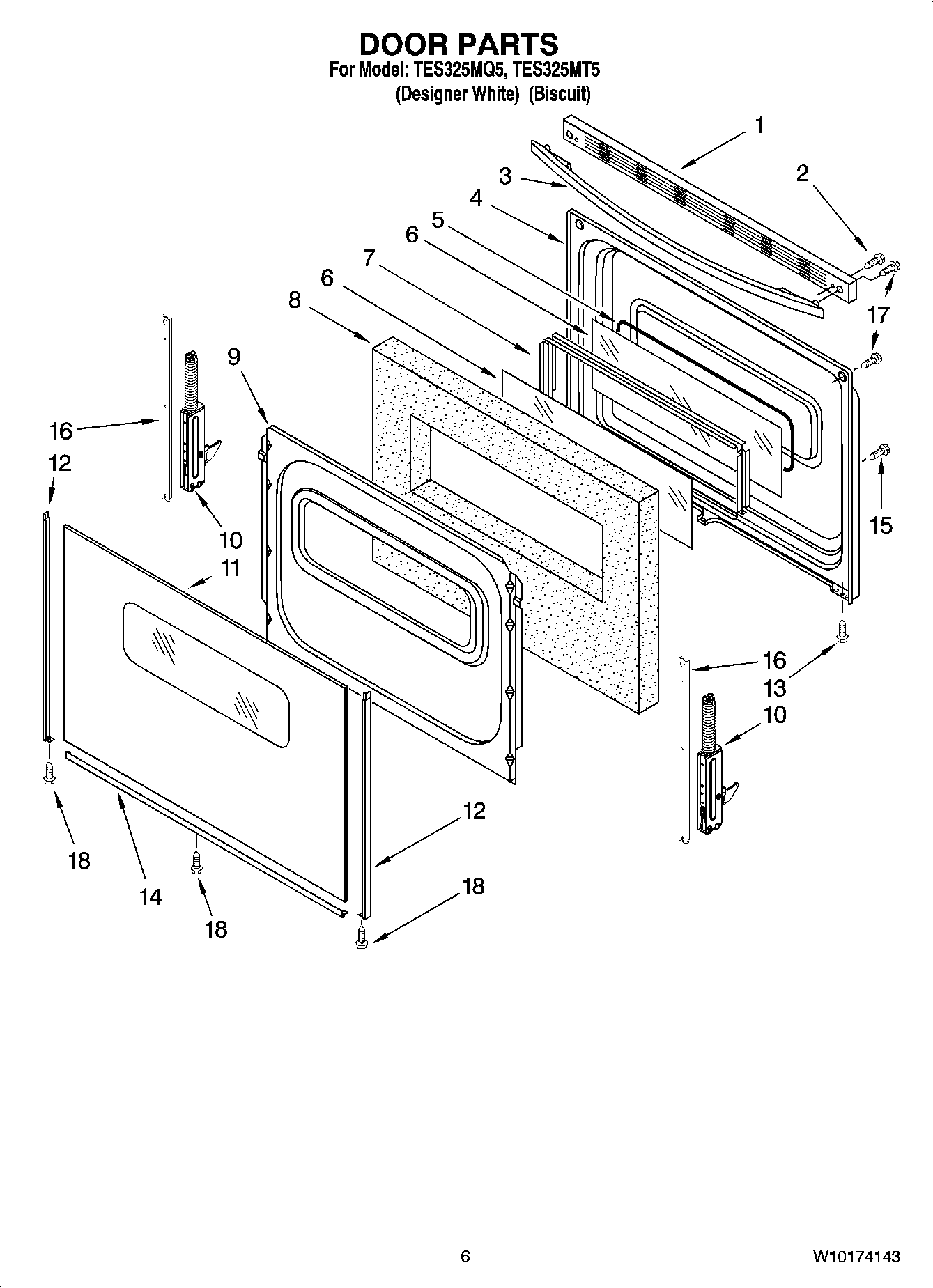

TES325MQ5 05 – DOOR PARTS, OPTIONAL PARTS

TES325MQ5 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

TES325MQ5 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI131158A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
3184020 Whirlpool Oven Wire
Grease
WPL ARI131157A
WPL ARI131156A
WPL ARI131155A
WPL ARI131154A
WPL ARI131153A
WPL 9758173
Harness, Wire (Pyro Rocker)
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI131159A
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
285006 Whirlpool Spray
FOIL, ALUMINUM OVEN (18“ X 25 )
4396923 Whirlpool Broil Pan Set Gray Porcelain
Wire, 25` Roll (Red 14 Ga.)
WPL 799832
511873 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
350942 Whirlpool Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Almond (Uncut)
W11447673 Whirlpool Range Tip Anchor
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
WPW10208653 Whirlpool Insulation
1Trim, Top (Biscuit)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
3Handle, Door (Biscuit)
49761340 Whirlpool Oven Door Liner
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8WPW10278991 Whirlpool Insulation
99761499 Whirlpool Oven Retainer
10W10347466 Whirlpool Door Hinge
11Glass, Outer (Biscuit)
11WP9762476 Whirlpool Door Glass
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523178 Whirlpool Door Trim
14WP8523175 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16W11502236 Whirlpool Door Trim
17W10777162 Whirlpool Screw
18WP3196175 Whirlpool Screw
