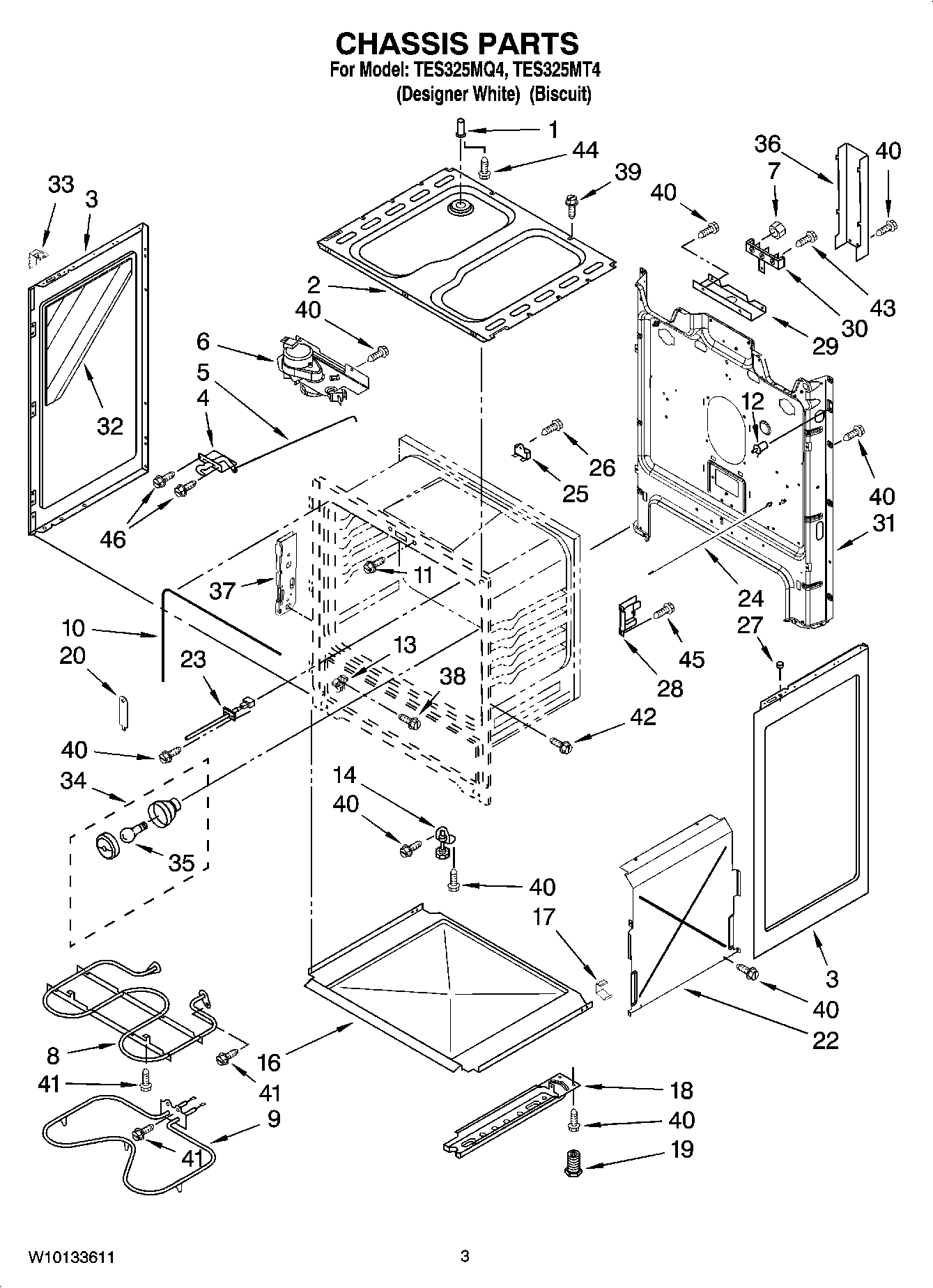

TES325MT4 03 – CHASSIS PARTS

Products

Position	Product
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
3	W10162246 Whirlpool Side Panel
4	WP9761013 Whirlpool Door Latch
5	Rod, Latch
6	WPW10107830 Whirlpool Stove Door Lock Latch Assembly
7	WP112432 Whirlpool Nut Assembly
8	W10856603 Whirlpool Broil Element
9	WPW10308477 Whirlpool Bake Element
10	W11542153 Whirlpool Door Gasket
11	W10877054 Whirlpool Spacer Assembly
12	W11243424 Whirlpool Light Switch
13	WPW10114344 Whirlpool Drawer Glide
14	WP3196037 Whirlpool Leveling Foot
16	WP8054068 Whirlpool Retainer
17	Clip, Panel (6)
18	WPW10306546 Whirlpool Base Rail
19	WPW10058460 Whirlpool Appliance Levelling Leg
20	9761517 Whirlpool Oven Clip Assembly
22	W10450380 Whirlpool Retainer
23	WPW10181986 Whirlpool Oven Sensor
24	9757239 Whirlpool Oven Door Rod
25	WP3196548 Whirlpool Thermal Fuse
26	3196172 Whirlpool Oven Screw
27	238614 Whirlpool Bumper Hinge
28	W10404688 Whirlpool Bracket Support
29	W11728255 Whirlpool Service Bracket
30	WP9761958 Whirlpool Range Terminal Block
31	Back, Main
32	Insulation
33	Clip, Mounting
34	W11594027 Whirlpool Range Oven Light Socket
35	RANGE ONLY 40W 120V APPL BULB
36	WPW10326122 Whirlpool Black Cover
37	W10647259 Whirlpool Hinge Receiver
38	WP3196175 Whirlpool Screw
39	WP3400832 Whirlpool Screw
40	SCREW
41	WP3196174 Whirlpool Screw
42	WPW10067840 Whirlpool Screw
43	WP3400016 Whirlpool Screw Assembly
44	WP3196567 Whirlpool Screw
45	WP3196557 Whirlpool Screw
46	W11169708 Whirlpool Screw
46	WP8272612 Whirlpool Insulation
46	WPW10208653 Whirlpool Insulation
46	Insulation
