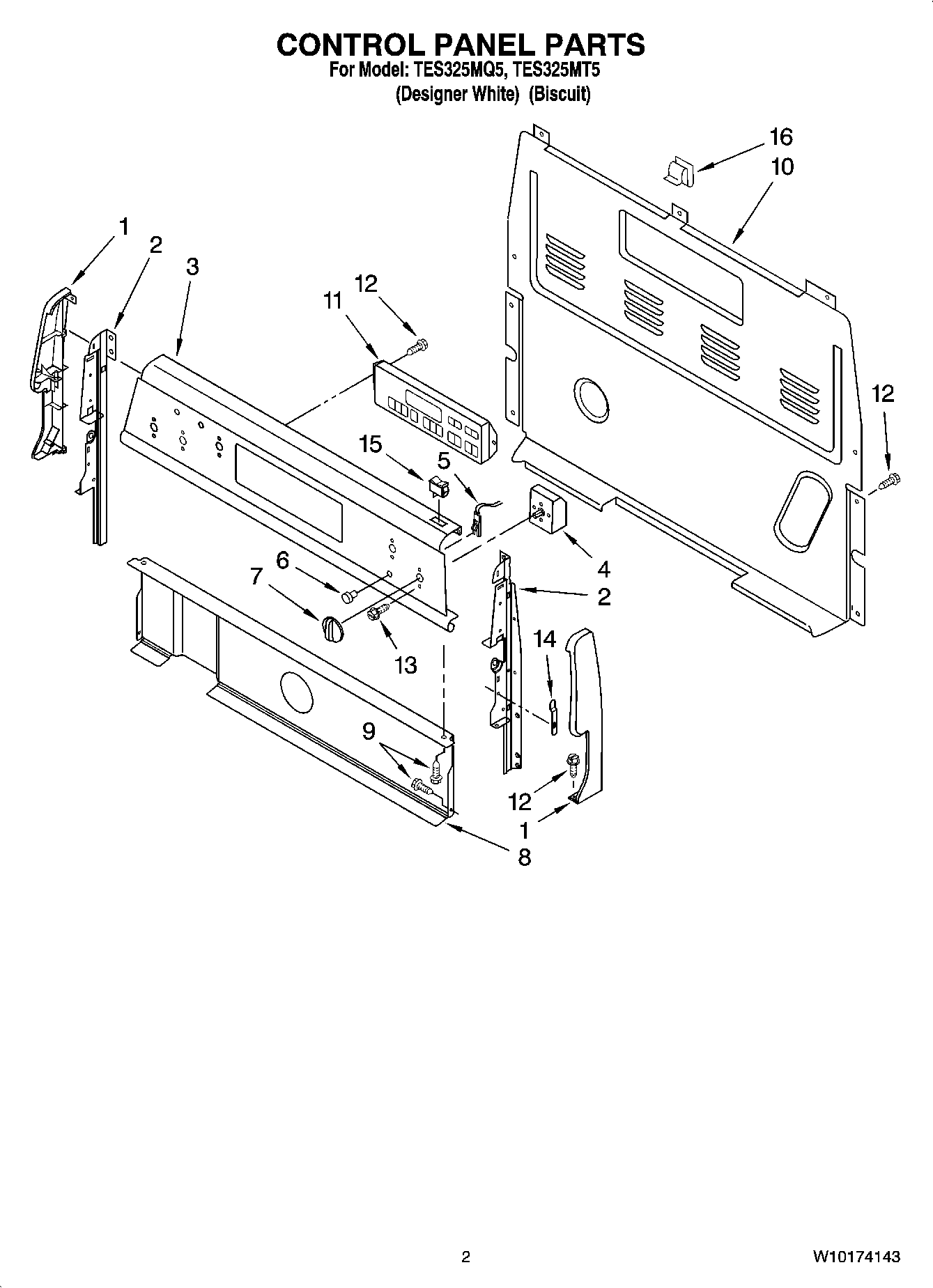

TES325MT5 02 – CONTROL PANEL PARTS

TES325MT5 02 – CONTROL PANEL PARTS

Written by

in

TES325MT5 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Console (White)
3Panel, Console (Biscuit)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP3196232 Whirlpool Knob
7WP3196231 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Control, Range (White)
11Control, Range (Biscuit)
12SCREW
13WP3400882 Whirlpool Screw
143196200 Whirlpool Clip
15Switch, Rocker (Biscuit)
153149360 Whirlpool Light Switch
16WP8273564 Whirlpool Clip
